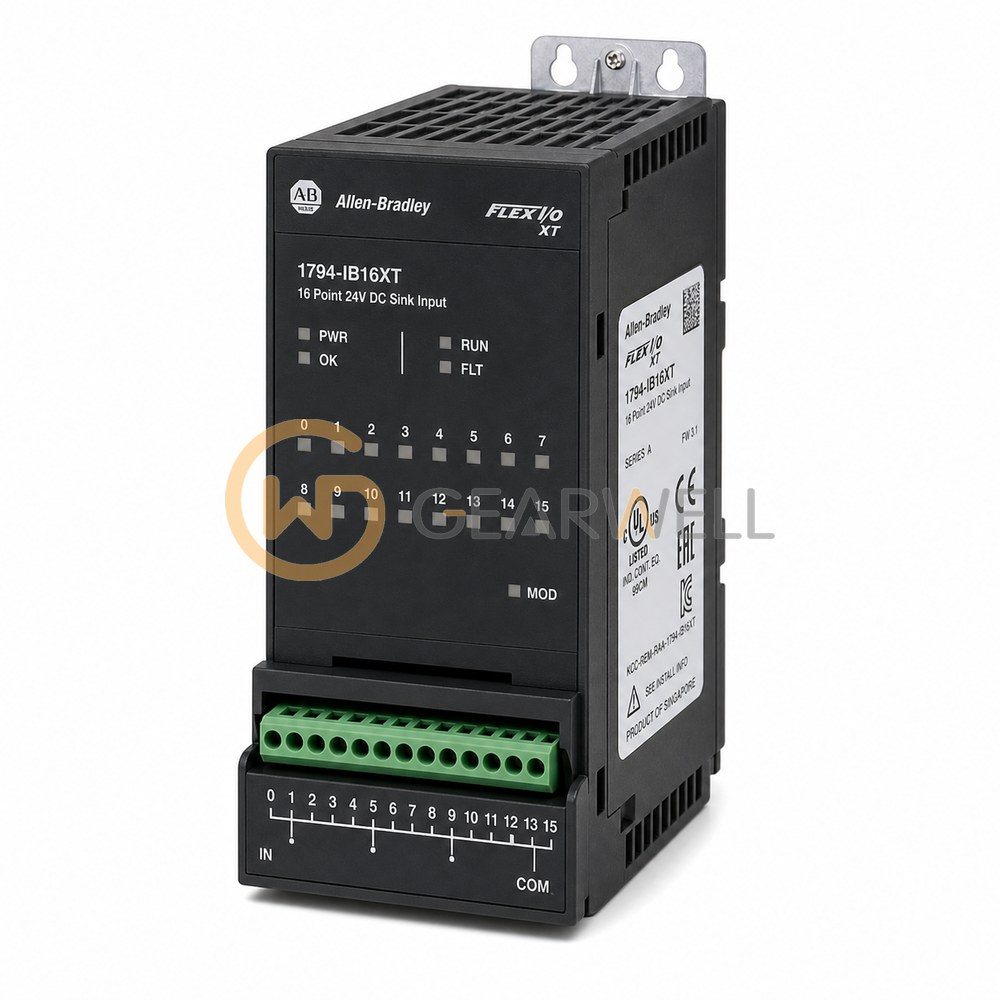

Allen-Bradley 1794-IB16XT FLEX I/O-XT 16-Point DC Input Module
- Brand
- Allen-Bradley
- Model
- 1794-IB16XT
- GEARWELL SKU
- GWP-000003993
- Category
- PLCs & I/O
Key specifications
- Nominal supply voltage
- 24 V DC
- Product type
- FLEX I/O-XT sixteen-point DC input module
- On-state input current
- 2 mA minimum; 3 mA nominal at 24 V DC; 4 mA maximum.
- On-state input voltage
- 24 V DC nominal; 10…31.2 V DC.
- Digital inputs
- 16 nonisolated sinking inputs in one group.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-IB16XT is the extended temperature version of the 1794-IB16 FLEX I/O module, with 16 nonisolated sinking 24V DC inputs and an on-state input voltage of 10…31.2V DC. It mounts on a 1794-TB3, 1794-TB3S, 1794-TB3K or 1794-TB3SK terminal base. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IB16XT FLEX I/O-XT 16-Point DC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794-IB16XT |
| Category | PLCs & I/O |
| Nominal supply voltage | 24 V DC |
| Product type | FLEX I/O-XT sixteen-point DC input module |
| On-state input current | 2 mA minimum; 3 mA nominal at 24 V DC; 4 mA maximum. |
| On-state input voltage | 24 V DC nominal; 10…31.2 V DC. |
| Digital inputs | 16 nonisolated sinking inputs in one group. |
| Compatible terminal bases | 1794-TB3 or 1794-TB3S. |
| Flexbus current | 30 mA |
| Manufacturer lifecycle status | Active Mature |
| Operating temperature | -20…70 °C (-4…158 °F) |
| Product description | Sixteen 24 V DC sinking inputs in one nonisolated group. |
