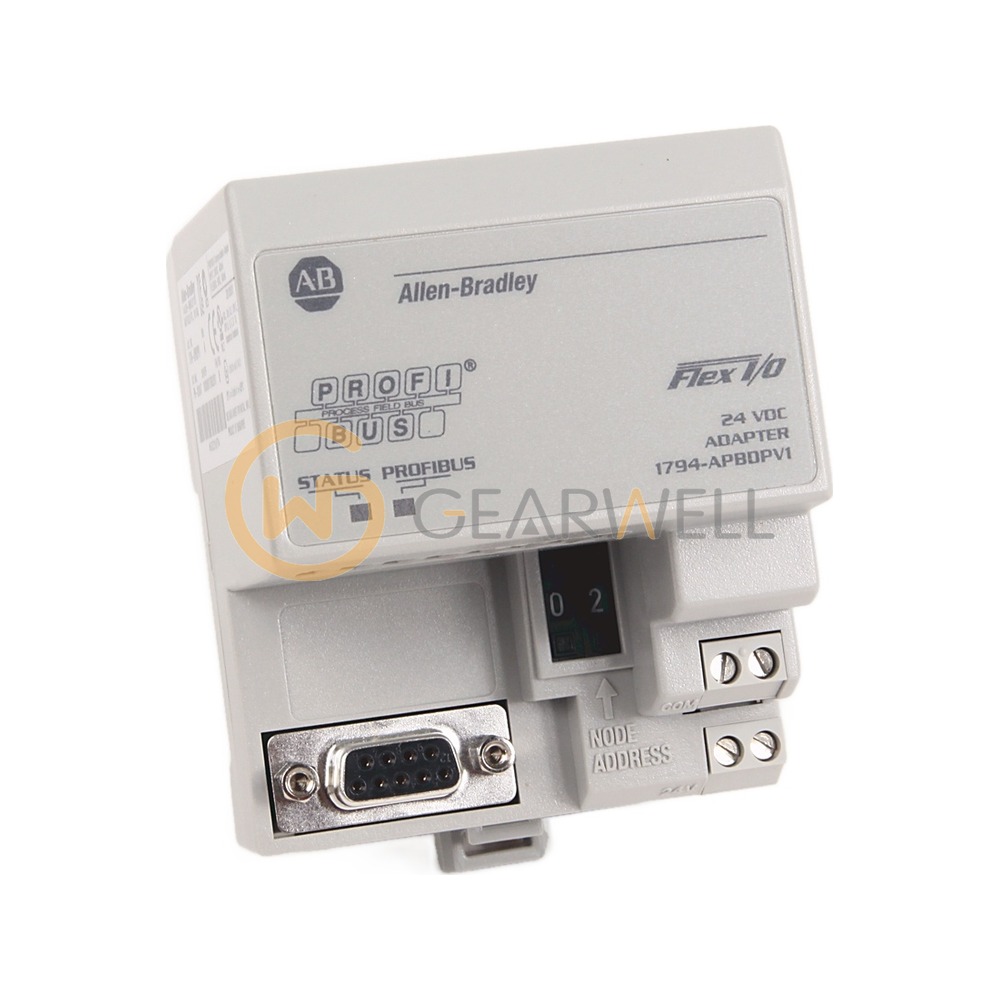

Allen-Bradley 1794-APBDPV1 FLEX I/O PROFIBUS DP-V1 Adapter
- Brand
- Allen-Bradley
- Model
- 1794-APBDPV1
- GEARWELL SKU
- GWP-000014712
- Category
- Industrial Communication
Key specifications
- Description
- Flex Profibus Adapter
- Power Supply
- 24V DC
- Communication
- Profibus DP V1
- Catalog number
- 1794-APBDPV1
- Temperature Rating
- 0…55 °C (32…131 °F)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-APBDPV1 is the FLEX I/O adapter for PROFIBUS DP and DPV1 networks. It connects up to 8 FLEX I/O modules at all rates up to 12 Mbps, through a 9-pin D-shell connector for the PROFIBUS standard drop cable. It takes 24V DC nominal (19.2…31.2V DC operating range), consumes 9.6 W at 24V, puts a 640 mA load on the 24V supply and dissipates up to 4.2 W at 19.2V DC.
Technical reference
| Product name | Allen-Bradley 1794-APBDPV1 FLEX I/O PROFIBUS DP-V1 Adapter |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794-APBDPV1 |
| Category | Industrial Communication |
| Description | Flex Profibus Adapter |
| Power Supply | 24V DC |
| Communication | Profibus DP V1 |
| Catalog number | 1794-APBDPV1 |
| Temperature Rating | 0…55 °C (32…131 °F) |
| Lifecycle status (Rockwell Automation) | Discontinued |
