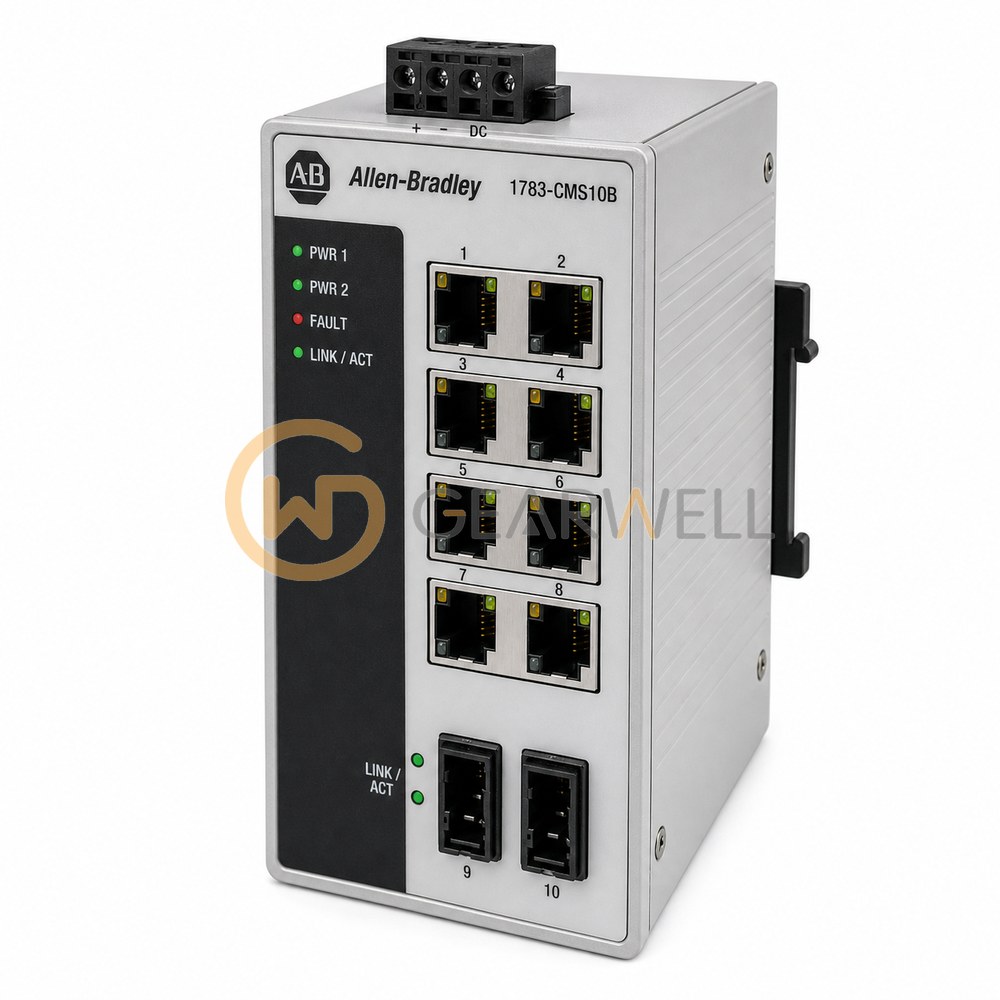

Allen-Bradley 1783-CMS10B Stratix 5200 10-Port Managed Ethernet Switch
- Brand
- Allen-Bradley
- Model
- 1783-CMS10B
- GEARWELL SKU
- GWP-000002491
- Category
- Industrial Communication
Key specifications
- Mounting
- DIN rail, vertical
- DLR rings
- 0
- Combo ports
- 2 × 100/1000 Mbps (copper or SFP per port)
- Standalone SFP slots
- 0; SFP interfaces are available in the combo ports
- NAT support
- No
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1783-CMS10B is a Stratix 5200 managed Ethernet switch with 10 ports: 2 Gigabit combo ports and 8 Fast Ethernet copper ports, with Base firmware. Power consumption is 17.7 W and it weighs about 1.9 lb. It runs on 12…48V DC, has an alarm relay (30V DC, 1.0 A), an RJ45 console port and a USB port, takes a 1784-SDHC8 memory card, and is rated for -40…+60 °C operating. It meets IEEE 1613 and IEC 61850-3 for substation networking.
Technical reference
| Product name | Allen-Bradley 1783-CMS10B Stratix 5200 10-Port Managed Ethernet Switch |
|---|---|
| Brand | Allen-Bradley |
| Model | 1783-CMS10B |
| Category | Industrial Communication |
| Mounting | DIN rail, vertical |
| DLR rings | 0 |
| Combo ports | 2 × 100/1000 Mbps (copper or SFP per port) |
| Standalone SFP slots | 0; SFP interfaces are available in the combo ports |
| NAT support | No |
| DC power input | 12...48 V DC |
| PRP support | No |
| Dedicated copper ports | 8 × 100 Mbps |
| Product type | Stratix 5200 managed Ethernet switch |
| Firmware type | Base |
| Layer 3 routing | No |
| Environmental rating | IP30 |
| Operating temperature | -40...+60 °C |
