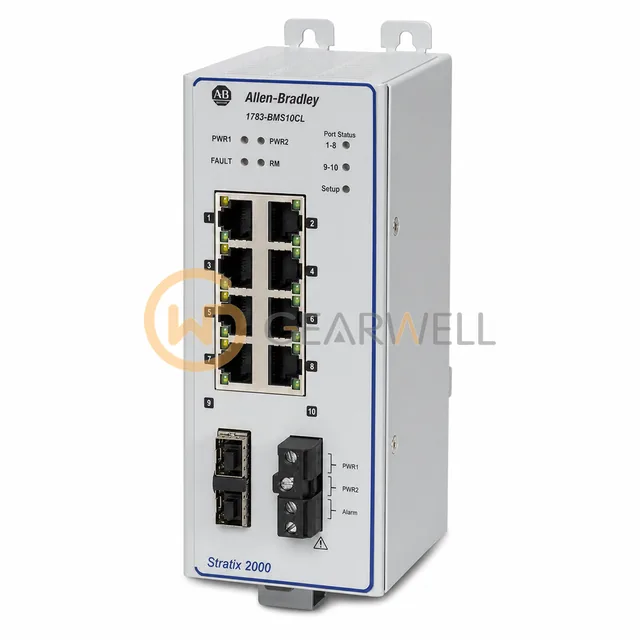

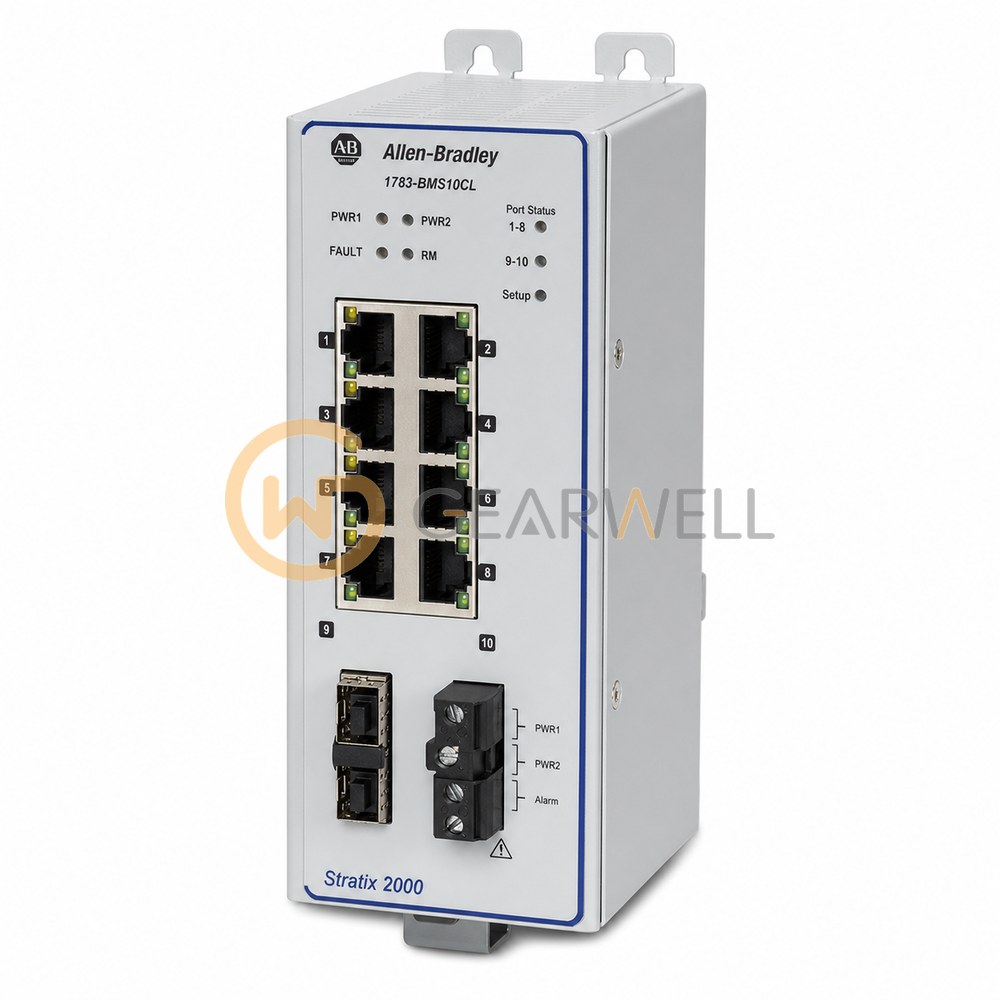

Allen-Bradley 1783-BMS10CL Stratix 5700 10-Port Managed Ethernet Switch
- Brand
- Allen-Bradley
- Model
- 1783-BMS10CL
- GEARWELL SKU
- GWP-000002505
- Category
- Industrial Communication
Key specifications
- Depth
- 11.67 cm
- Width
- 9.14 cm
- Height
- 12.95 cm
- DLR support
- No
- NAT support
- No
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1783-BMS10CL is a Stratix 5700 managed Ethernet switch with 10 ports: 8 Fast Ethernet RJ45 ports and 2 Fast Ethernet combo ports, with Lite firmware. It runs on 12…48V DC (Class 2/SELV, 0.5…2.0 A max), consumes 12.5 W at 24V DC and 40 °C (17 W max), has an alarm relay (1 A at 30V DC), takes a 1784-SD1 memory card and weighs about 1.25 kg. It meets IEEE 1613 and IEC 61850-3 for substation networking.
Technical reference
| Product name | Allen-Bradley 1783-BMS10CL Stratix 5700 10-Port Managed Ethernet Switch |
|---|---|
| Brand | Allen-Bradley |
| Model | 1783-BMS10CL |
| Category | Industrial Communication |
| Depth | 11.67 cm |
| Width | 9.14 cm |
| Height | 12.95 cm |
| DLR support | No |
| NAT support | No |
| DC power input | 12...48 V DC, Class 2/SELV |
| Firmware type | Lite |
| Approximate weight | 1.25 kg |
| Port configuration | 8 × 10/100 Mbps RJ45 + 2 × Fast Ethernet combo ports |
| Environmental rating | IP30 |
| EFT/B immunity for IEC 61000-4-4 at 100 kHz on DC power ports | ±2 kV |
| Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on power ports | ±1 kV |
| Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on power ports | ±2.5 kV |
