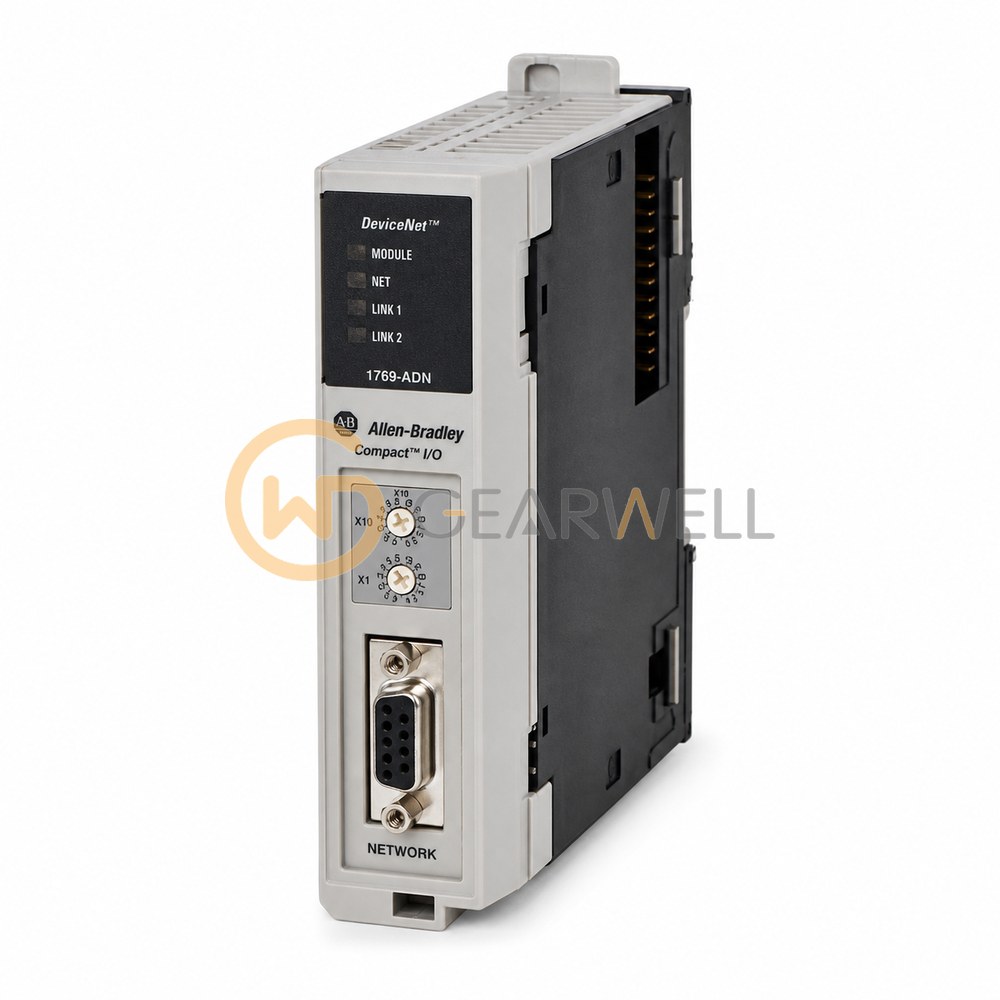

Allen-Bradley 1769-ADN Compact I/O DeviceNet Adapter
- Brand
- Allen-Bradley
- Model
- 1769-ADN
- GEARWELL SKU
- GWP-000002758
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 118 x 50 x 87 mm (H x W x D)
- Product type
- Compact I/O DeviceNet adapter
- DeviceNet rates and maximum length
- 125 kbps / 500 m; 250 kbps / 250 m; 500 kbps / 100 m
- Approximate weight
- 280 g
- Maximum backplane current
- Series A: 450 mA at 5 V DC; Series B: 500 mA at 5 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-ADN is a DeviceNet adapter that connects a bank of 1769 Compact I/O to a DeviceNet network at 125 Kbps (500 m max), 250 Kbps (250 m max) or 500 Kbps (100 m max) through an open-style 5-pin linear plug. It draws 90 mA at 24V DC from the network and 450 mA (Series A) or 500 mA (Series B) at 5V DC from the bus, with a power supply distance rating of 4 modules (Series A) or 5 modules (Series B). It is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-ADN Compact I/O DeviceNet Adapter |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-ADN |
| Category | PLCs & I/O |
| Dimensions | 118 x 50 x 87 mm (H x W x D) |
| Product type | Compact I/O DeviceNet adapter |
| DeviceNet rates and maximum length | 125 kbps / 500 m; 250 kbps / 250 m; 500 kbps / 100 m |
| Approximate weight | 280 g |
| Maximum backplane current | Series A: 450 mA at 5 V DC; Series B: 500 mA at 5 V DC |
| DeviceNet connector | 5-pin open-style |
| Operating altitude | Up to 2000 m without derating |
| Operating humidity | 5-95%, noncondensing |
| Operating temperature | 0-60 deg C |
| Power supply distance rating | Series A: 4 modules; Series B: 5 modules |
