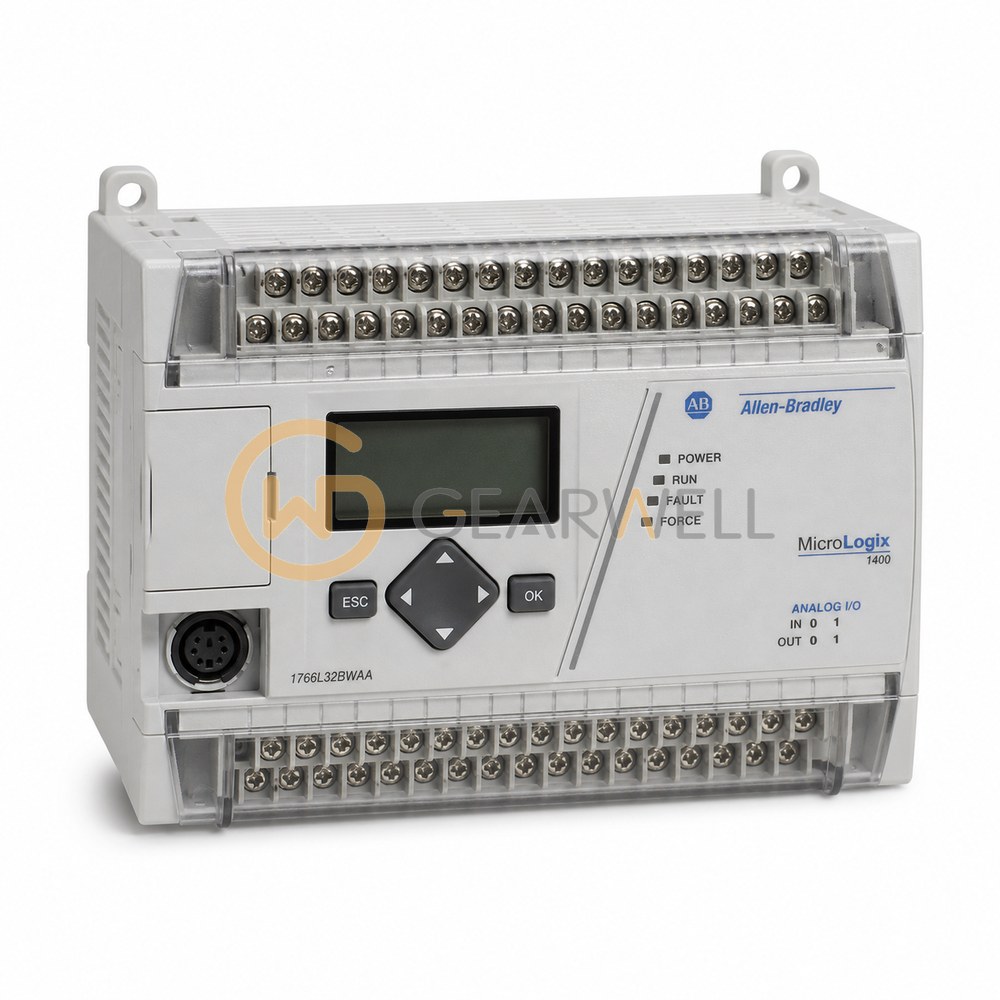

Allen-Bradley 1766L32BWAA MicroLogix 1400 Controller
- Brand
- Allen-Bradley
- Model
- 1766L32BWAA
- GEARWELL SKU
- GWP-000001302
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 90 mm
- Memory
- 20 KB
- Input Signal
- 24 V DC (digital inputs, sinking/sourcing)
- Power Supply
- 120/240V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1766-L32BWAA is a MicroLogix 1400 32-point controller with analog I/O, powered from 120/240V AC, with 20 24V DC inputs (12 fast and 8 normal) and 12 relay outputs. It also has embedded analog I/O: 4 voltage inputs and 2 voltage outputs, 0…10V DC with 12-bit resolution. Its power supply accepts 100…240V AC and consumes up to 120VA. It has an EtherNet/IP port and an isolated RS-232/RS-485 combo port (channel 0), and takes up to seven 1762 expansion I/O modules.
Technical reference
| Product name | Allen-Bradley 1766L32BWAA MicroLogix 1400 Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1766L32BWAA |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 90 mm |
| Memory | 20 KB |
| Input Signal | 24 V DC (digital inputs, sinking/sourcing) |
| Power Supply | 120/240V AC |
| Communication | DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP |
| Output Signal | Relay |
| Number Of Channels | 20 I/P, 12 O/P |
