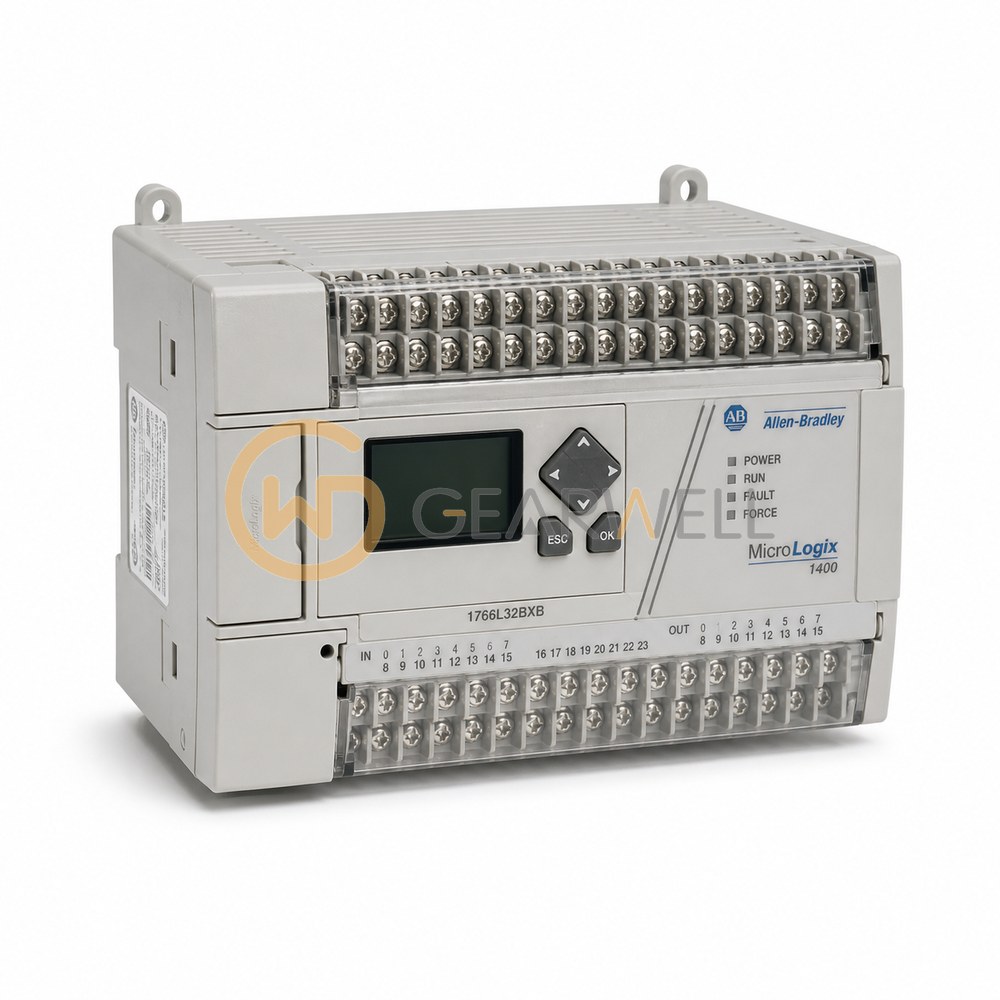

Allen-Bradley 1766L32BXB MicroLogix 1400 Controller
- Brand
- Allen-Bradley
- Model
- 1766L32BXB
- GEARWELL SKU
- GWP-000001265
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 90 mm
- Memory
- 20 KB
- Input Signal
- 24V DC
- Power Supply
- 24V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1766-L32BXB is a MicroLogix 1400 32-point controller powered from 24V DC, with 20 24V DC inputs (12 fast and 8 normal), 6 relay outputs and 6 24V DC FET outputs (3 fast and 3 normal). Its power supply takes 24V DC Class 2 SELV and draws 7.5…53 W. It has an EtherNet/IP port and an isolated RS-232/RS-485 combo port (channel 0), and takes up to seven 1762 expansion I/O modules.
Technical reference
| Product name | Allen-Bradley 1766L32BXB MicroLogix 1400 Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1766L32BXB |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 90 mm |
| Memory | 20 KB |
| Input Signal | 24V DC |
| Power Supply | 24V DC |
| Communication | DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP |
| Output Signal | (6) Relay and (6) 24V DC FET |
| Number Of Channels | 20 I/P, 12 O/P |
