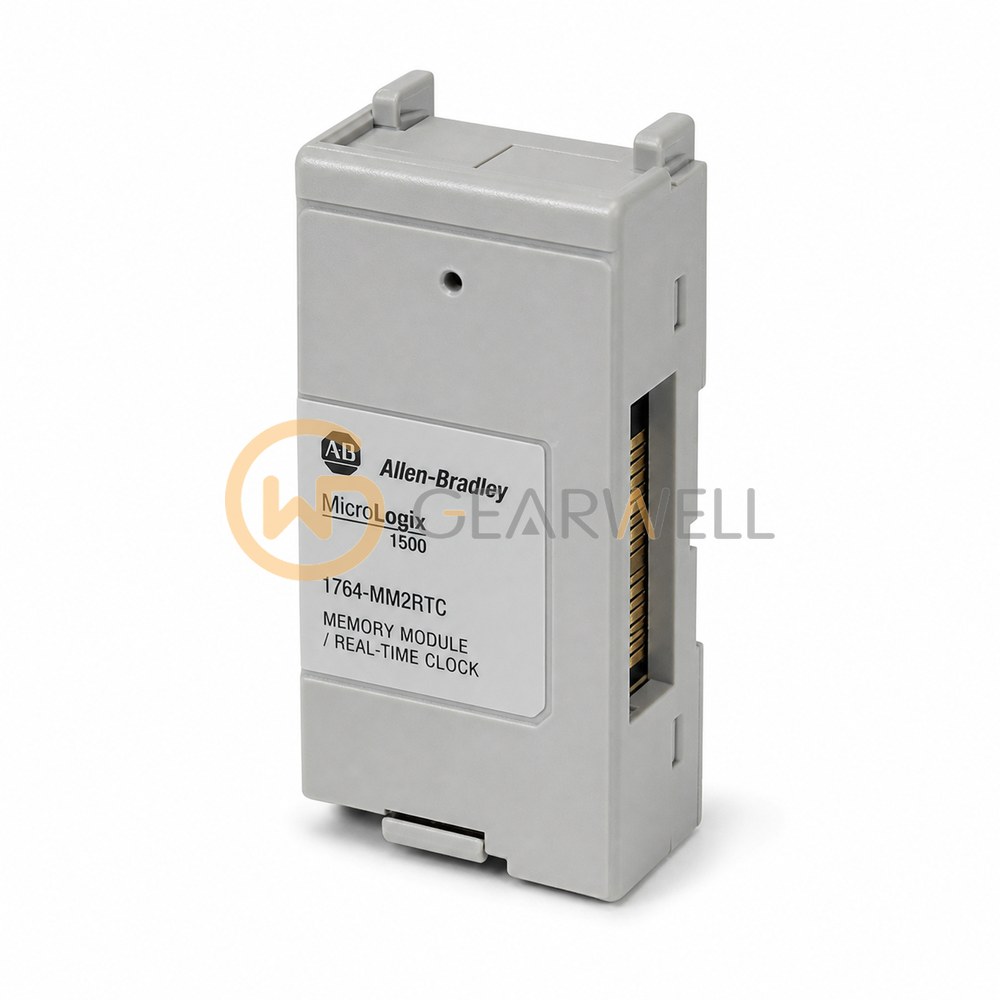

Allen-Bradley 1764-MM2RTC MicroLogix 1500 Memory Module with RTC
- Brand
- Allen-Bradley
- Model
- 1764-MM2RTC
- GEARWELL SKU
- GWP-000002766
- Category
- PLCs & I/O
Key specifications
- Class
- Memory module cards
- Memory Size
- 16 KB
- RTC battery
- Internal non-replaceable battery; replace the RTC module when the battery-low condition requires it
- Furnished Items
- with real time clock
- Stored programs
- 1 user program at a time, with program and data backup
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1764-MM2RTC is a MicroLogix 1500 memory module with real-time clock and 16K of memory. Rockwell specifies the 1764-MM2 or 1764-MM2RTC for 1764-LRP processor programs larger than 8K.
Technical reference
| Product name | Allen-Bradley 1764-MM2RTC MicroLogix 1500 Memory Module with RTC |
|---|---|
| Brand | Allen-Bradley |
| Model | 1764-MM2RTC |
| Category | PLCs & I/O |
| Class | Memory module cards |
| Memory Size | 16 KB |
| RTC battery | Internal non-replaceable battery; replace the RTC module when the battery-low condition requires it |
| Furnished Items | with real time clock |
| Stored programs | 1 user program at a time, with program and data backup |
| Temperature Rating | 0…55 °C (32…131 °F) |
| Real-time clock data | Year, month, day of month, day of week, hour, minute and second |
| Parent Figure/Model Number | MicroLogix 1500 (1764) |
