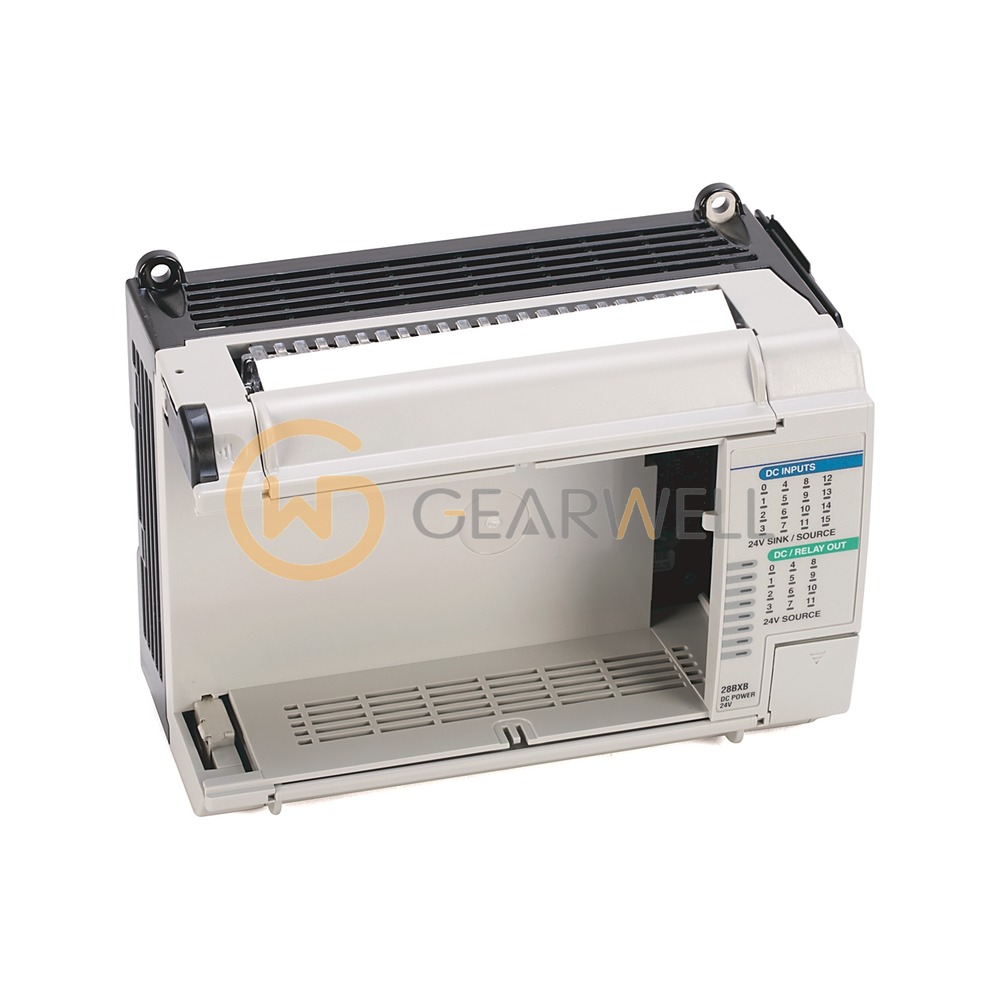

Allen-Bradley 1764-28BXB MicroLogix 1500 28-Point Controller Base
- Brand
- Allen-Bradley
- Model
- 1764-28BXB
- GEARWELL SKU
- GWP-000014707
- Category
- PLCs & I/O
Key specifications
- Interface
- RS-232C Port
- Description
- MicroLogix 1500 28 Point Controller
- Input Signal
- 24V DC
- Power Supply
- 120/240V AC
- Output Signal
- (6) Relay and (6) 24V DC FET
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1764-28BXB is the 24V DC base unit of the MicroLogix 1500 controller, with 28 points of embedded I/O. It has 8 standard and 8 fast 24V DC inputs, and 6 relay outputs (2 isolated relays per unit), 4 standard 24V DC FET outputs and 2 fast 24V DC FET outputs; the fast I/O handles 20 kHz, and it is the only MicroLogix 1500 base unit with FET transistor outputs. A complete controller needs a processor, the 1764-LSP or the enhanced 1764-LRP with RS-232 port, and more I/O can be added with Compact I/O modules.
Technical reference
| Product name | Allen-Bradley 1764-28BXB MicroLogix 1500 28-Point Controller Base |
|---|---|
| Brand | Allen-Bradley |
| Model | 1764-28BXB |
| Category | PLCs & I/O |
| Interface | RS-232C Port |
| Description | MicroLogix 1500 28 Point Controller |
| Input Signal | 24V DC |
| Power Supply | 120/240V AC |
| Output Signal | (6) Relay and (6) 24V DC FET |
| Catalog number | 1764-28BXB |
| Number Of Channels | 16 I/P, 12 O/P |
| Lifecycle status (Rockwell Automation) | Discontinued |
