Allen-Bradley 1756-PB30XT ControlLogix-XT Slim DC Power Supply
- Brand
- Allen-Bradley
- Model
- 1756PB30XT
- GEARWELL SKU
- GWP-000001808
- Category
- PLCs & I/O
Key specifications
- Depth (approx.)
- 145 mm
- Width (approx.)
- 78 mm
- Height (approx.)
- 140 mm
- Weight (approx.)
- 0.77 kg
- Maximum input power
- 50 W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

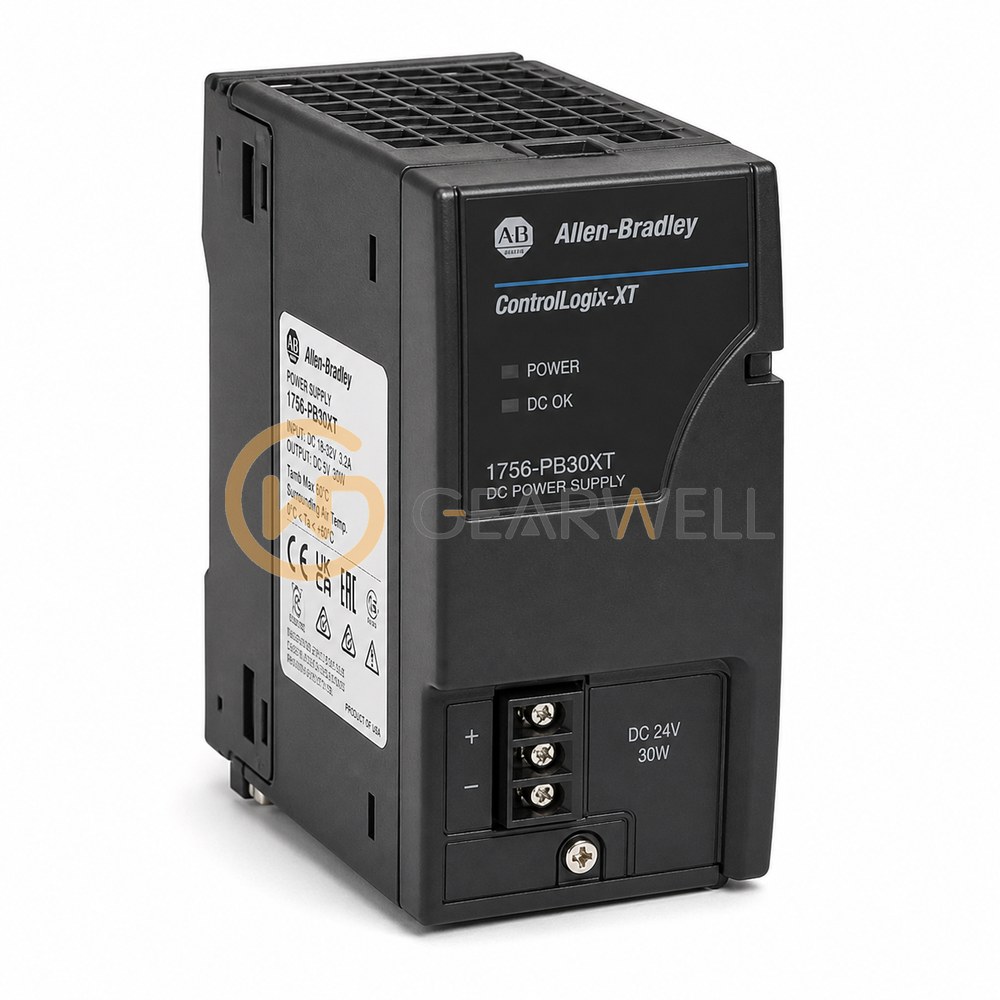

The Allen-Bradley 1756-PB30XT is a ControlLogix-XT slim DC power supply from Rockwell's ControlLogix 1756 range. It takes 18…32 V DC (24 V DC nominal) and delivers up to 30 W at -25…+70 °C (-13…+158 °F): 6 A at 5.1 V DC, 2 A at 3.3 V DC, 1.5 A at 1.2 V DC and 1.25 A at 24 V DC. It measures 14.0 x 7.8 x 14.5 cm (H x W x D) and weighs about 0.77 kg. It mounts on the left side of a ControlLogix-XT chassis (1756-A4LXT, 1756-A5XT, 1756-A7LXT, 1756-A7XT or 1756-A10XT).
Technical reference
| Product name | Allen-Bradley 1756-PB30XT ControlLogix-XT Slim DC Power Supply |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756PB30XT |
| Category | PLCs & I/O |
| Depth (approx.) | 145 mm |
| Width (approx.) | 78 mm |
| Height (approx.) | 140 mm |
| Weight (approx.) | 0.77 kg |
| Maximum input power | 50 W |
| Current capacity at 5.1 V DC | 6 A; subject to the 30 W combined output-power limit |
| Maximum combined backplane output | 30 W at -25 to +70 deg C; sum of all output rails must not exceed 30 W |
| Input voltage range | 18-32 V DC; 24 V DC nominal |
| Current capacity at 24 V DC | 1.25 A; subject to the 30 W combined output-power limit |
| Enclosure type | Open-style (no enclosure rating) |
| Power supply module operating temperature | -25 to +70 deg C; the complete system is limited by its lowest-rated component |
| Conductor screw torque | 0.565 N m (5 lb-in) |
