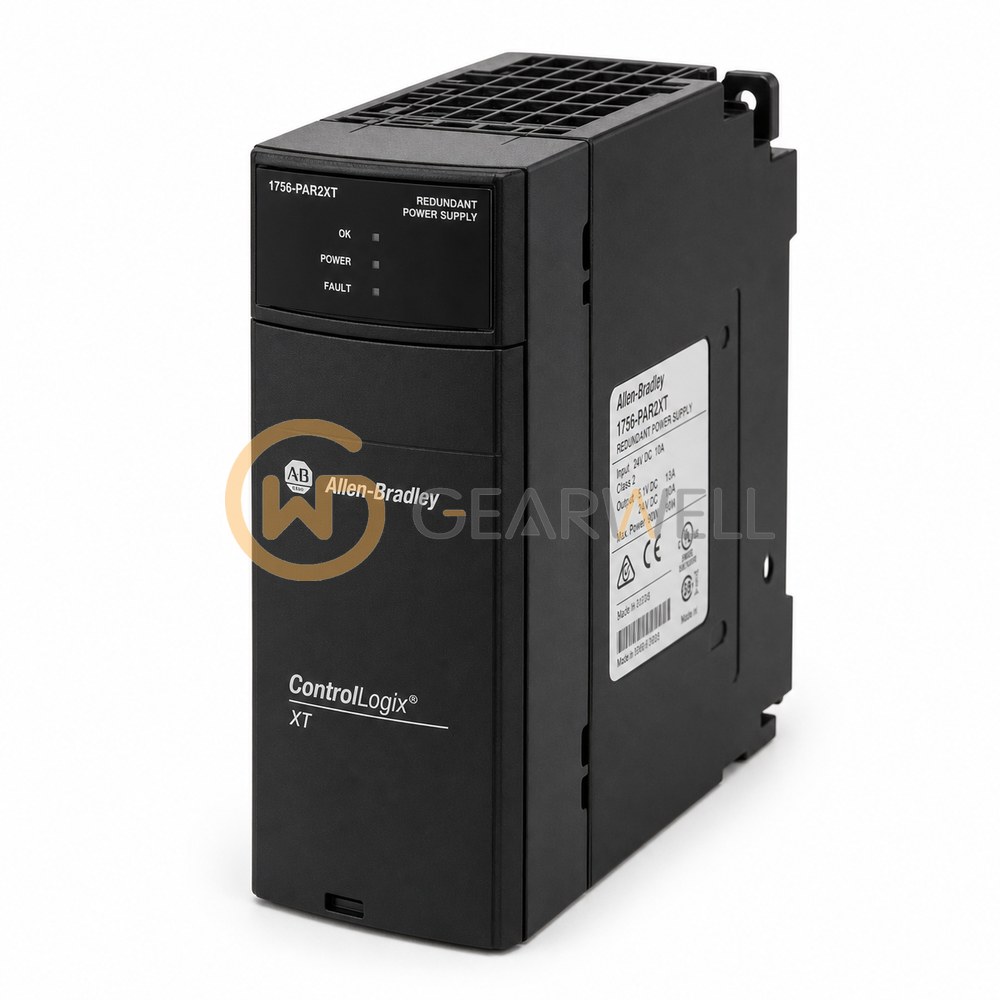

Allen-Bradley 1756-PAR2XT ControlLogix-XT Redundant AC Power Supply Bundle
- Brand
- Allen-Bradley
- Model
- 1756PAR2XT
- GEARWELL SKU
- GWP-000003597
- Category
- PLCs & I/O
Key specifications
- Product type
- ControlLogix-XT redundant AC power supply bundle
- Input frequency range
- 47-63 Hz
- Manufacturer lifecycle status (checked October 2026)
- Active
- Manufacturer-listed bundle contents
- 2 x 1756-PAXTR power supplies, 2 x 1756-CPR2 cables, 1 x 1756-PSCA2 chassis adapter
- Manufacturer-listed connection cables
- 2 x 1756-CPR2 cables
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 1756-PAR2XT ControlLogix-XT Redundant AC Power Supply Bundle |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756PAR2XT |
| Category | PLCs & I/O |
| Product type | ControlLogix-XT redundant AC power supply bundle |
| Input frequency range | 47-63 Hz |
| Manufacturer lifecycle status (checked October 2026) | Active |
| Manufacturer-listed bundle contents | 2 x 1756-PAXTR power supplies, 2 x 1756-CPR2 cables, 1 x 1756-PSCA2 chassis adapter |
| Manufacturer-listed connection cables | 2 x 1756-CPR2 cables |
| Input voltage range | 85-265 V AC; 120/240 V AC nominal |
| Bundle power configuration | 85-265 V AC redundant bundle with 1756-PAXTR supplies; complete-system temperature is limited by the lowest-rated component |
| Maximum output per 1756-PAXTR supply | 42 W at 0-60 deg C in the technical table; do not extrapolate this power rating to 70 deg C |
| System temperature limit | Limited by the lowest-rated installed component; an XT power supply does not establish the temperature rating of the whole bundle |
| Output rail limits per 1756-PAXTR supply | 1.2 V DC: 1.5 A; 3.3 V DC: 4 A; 5.1 V DC: 8 A; 24 V DC: 1.75 A. 42 W maximum at 0-60 deg C per supply; ratings are not additive. |
