Allen-Bradley 1756-PB72K ControlLogix Conformal-Coated DC Power Supply
- Brand
- Allen-Bradley
- Model
- 1756PB72K
- GEARWELL SKU
- GWP-000003364
- Category
- PLCs & I/O
Key specifications
- Maximum input power
- 95 W
- Maximum combined backplane output
- 75 W at 0-60 deg C; sum of all output rails must not exceed 75 W
- Product type
- ControlLogix DC chassis power supply, conformal coated
- Input voltage range
- 18-32 V DC; 24 V DC nominal
- Dimensions H x W x D (approx.)
- 140 x 112 x 145 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

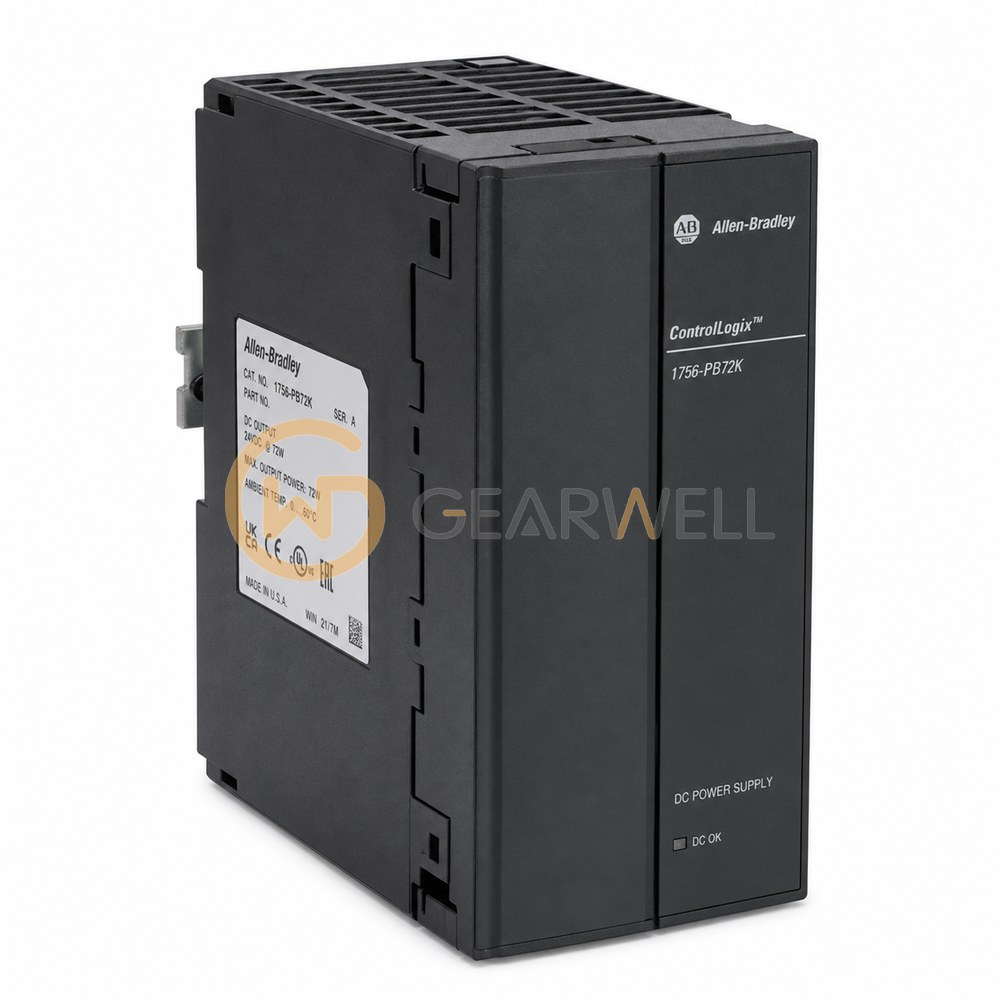

The Allen-Bradley 1756-PB72K is a standard DC power supply from Rockwell's ControlLogix 1756 range. It is the K (harsh-environment) version of the 1756-PB72 with the same ratings. It takes 18…32 V DC (24 V DC nominal) and delivers up to 75 W at 0…60 °C (32…140 °F) to the backplane: 10 A at 5.1 V DC, 4 A at 3.3 V DC, 1.5 A at 1.2 V DC and 2.8 A at 24 V DC. It measures 14.0 x 11.2 x 14.5 cm (H x W x D) and weighs about 0.95 kg. It mounts on the left side of a 1756 ControlLogix chassis (1756-A4, 1756-A7, 1756-A10, 1756-A13 or 1756-A17).
Technical reference
| Product name | Allen-Bradley 1756-PB72K ControlLogix Conformal-Coated DC Power Supply |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756PB72K |
| Category | PLCs & I/O |
| Maximum input power | 95 W |
| Maximum combined backplane output | 75 W at 0-60 deg C; sum of all output rails must not exceed 75 W |
| Product type | ControlLogix DC chassis power supply, conformal coated |
| Input voltage range | 18-32 V DC; 24 V DC nominal |
| Dimensions H x W x D (approx.) | 140 x 112 x 145 mm |
| Maximum inrush current | 30 A |
| Mounting location | Left side of the 1756 chassis |
| Current capacity at 5.1 V DC | 10 A; subject to the 75 W combined output-power limit |
| Current capacity at 24 V DC | 2.8 A; subject to the 75 W combined output-power limit |
| Conductor screw torque | 0.565 N m (5 lb-in) |
