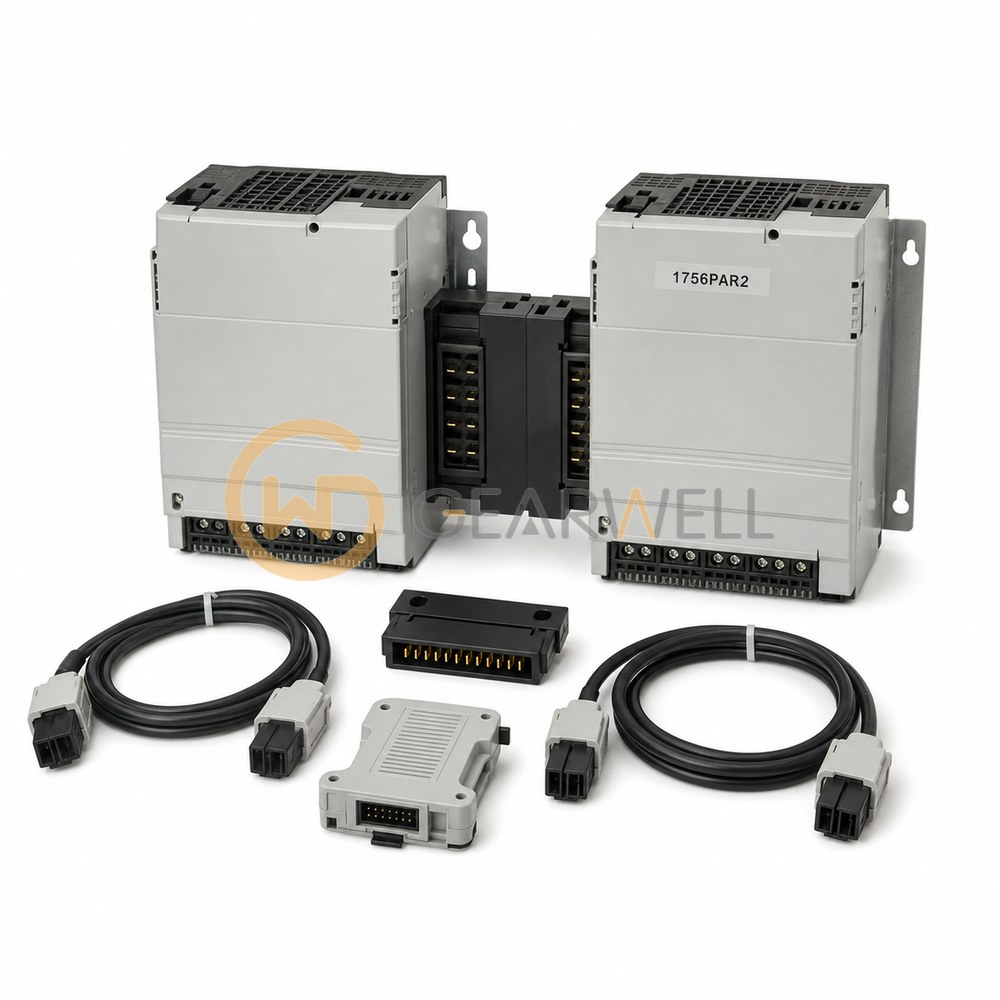

Allen-Bradley 1756-PAR2 ControlLogix Redundant AC Power Supply Bundle
- Brand
- Allen-Bradley
- Model
- 1756PAR2
- GEARWELL SKU
- GWP-000001132
- Category
- PLCs & I/O
Key specifications
- Product type
- ControlLogix redundant AC power supply bundle
- Manufacturer lifecycle status (checked October 2026)
- Active
- Manufacturer-listed bundle contents
- 2 x 1756-PA75R power supplies, 2 x 1756-CPR2 cables, 1 x 1756-PSCA2 chassis adapter
- Manufacturer-listed connection cables
- 2 x 1756-CPR2 cables
- Input voltage range
- 85-265 V AC; 120/240 V AC nominal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 1756-PAR2 ControlLogix Redundant AC Power Supply Bundle |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756PAR2 |
| Category | PLCs & I/O |
| Product type | ControlLogix redundant AC power supply bundle |
| Manufacturer lifecycle status (checked October 2026) | Active |
| Manufacturer-listed bundle contents | 2 x 1756-PA75R power supplies, 2 x 1756-CPR2 cables, 1 x 1756-PSCA2 chassis adapter |
| Manufacturer-listed connection cables | 2 x 1756-CPR2 cables |
| Input voltage range | 85-265 V AC; 120/240 V AC nominal |
| Bundle power configuration | 85-265 V AC redundant power supply bundle; two supplies feed one chassis through an adapter |
| Maximum output per redundant supply | 75 W at 0-60 deg C; redundant supply ratings are not additive |
| Power supply configuration | Redundant power supply bundle |
| Compatible standard chassis series | B or C; check chassis catalog number |
| Output rail limits per redundant supply | 1.2 V DC: 1.5 A; 3.3 V DC: 4 A; 5.1 V DC: 13 A; 24 V DC: 2.8 A. 75 W maximum per supply; do not add the two redundant ratings. |
