Allen-Bradley 1756-PA75 ControlLogix AC Power Supply
- Brand
- Allen-Bradley
- Model
- 1756PA75
- GEARWELL SKU
- GWP-000003749
- Category
- PLCs & I/O
Key specifications
- Product type
- ControlLogix AC chassis power supply
- Dimensions H x W x D (approx.)
- 140 x 112 x 145 mm
- Input frequency range
- 47-63 Hz
- Manufacturer lifecycle status (checked October 2026)
- Active
- Power supply connection
- Direct chassis backplane connection; no redundant-supply cable required
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

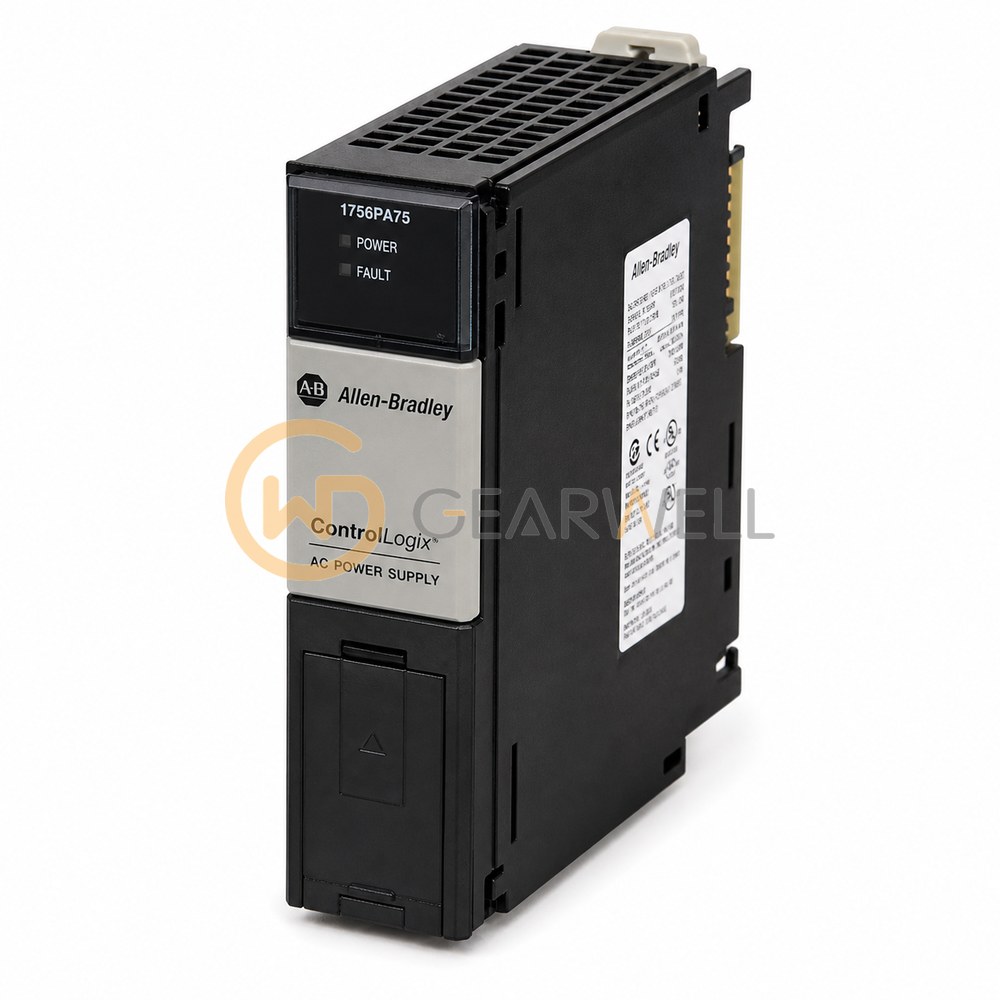

The Allen-Bradley 1756-PA75 is a standard AC power supply from Rockwell's ControlLogix 1756 range. It takes 85…265 V AC (120/240 V AC nominal, 47…63 Hz) and delivers up to 75 W at 0…60 °C (32…140 °F) to the backplane: 13 A at 5.1 V DC, 4 A at 3.3 V DC, 1.5 A at 1.2 V DC and 2.8 A at 24 V DC. Maximum input power is 100 VA / 100 W. It measures 14.0 x 11.2 x 14.5 cm (H x W x D) and weighs about 0.95 kg. It mounts on the left side of a 1756 ControlLogix chassis (1756-A4, 1756-A7, 1756-A10, 1756-A13 or 1756-A17).
Technical reference
| Product name | Allen-Bradley 1756-PA75 ControlLogix AC Power Supply |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756PA75 |
| Category | PLCs & I/O |
| Product type | ControlLogix AC chassis power supply |
| Dimensions H x W x D (approx.) | 140 x 112 x 145 mm |
| Input frequency range | 47-63 Hz |
| Manufacturer lifecycle status (checked October 2026) | Active |
| Power supply connection | Direct chassis backplane connection; no redundant-supply cable required |
| Maximum combined backplane output | 75 W at 0-60 deg C; sum of all output rails must not exceed 75 W |
| Input voltage range | 85-265 V AC; 120/240 V AC nominal |
| Power supply configuration | 85-265 V AC input; 75 W maximum combined backplane output |
| Compatible standard chassis series | B or C; check chassis catalog number |
| Backplane output rail limits | 1.2 V DC: 1.5 A; 3.3 V DC: 4 A; 5.1 V DC: 13 A; 24 V DC: 2.8 A. Combined output: 75 W maximum. |
