Allen-Bradley 1756-HSCK ControlLogix High-Speed Counter Module
- Brand
- Allen-Bradley
- Model
- 1756HSCK
- GEARWELL SKU
- GWP-000001960
- Category
- PLCs & I/O
Key specifications
- Outputs
- 4, in two groups
- Product type
- ControlLogix High-Speed Counter Module
- Counters
- 2
- Enclosure type
- None (open-style)
- Inputs per counter
- 3: A, B and Z
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

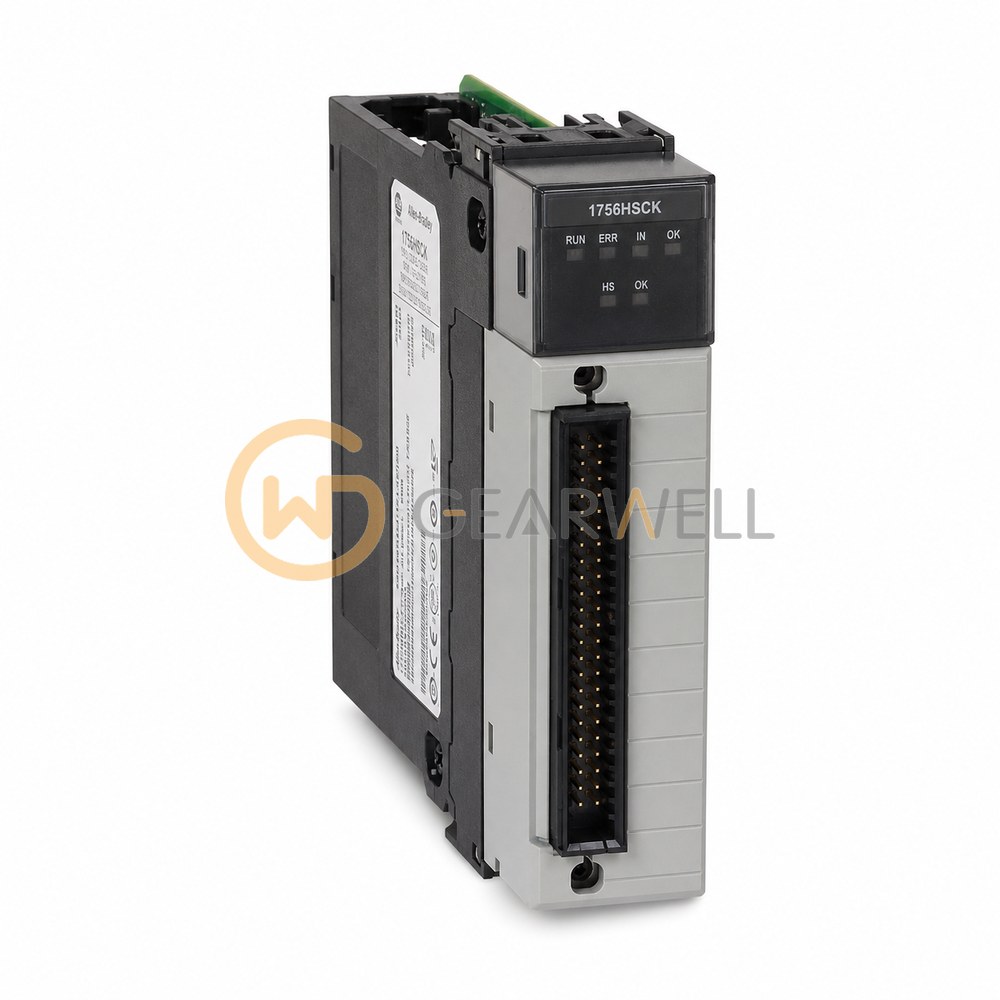

The Allen-Bradley 1756-HSCK is a ControlLogix high-speed counter module for the 1756 chassis. It has two counters, each with A, B and Z (gate/reset) inputs, plus four outputs, for 5V or 12/24V DC signals; it counts up to 1 MHz in counter mode and 250 kHz in encoder mode. It draws 300 mA at 5.1V DC and 3 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756-HSCK ControlLogix High-Speed Counter Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756HSCK |
| Category | PLCs & I/O |
| Outputs | 4, in two groups |
| Product type | ControlLogix High-Speed Counter Module |
| Counters | 2 |
| Enclosure type | None (open-style) |
| Inputs per counter | 3: A, B and Z |
| Input operating voltage | 4.5 to 5.5 V DC (5 V operation) or 10 to 26.4 V DC (12/24 V operation) |
| Maximum encoder frequency | 250 kHz with filter disabled |
| Maximum counting frequency | 1 MHz in counter mode; 500 kHz rate measurement; 250 kHz encoder mode. With filtering: Series A/B 70 Hz maximum; Series C/D selectable 50 Hz, 500 Hz, 5 kHz or 50 kHz. |
