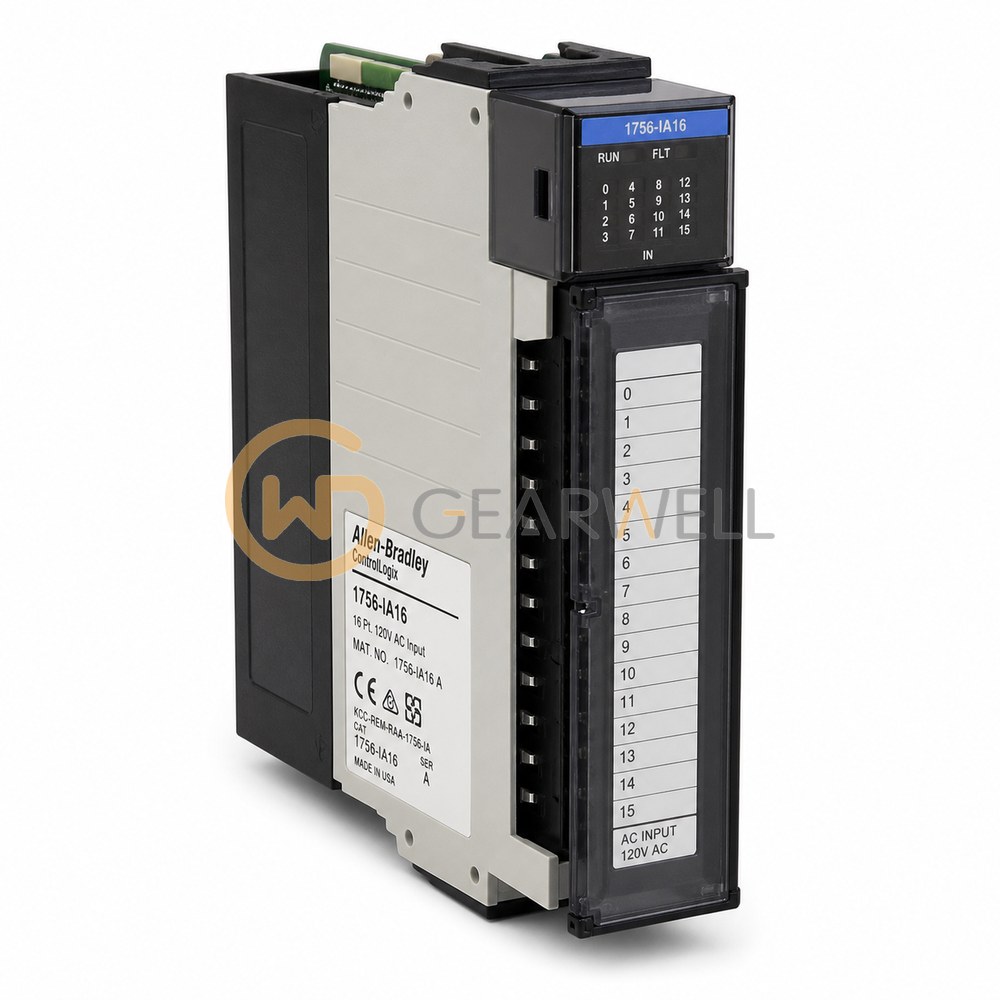

Allen-Bradley 1756IA16 ControlLogix 16-Point AC Input Module
- Brand
- Allen-Bradley
- Model
- 1756IA16
- GEARWELL SKU
- GWP-000003692
- Category
- PLCs & I/O
Key specifications
- Voltage category
- 120 V AC
- Input points
- 16 (8 per group)
- Product type
- ControlLogix 16 Pt D/I 120V AC Module
- Terminal count
- 20-pin
- Lifecycle status
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-IA16 is a ControlLogix 120V AC input module for the 1756 chassis. It has 16 inputs in two groups of eight for 120V AC signals, with an operating range of 74…132V AC at 47…63 Hz and input time stamps to ±200 µs. It draws 100 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IA16 ControlLogix 16-Point AC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IA16 |
| Category | PLCs & I/O |
| Voltage category | 120 V AC |
| Input points | 16 (8 per group) |
| Product type | ControlLogix 16 Pt D/I 120V AC Module |
| Terminal count | 20-pin |
| Lifecycle status | Active |
| Product description | 16 AC inputs; 74-132 V AC, 47-63 Hz; 20-pin terminal interface |
| Operating voltage range | 74-132 V AC, 47-63 Hz |
