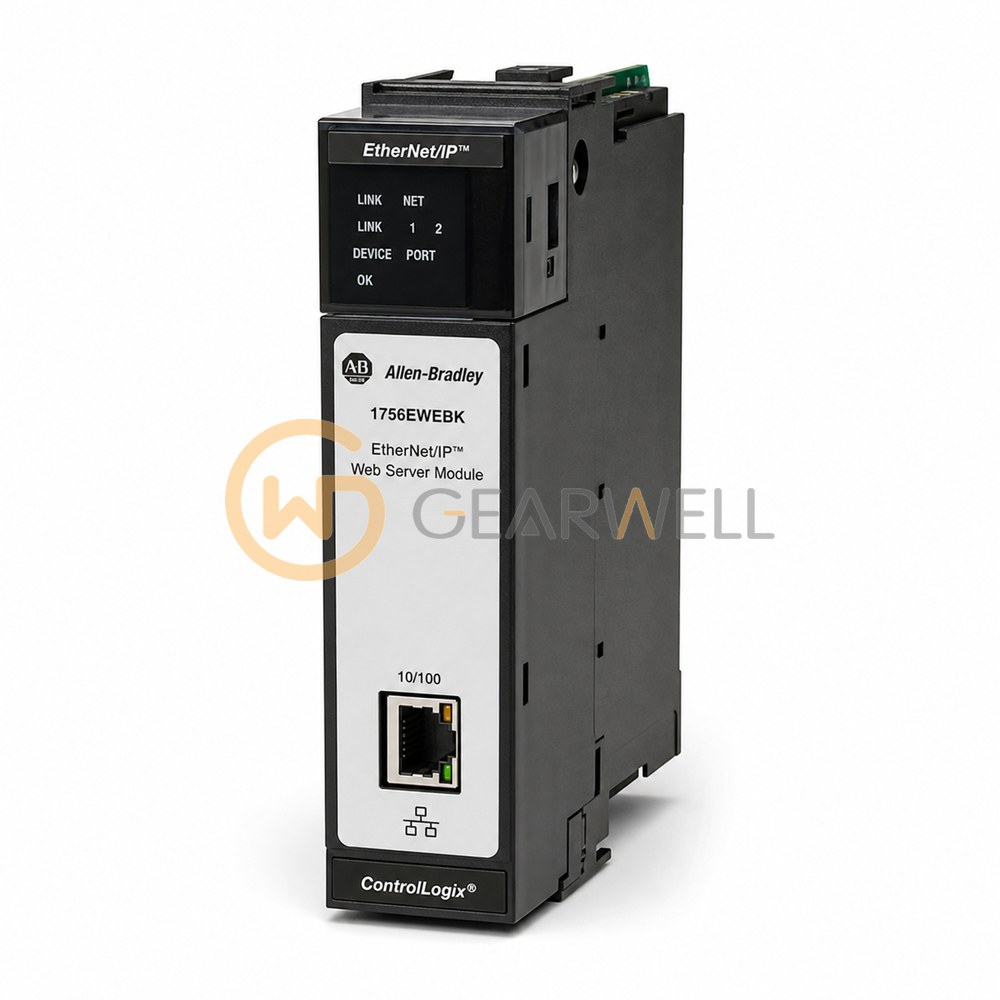

Allen-Bradley 1756-EWEBK ControlLogix EtherNet/IP Enhanced Web Server Module
- Brand
- Allen-Bradley
- Model
- 1756EWEBK
- GEARWELL SKU
- GWP-000003285
- Category
- PLCs & I/O
Key specifications
- Product type
- ControlLogix EtherNet/IP Enhanced Web Server Module
- Enclosure type
- None (open-style)
- Interface
- 1 copper RJ45 (10/100 Mbps)
- Product family
- ControlLogix 1756
- Network
- EtherNet/IP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-EWEBK is an EtherNet/IP web server module from Rockwell's ControlLogix 1756 range. It is the harsh-environment (K) version of the 1756-EWEB. It gives web-browser access to information from the control system over EtherNet/IP at 10/100 Mbps through one RJ45 port, with 64 TCP and 128 CIP connections, and draws 700 mA at 5.1 V DC. Rockwell lists it as end of life since November 1, 2021; the engineered replacement is a ControlLogix 1756 compute module (1756-CMS1B1 or 1756-CMS1C1). It installs in any slot of a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-EWEBK ControlLogix EtherNet/IP Enhanced Web Server Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756EWEBK |
| Category | PLCs & I/O |
| Product type | ControlLogix EtherNet/IP Enhanced Web Server Module |
| Enclosure type | None (open-style) |
| Interface | 1 copper RJ45 (10/100 Mbps) |
| Product family | ControlLogix 1756 |
| Network | EtherNet/IP |
| Conformal coating | Yes |
| TCP/IP connections | 64 |
