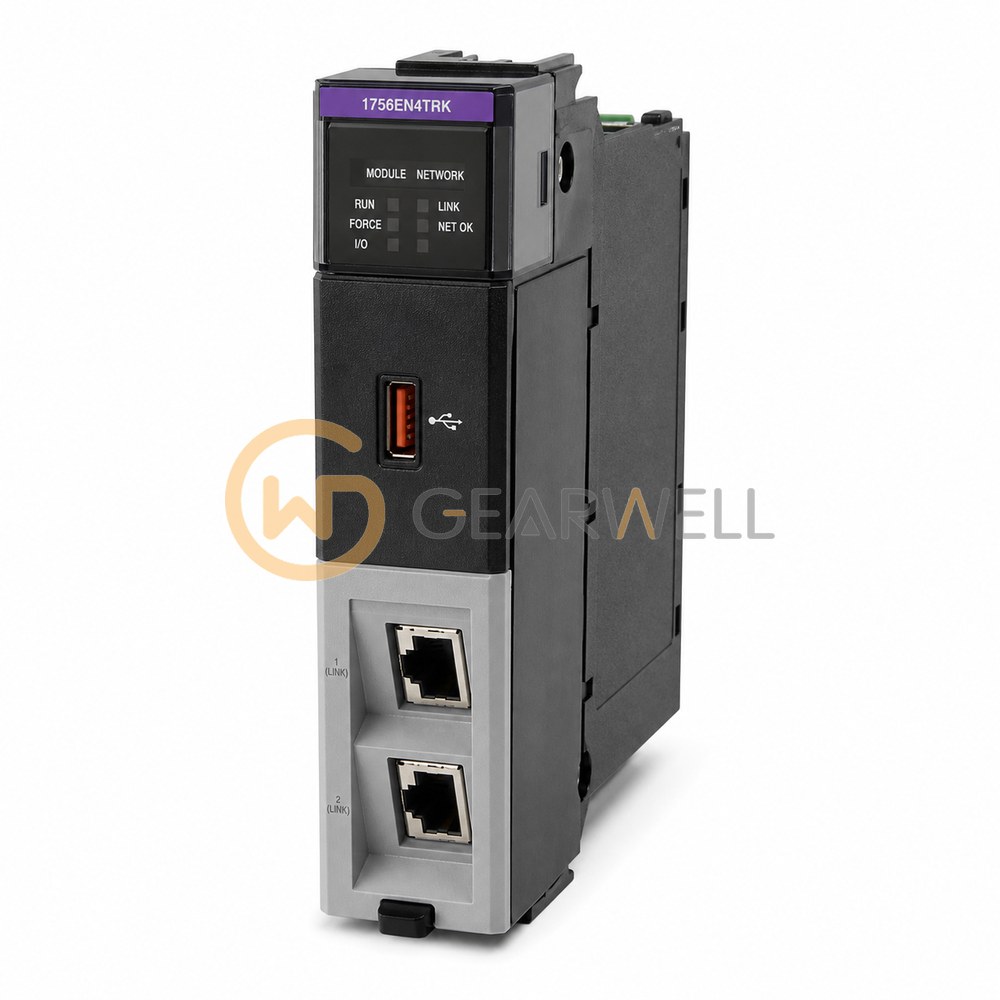

Allen-Bradley 1756-EN4TRK ControlLogix EtherNet/IP Communication Module
- Brand
- Allen-Bradley
- Model
- 1756EN4TRK
- GEARWELL SKU
- GWP-000001775
- Category
- PLCs & I/O
Key specifications
- Network
- EtherNet/IP
- Product type
- ControlLogix EtherNet/IP Communication Module
- CIP connections
- 1000 I/O; 528 messaging
- TCP connections
- 512
- Manufacturer lifecycle
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-EN4TRK is an EtherNet/IP communication module from Rockwell's ControlLogix 1756 range. It is the conformal coated version of the 1756-EN4TR. It has two RJ45 ports at 10/100 Mbps or 1 Gbps and bridges EtherNet/IP links to route messages to devices on other networks. It supports Device Level Ring (DLR) and linear topologies, PRP (firmware 4.001 or later), redundant adapters and CIP Security for secure access from within the plant network. It handles 512 TCP connections, 1000 CIP I/O plus 528 CIP messaging connections, up to 50,000 I/O packets per second without CIP Security and up to 256 Integrated Motion on EtherNet/IP axes, and draws 1.2 A at 5.1 V DC. It installs in any slot of a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-EN4TRK ControlLogix EtherNet/IP Communication Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756EN4TRK |
| Category | PLCs & I/O |
| Network | EtherNet/IP |
| Product type | ControlLogix EtherNet/IP Communication Module |
| CIP connections | 1000 I/O; 528 messaging |
| TCP connections | 512 |
| Manufacturer lifecycle | Active |
| Conformal coating | Yes |
| Communication rate | 10/100/1000 Mbps |
| Product description | Allen-Bradley 1756EN4TRK ControlLogix EtherNet/IP Communication Module. 10/100/1000 Mbps communication and 512 TCP connections. It supports DLR and linear topologies; PRP requires firmware revision 4.001 or later. CIP I/O and messaging limits are distinct from TCP connections. |
