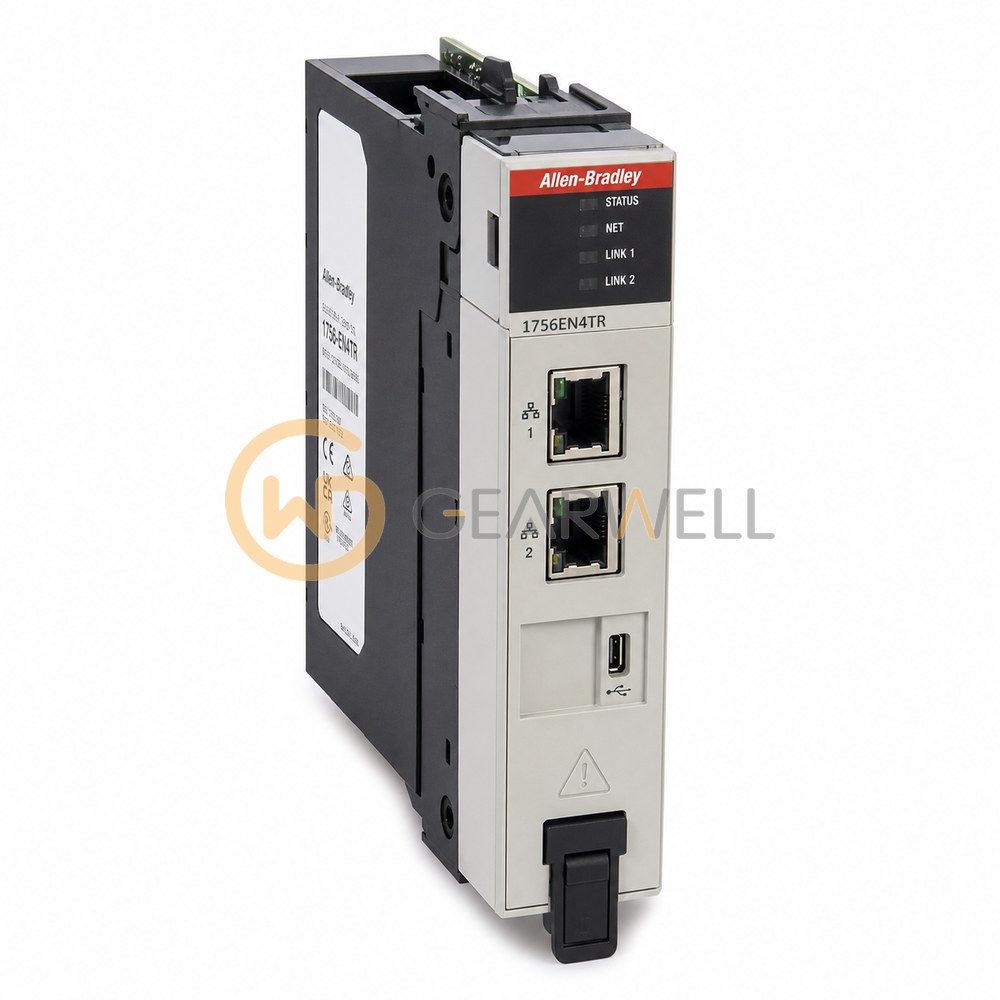

Allen-Bradley 1756-EN4TR ControlLogix EtherNet/IP Communication Module
- Brand
- Allen-Bradley
- Model
- 1756EN4TR
- GEARWELL SKU
- GWP-000003347
- Category
- PLCs & I/O
Key specifications
- Network
- EtherNet/IP
- Backplane current
- 1.2 A at 5.1 V DC; 3 mA at 24 V DC
- Product type
- ControlLogix EtherNet/IP Communication Module
- EtherNet/IP communication rate
- 10/100/1000 Mbps
- Ethernet ports
- 2 RJ45 ports
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-EN4TR is an EtherNet/IP communication module from Rockwell's ControlLogix 1756 range. It has two RJ45 ports at 10/100 Mbps or 1 Gbps and bridges EtherNet/IP links to route messages to devices on other networks. It supports Device Level Ring (DLR) and linear topologies, PRP (firmware 4.001 or later), redundant adapters and CIP Security for secure access from within the plant network. It handles 512 TCP connections, 1000 CIP I/O plus 528 CIP messaging connections, up to 50,000 I/O packets per second without CIP Security and up to 256 Integrated Motion on EtherNet/IP axes, and draws 1.2 A at 5.1 V DC. It installs in any slot of a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-EN4TR ControlLogix EtherNet/IP Communication Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756EN4TR |
| Category | PLCs & I/O |
| Network | EtherNet/IP |
| Backplane current | 1.2 A at 5.1 V DC; 3 mA at 24 V DC |
| Product type | ControlLogix EtherNet/IP Communication Module |
| EtherNet/IP communication rate | 10/100/1000 Mbps |
| Ethernet ports | 2 RJ45 ports |
| CIP connections | 1000 I/O; 528 messaging |
| TCP connections | 512 |
| Power dissipation | 6.12 W |
| Communication rate | 10/100/1000 Mbps |
| Supported network topologies | Linear and DLR; PRP requires firmware 4.001 or later |
