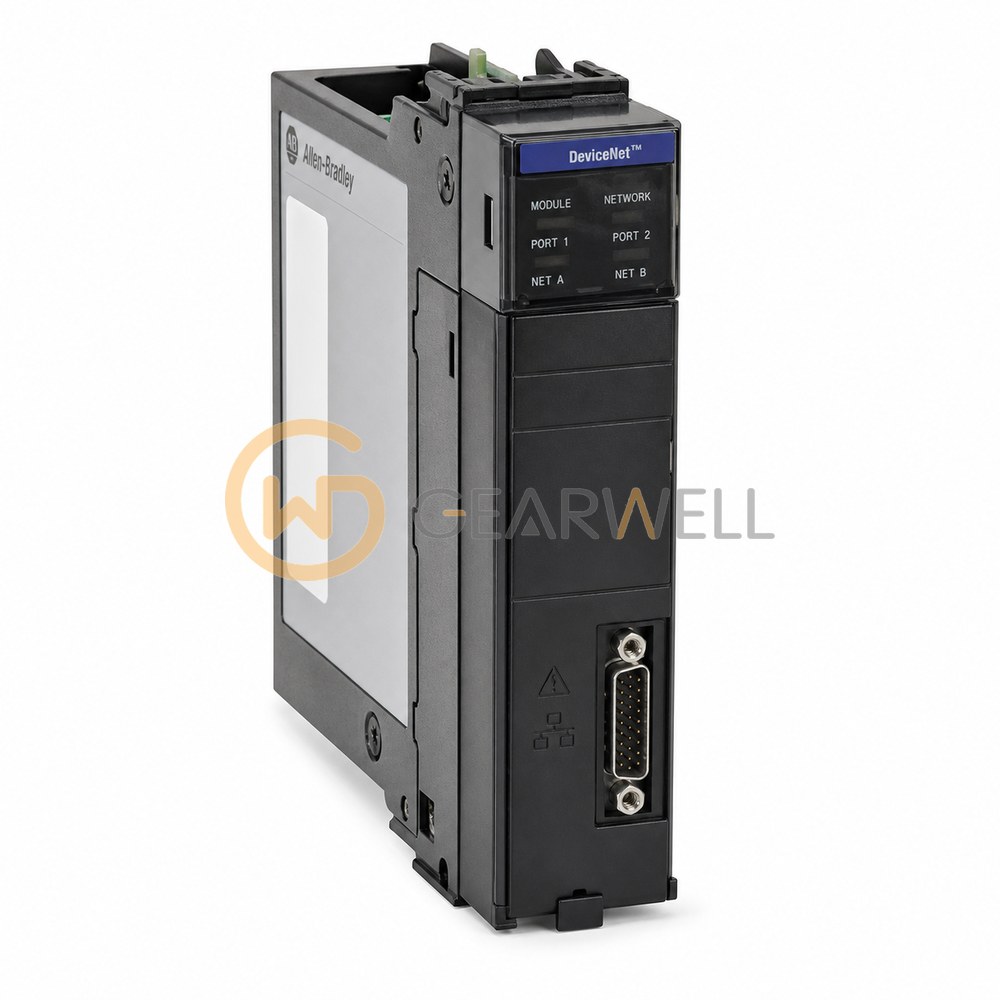

Allen-Bradley 1756-DNBK ControlLogix DeviceNet Scanner Module
- Brand
- Allen-Bradley
- Model
- 1756DNBK
- GEARWELL SKU
- GWP-000001747
- Category
- PLCs & I/O
Key specifications
- Connector
- 5-pin open-style
- Network
- DeviceNet
- Network channels
- 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-DNBK is a DeviceNet bridge module from Rockwell's ControlLogix 1756 range. It is the harsh-environment (K) version of the 1756-DNB. It connects a ControlLogix chassis to a DeviceNet network at 125 Kbps (500 m), 250 Kbps (250 m) or 500 Kbps (100 m) with up to 64 nodes. It has one open-style 5- or 10-pin DeviceNet linear plug and a USB port (12 Mbps) for temporary local programming, draws 400 mA at 5.1 V DC and 60 mA from the 11…25 V DC DeviceNet supply. It installs in any slot of a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-DNBK ControlLogix DeviceNet Scanner Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756DNBK |
| Category | PLCs & I/O |
| Connector | 5-pin open-style |
| Network | DeviceNet |
| Network channels | 1 |
