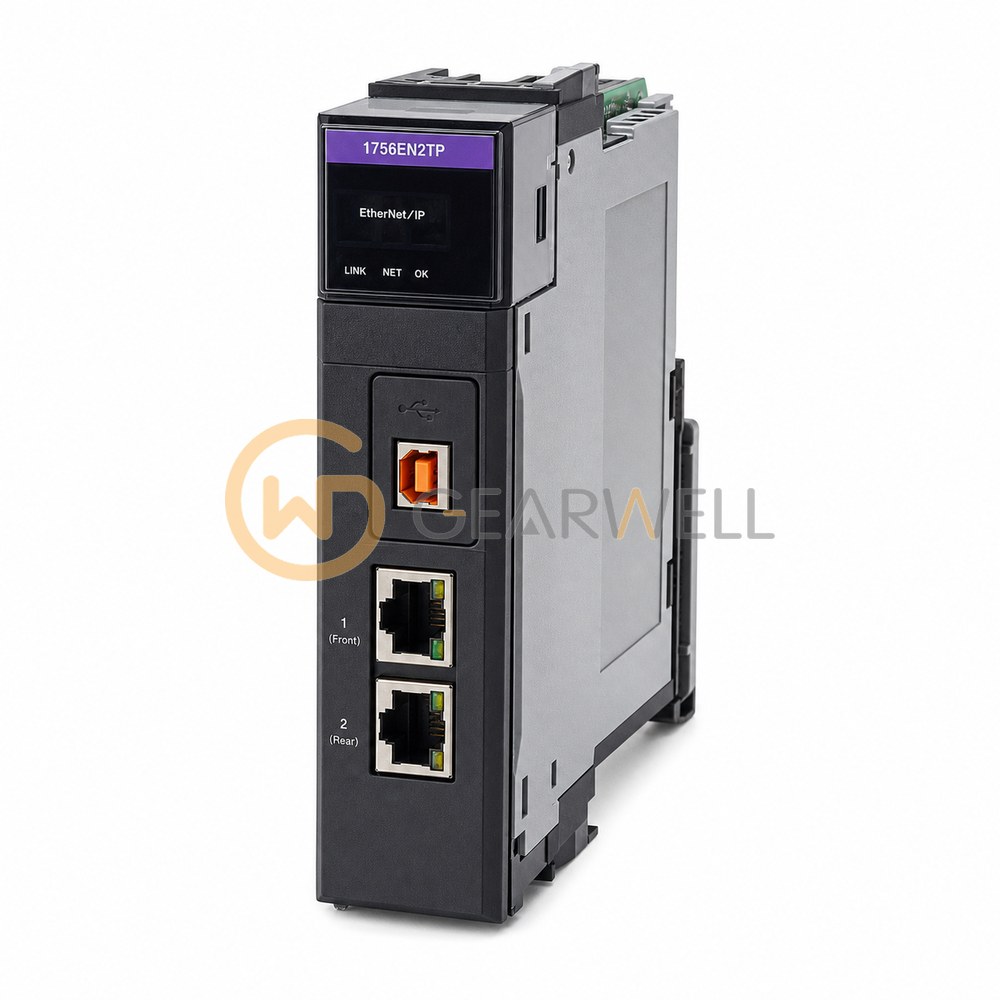

Allen-Bradley 1756-EN2TP ControlLogix EtherNet/IP PRP Communication Module
- Brand
- Allen-Bradley
- Model
- 1756EN2TP
- GEARWELL SKU
- GWP-000001882
- Category
- PLCs & I/O
Key specifications
- Network
- EtherNet/IP
- Chassis width
- 1 slot
- Backplane current
- 1 A at 5.1 V DC; 3 mA at 24 V DC
- CIP connections
- 256
- TCP connections
- 128
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-EN2TP is an EtherNet/IP communication module from Rockwell's ControlLogix 1756 range. It acts as an adapter for I/O on remote EtherNet/IP links and supports the Parallel Redundancy Protocol (PRP). It runs at 10/100 Mbps with 128 TCP and 256 CIP connections, up to 25,000 I/O packets per second and up to 8 Integrated Motion on EtherNet/IP axes, and needs RSLogix 5000 / Studio 5000 version 24.00.00 or later. It installs in any slot of a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-EN2TP ControlLogix EtherNet/IP PRP Communication Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756EN2TP |
| Category | PLCs & I/O |
| Network | EtherNet/IP |
| Chassis width | 1 slot |
| Backplane current | 1 A at 5.1 V DC; 3 mA at 24 V DC |
| CIP connections | 256 |
| TCP connections | 128 |
| Power dissipation | 5.1 W |
| EtherNet/IP communication rate | 10/100 Mbps |
| Storage temperature | -40 °C < Ta < 85 °C |
| Enclosure type | None (open-style) |
| Operating temperature | 0 °C < Ta < 60 °C |
| Communication rate | 10/100 Mbps |
