Allen-Bradley 1756-CN2R ControlLogix Redundant ControlNet Communication Module
- Brand
- Allen-Bradley
- Model
- 1756CN2R
- GEARWELL SKU
- GWP-000001367
- Category
- PLCs & I/O
Key specifications
- Backplane current
- 1300 mA at 5.1 V DC; 3 mA at 24 V DC
- Network
- ControlNet
- ControlNet network isolation
- 30 V continuous, basic insulation: ControlNet A/B to backplane and ControlNet A to ControlNet B
- Power dissipation
- 6.7 W
- Communication rate
- 5 Mbps
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

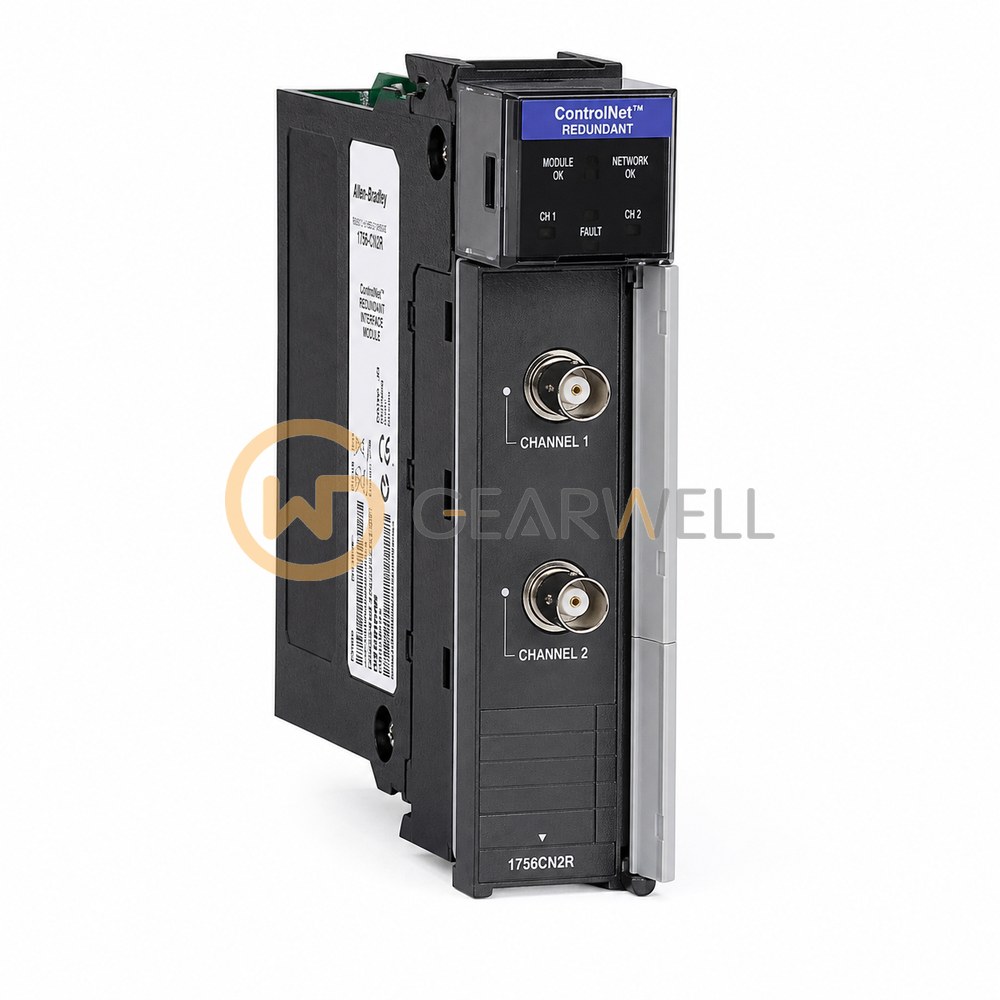

The Allen-Bradley 1756-CN2R is a ControlNet bridge module from Rockwell's ControlLogix 1756 range. It is the redundant-media ControlNet bridge with two ControlNet BNC ports (A and B), drawing 1300 mA at 5.1 V DC and weighing about 0.293 kg. ControlNet runs at 5 Mbps with up to 99 nodes over 1786-RG6 quad-shield RG6 coaxial cable; the module supports 128 Logix connections (plus 3 reserved for redundant control) and has a USB port (12 Mbps) for temporary local programming. Rockwell now treats ControlNet as a legacy network. It installs in any slot of a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-CN2R ControlLogix Redundant ControlNet Communication Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756CN2R |
| Category | PLCs & I/O |
| Backplane current | 1300 mA at 5.1 V DC; 3 mA at 24 V DC |
| Network | ControlNet |
| ControlNet network isolation | 30 V continuous, basic insulation: ControlNet A/B to backplane and ControlNet A to ControlNet B |
| Power dissipation | 6.7 W |
| Communication rate | 5 Mbps |
| ControlNet ports | 2 BNC |
| Enclosure type | None (open-style) |
| Operating temperature | 0 to 60 °C |
