Allen-Bradley 1756-A13 ControlLogix 13-Slot Chassis
- Brand
- Allen-Bradley
- Model
- 1756A13
- GEARWELL SKU
- GWP-000003911
- Category
- PLCs & I/O
Key specifications
- Form factor
- Slot-type chassis
- Product type
- ControlLogix 13-slot chassis
- Mounting method
- Horizontal back-panel mounting only
- Manufacturer lifecycle status
- Active (checked 2026-10-07)
- Approximate chassis weight
- 1.90 kg
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

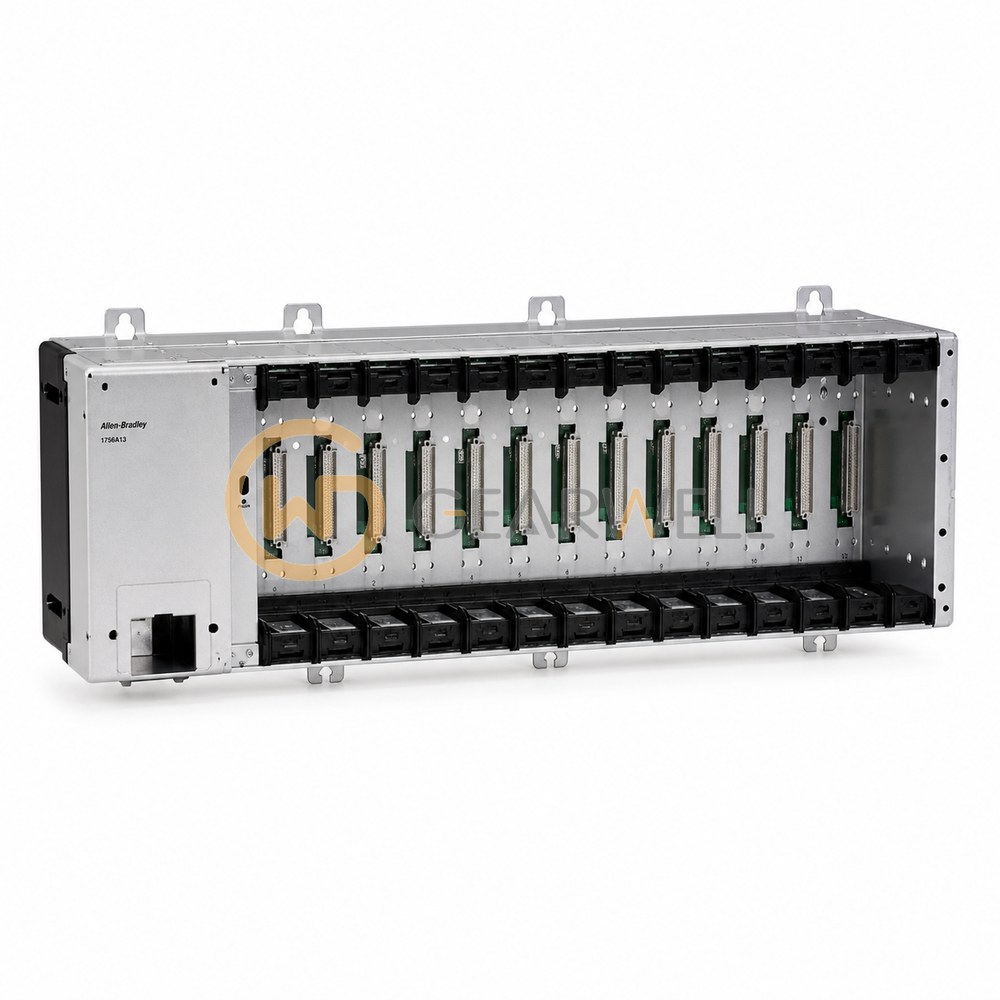

The Allen-Bradley 1756-A13 is a ControlLogix chassis from Rockwell's ControlLogix 1756 range. It has 13 slots, a maximum power dissipation of 5.4 W and weighs about 1.90 kg; the minimum cabinet size is 50.8 x 81.3 x 20.3 cm (H x W x D). The backplane carries up to 15 A at 5.1 V DC (6 A per slot), 4 A at 3.3 V DC, 1.5 A at 1.2 V DC and 2.8 A at 24 V DC and gives a high-speed communication path between modules; any module fits any slot. The chassis is for horizontal back-panel mounting only, and the power supply mounts on its left side.
Technical reference
| Product name | Allen-Bradley 1756-A13 ControlLogix 13-Slot Chassis |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756A13 |
| Category | PLCs & I/O |
| Form factor | Slot-type chassis |
| Product type | ControlLogix 13-slot chassis |
| Mounting method | Horizontal back-panel mounting only |
| Manufacturer lifecycle status | Active (checked 2026-10-07) |
| Approximate chassis weight | 1.90 kg |
| Operating temperature by series | Series B: 0-60 deg C; Series C: -25 to +60 deg C |
| Backplane function | Provides module communication and power distribution |
| Backplane current at 5.1 V DC | 15 A chassis maximum; 6 A per slot maximum |
| Minimum cabinet size (H x W x D) | 50.8 x 81.3 x 20.3 cm (20 x 32 x 8 in.); observe installation clearances |
| Maximum chassis power dissipation | 5.4 W |
