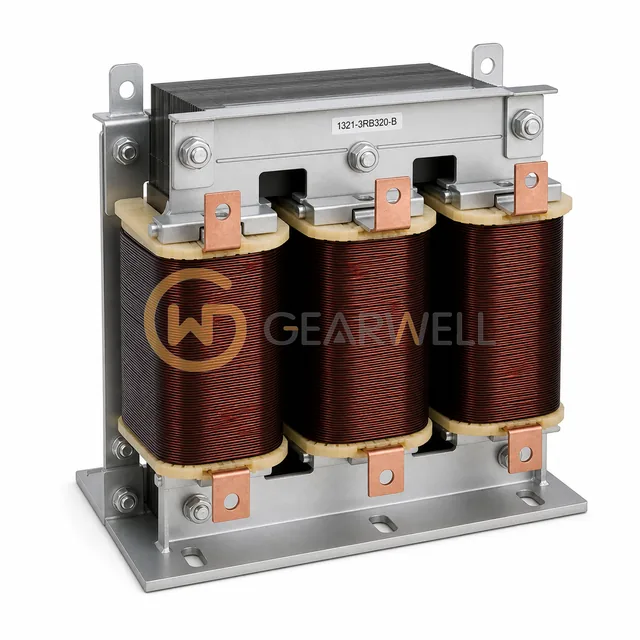

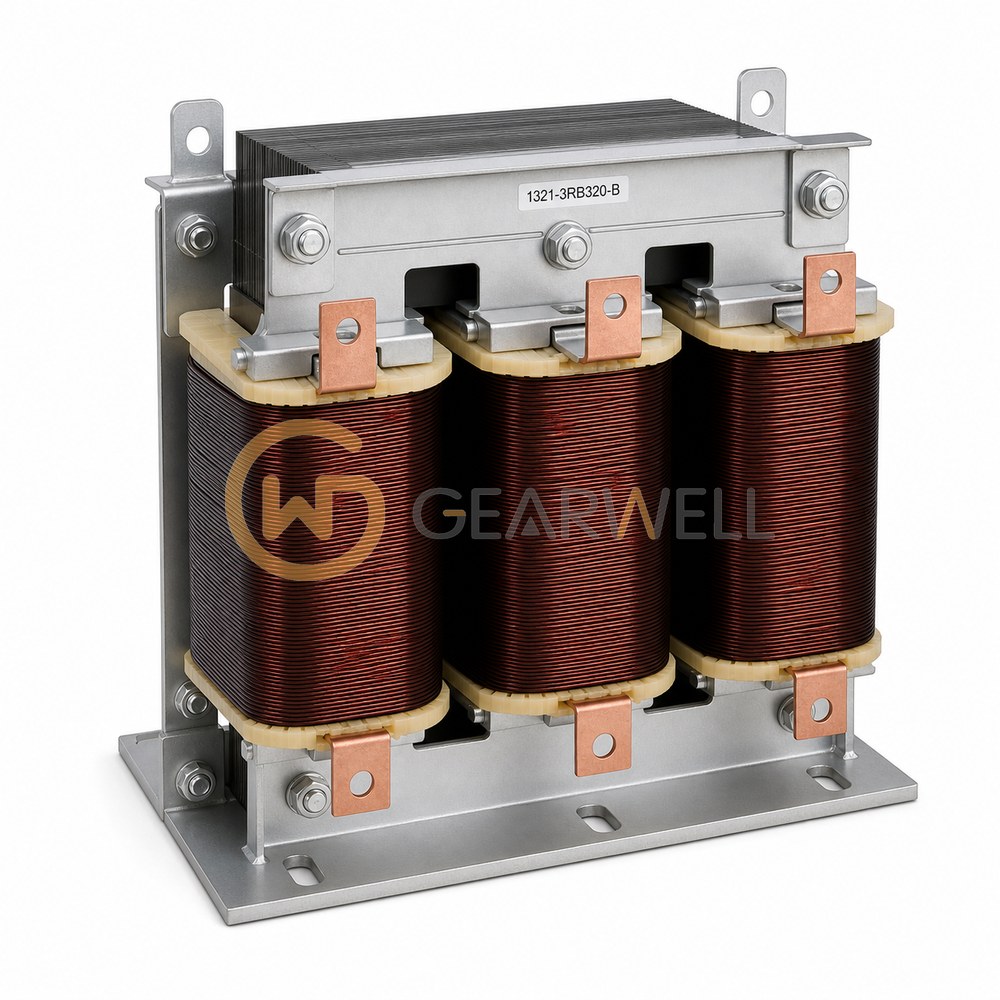

Allen-Bradley 1321-3RB320-B Industrial Line Reactor
- Brand
- Allen-Bradley
- Model
- 1321-3RB320-B
- GEARWELL SKU
- GWP-000003394
- Category
- Electrical, Power & Connectivity
Key specifications
- Typical application
- Drive input/output impedance and harmonic mitigation
- Product type
- AC line reactor component
- Product family
- Bulletin 1321
- Identification scope
- Family-level identification; exact configuration requires the complete catalog number
- Platform compatibility
- Allen-Bradley Bulletin 1321 power conditioning
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1321-3RB320-B is a three-phase open-style line reactor for AC drives, rated 320 A fundamental current with 0.075 mH inductance and 222 W losses. It has tin-plated aluminum tab terminals and is rated for up to 690V AC, and it weighs about 37.2 kg. It is rated for 200% of fundamental current for 30 minutes and 300% for 1 minute, and open units are rated for up to 50 °C ambient.
Technical reference
| Product name | Allen-Bradley 1321-3RB320-B Industrial Line Reactor |
|---|---|
| Brand | Allen-Bradley |
| Model | 1321-3RB320-B |
| Category | Electrical, Power & Connectivity |
| Typical application | Drive input/output impedance and harmonic mitigation |
| Product type | AC line reactor component |
| Product family | Bulletin 1321 |
| Identification scope | Family-level identification; exact configuration requires the complete catalog number |
| Platform compatibility | Allen-Bradley Bulletin 1321 power conditioning |
