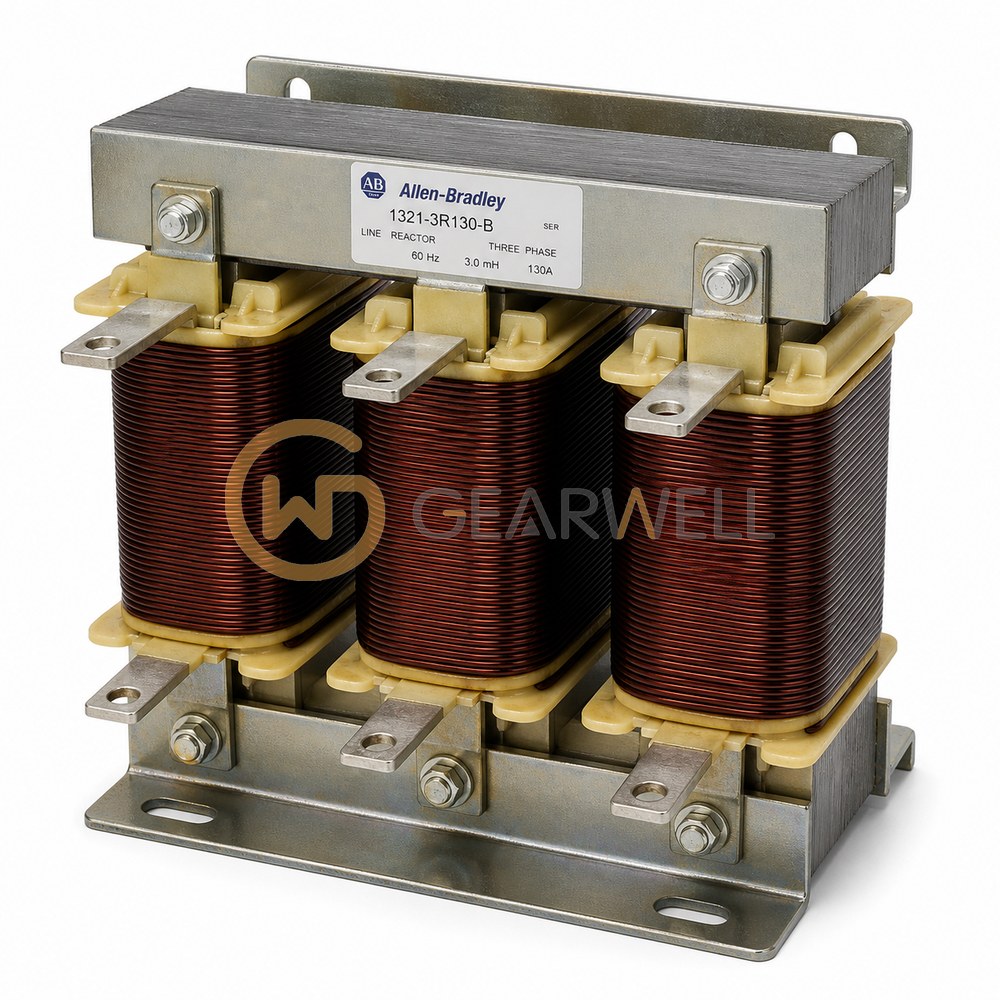

Allen-Bradley 1321-3R130-B Industrial Line Reactor
- Brand
- Allen-Bradley
- Model
- 1321-3R130-B
- GEARWELL SKU
- GWP-000000309
- Category
- Electrical, Power & Connectivity
Key specifications
- Product type
- 1321 Power Component 130 A Line Reactor
- Catalog number
- 1321-3R130-B
- Lifecycle status
- Active
- Product description
- Three-Phase Line Reactor, Open Style (AC Drive Reactors), 130 Amps, 0.2 mh
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1321-3R130-B is a three-phase open-style line reactor for AC drives, rated 130 A fundamental current with 0.2 mH inductance and 117 W losses. It has tin-plated aluminum box lugs, is an IP00 open unit and is rated for up to 690V AC, and it weighs about 17.2 kg. It is rated for 200% of fundamental current for 30 minutes and 300% for 1 minute, and open units are rated for up to 50 °C ambient.
Technical reference
| Product name | Allen-Bradley 1321-3R130-B Industrial Line Reactor |
|---|---|
| Brand | Allen-Bradley |
| Model | 1321-3R130-B |
| Category | Electrical, Power & Connectivity |
| Product type | 1321 Power Component 130 A Line Reactor |
| Catalog number | 1321-3R130-B |
| Lifecycle status | Active |
| Product description | Three-Phase Line Reactor, Open Style (AC Drive Reactors), 130 Amps, 0.2 mh |
