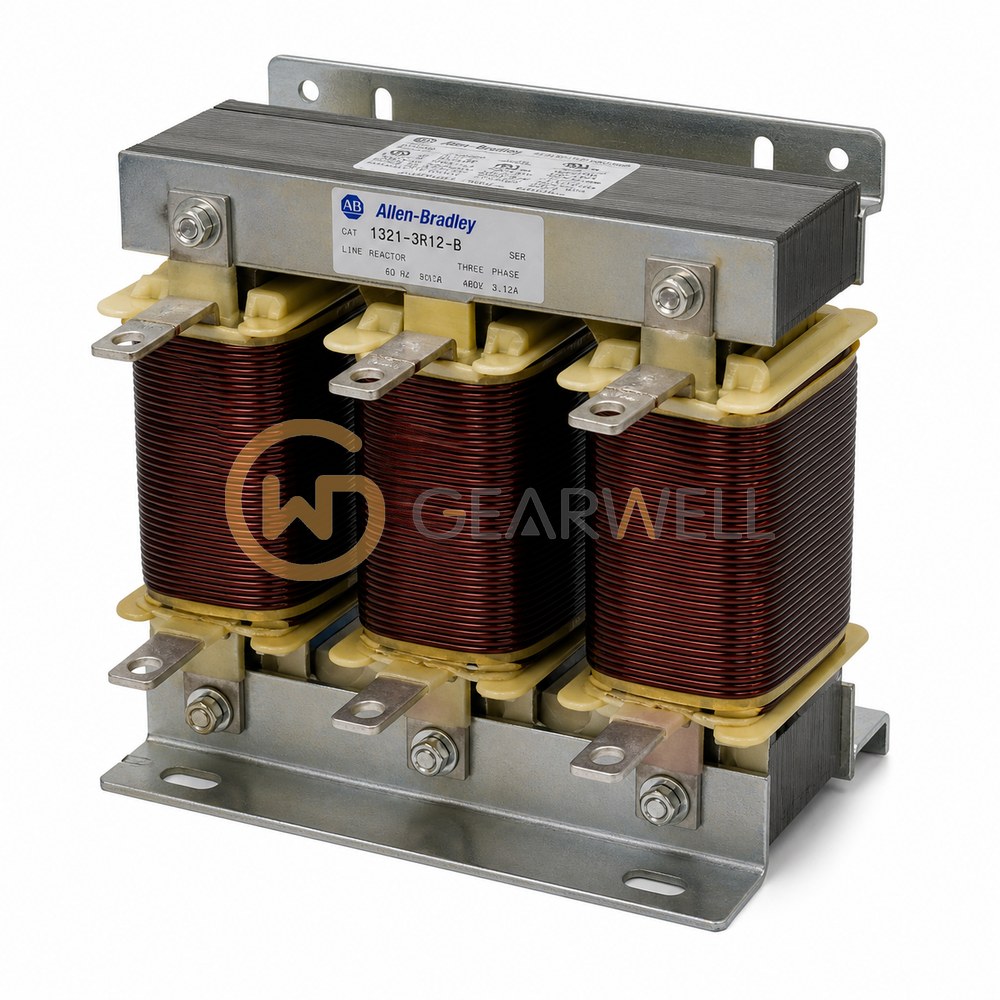

Allen-Bradley 1321-3R12-B Industrial Line Reactor
- Brand
- Allen-Bradley
- Model
- 1321-3R12-B
- GEARWELL SKU
- GWP-000000109
- Category
- Electrical, Power & Connectivity
Key specifications
- Product type
- 1321 Power Component 12 A Line Reactor
- Catalog number
- 1321-3R12-B
- Lifecycle status
- Active
- Product description
- Three-Phase Line Reactor, Open Style (AC Drive Reactors), 12 Amps, 2.5 mh
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1321-3R12-B is a three-phase open-style line reactor for AC drives, rated 12 A fundamental current with 2.5 mH inductance and 23 W losses. It has finger-safe IP20 terminal blocks and is rated for up to 600V AC, and it weighs about 2.4 kg. It is rated for 200% of fundamental current for 30 minutes and 300% for 1 minute, and open units are rated for up to 50 °C ambient.
Technical reference
| Product name | Allen-Bradley 1321-3R12-B Industrial Line Reactor |
|---|---|
| Brand | Allen-Bradley |
| Model | 1321-3R12-B |
| Category | Electrical, Power & Connectivity |
| Product type | 1321 Power Component 12 A Line Reactor |
| Catalog number | 1321-3R12-B |
| Lifecycle status | Active |
| Product description | Three-Phase Line Reactor, Open Style (AC Drive Reactors), 12 Amps, 2.5 mh |
