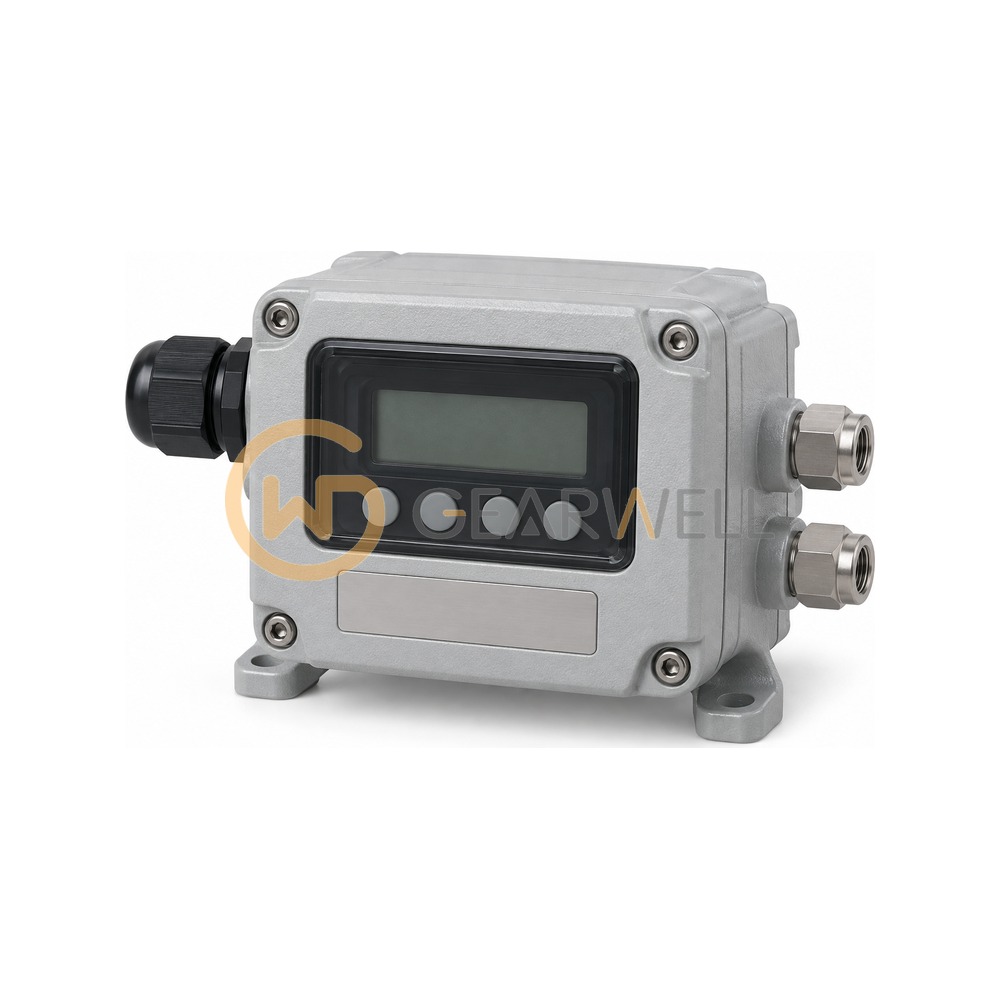

ABB V18345-7020421001 TZIDC Electro-Pneumatic Positioner HART
- Brand
- ABB
- Model
- V18345-7020421001
- GEARWELL SKU
- GWP-000013259
- Category
- Hydraulic Valves
Key specifications
- Catalog base
- V18345 TZIDC, intelligent, configurable, with indicator and operator panel
- Case / mounting
- Code "7": as collected; not listed in the TZIDC data sheet case/mounting table (listed codes 1, 2, 5, 6)
- Option module
- Code 1: plug-in analog position feedback module (4 ... 20 mA)
- Supply pressure
- 1.4 ... 6 (20 ... 90 psi) bar
- Connections (code 2)
- Cable 1/2-14 NPT, air pipe 1/4-18 NPT
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ABB V18345-7020421001 TZIDC Electro-Pneumatic Positioner HART |
|---|---|
| Brand | ABB |
| Model | V18345-7020421001 |
| Category | Hydraulic Valves |
| Catalog base | V18345 TZIDC, intelligent, configurable, with indicator and operator panel |
| Case / mounting | Code "7": as collected; not listed in the TZIDC data sheet case/mounting table (listed codes 1, 2, 5, 6) |
| Option module | Code 1: plug-in analog position feedback module (4 ... 20 mA) |
| Supply pressure | 1.4 ... 6 (20 ... 90 psi) bar |
| Connections (code 2) | Cable 1/2-14 NPT, air pipe 1/4-18 NPT |
| Ambient temperature | -40 ... 85 °C |
| Input / communication | Code 2: 4 ... 20 mA two-wire, LKS adapter plug and FSK module for HART communication |
| Output / safe position | Code 4: double acting, fail safe |
| Explosion protection (code 0) | without |
