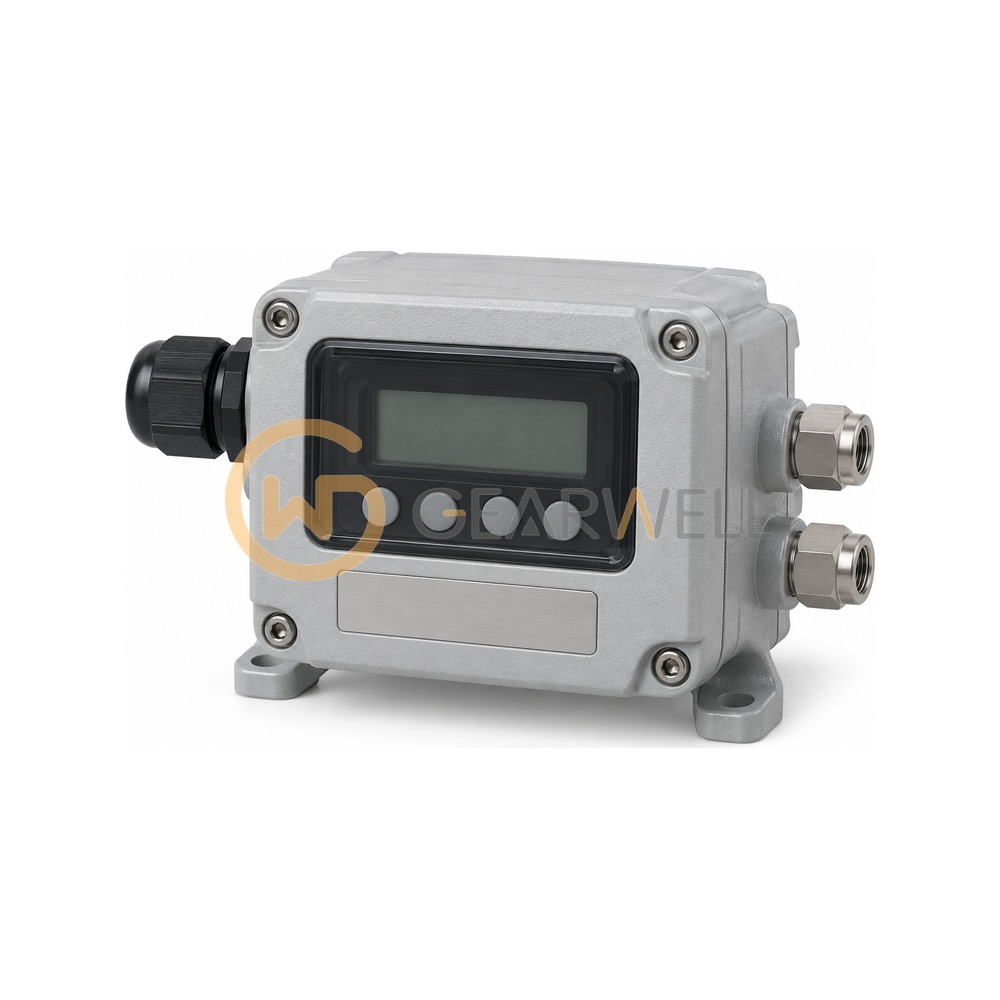

ABB V18345-1010120001 TZIDC Electro-Pneumatic Positioner
- Brand
- ABB
- Model
- V18345-1010120001
- GEARWELL SKU
- GWP-000013258
- Category
- Hydraulic Valves
Key specifications
- Catalog base
- V18345 TZIDC, intelligent, configurable, with indicator and operator panel
- Case / mounting
- Code 1: aluminium case IP65 (NEMA 4X), for linear actuators (DIN/IEC 534 / NAMUR) or rotary actuators (VDI/VDE 3845)
- Option module
- Code 0: without position feedback module
- Supply pressure
- 1.4 ... 6 (20 ... 90 psi) bar
- Connections (code 2)
- Cable 1/2-14 NPT, air pipe 1/4-18 NPT
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ABB V18345-1010120001 TZIDC Electro-Pneumatic Positioner |
|---|---|
| Brand | ABB |
| Model | V18345-1010120001 |
| Category | Hydraulic Valves |
| Catalog base | V18345 TZIDC, intelligent, configurable, with indicator and operator panel |
| Case / mounting | Code 1: aluminium case IP65 (NEMA 4X), for linear actuators (DIN/IEC 534 / NAMUR) or rotary actuators (VDI/VDE 3845) |
| Option module | Code 0: without position feedback module |
| Supply pressure | 1.4 ... 6 (20 ... 90 psi) bar |
| Connections (code 2) | Cable 1/2-14 NPT, air pipe 1/4-18 NPT |
| Ambient temperature | -40 ... 85 °C |
| Input / communication | Code 1: 4 ... 20 mA two-wire, connector plug for LKS adapter |
| Output / safe position | Code 1: single acting, fail safe |
| Explosion protection (code 0) | without |
