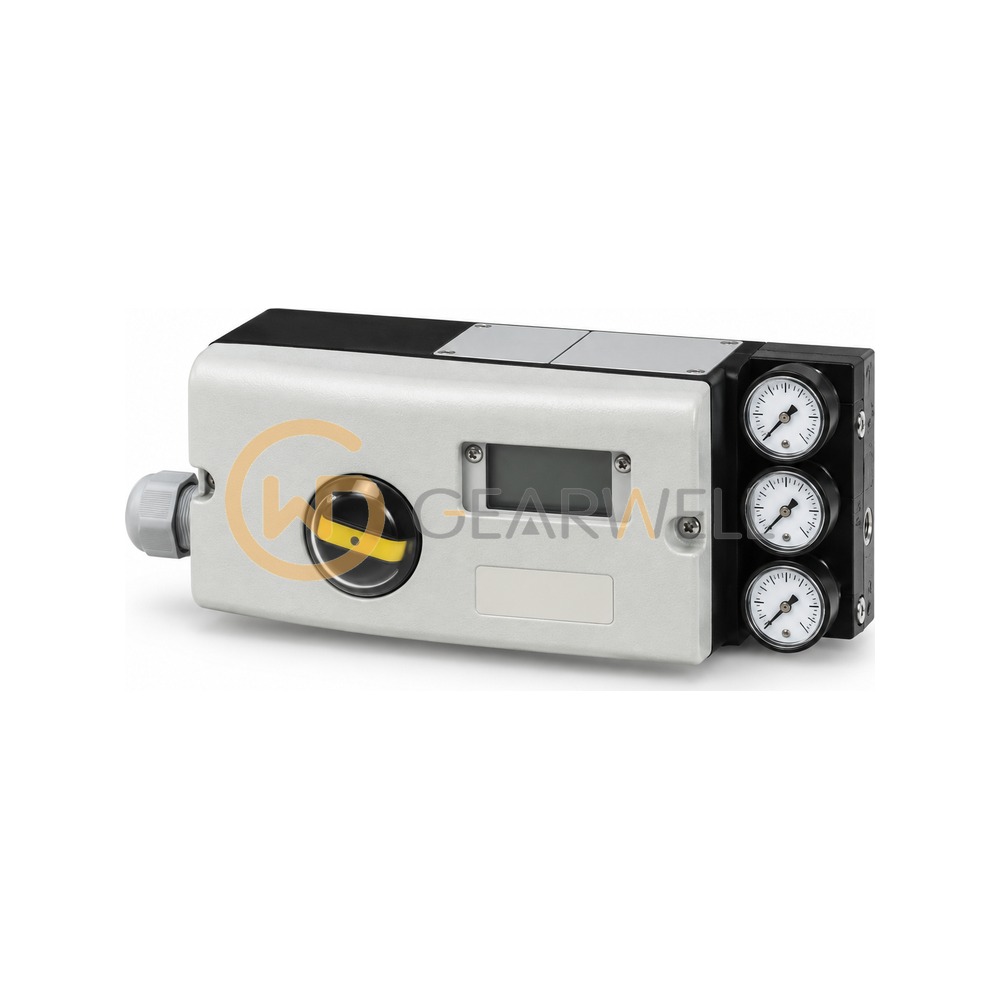

ABB V18345-2021121001 TZIDC Electro-Pneumatic Positioner
- Brand
- ABB
- Model
- V18345-2021121001
- GEARWELL SKU
- GWP-000016350
- Category
- Valves & Manifolds
Key specifications
- Catalog number
- V18345
- Connections (code 2)
- Cable 1/2-14 NPT, air pipe 1/4-18 NPT
- Option module (code 1)
- Analog position feedback 4...20 mA
- Case / mounting (code 20)
- Aluminium IP65 (NEMA 4X), with mechanical position indicator
- Input / communication (code 2)
- 4...20 mA two-wire, LKS plug + FSK module for HART
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ABB V18345-2021121001 TZIDC Electro-Pneumatic Positioner |
|---|---|
| Brand | ABB |
| Model | V18345-2021121001 |
| Category | Valves & Manifolds |
| Catalog number | V18345 |
| Connections (code 2) | Cable 1/2-14 NPT, air pipe 1/4-18 NPT |
| Option module (code 1) | Analog position feedback 4...20 mA |
| Case / mounting (code 20) | Aluminium IP65 (NEMA 4X), with mechanical position indicator |
| Input / communication (code 2) | 4...20 mA two-wire, LKS plug + FSK module for HART |
| Explosion protection (code 1) | ATEX Ex II 2 G EEx ib II C T6 |
| Output / safe position (code 1) | Single acting, fail safe |
| Mechanical kit / design (code 001) | Without mechanical kit; standard design |
