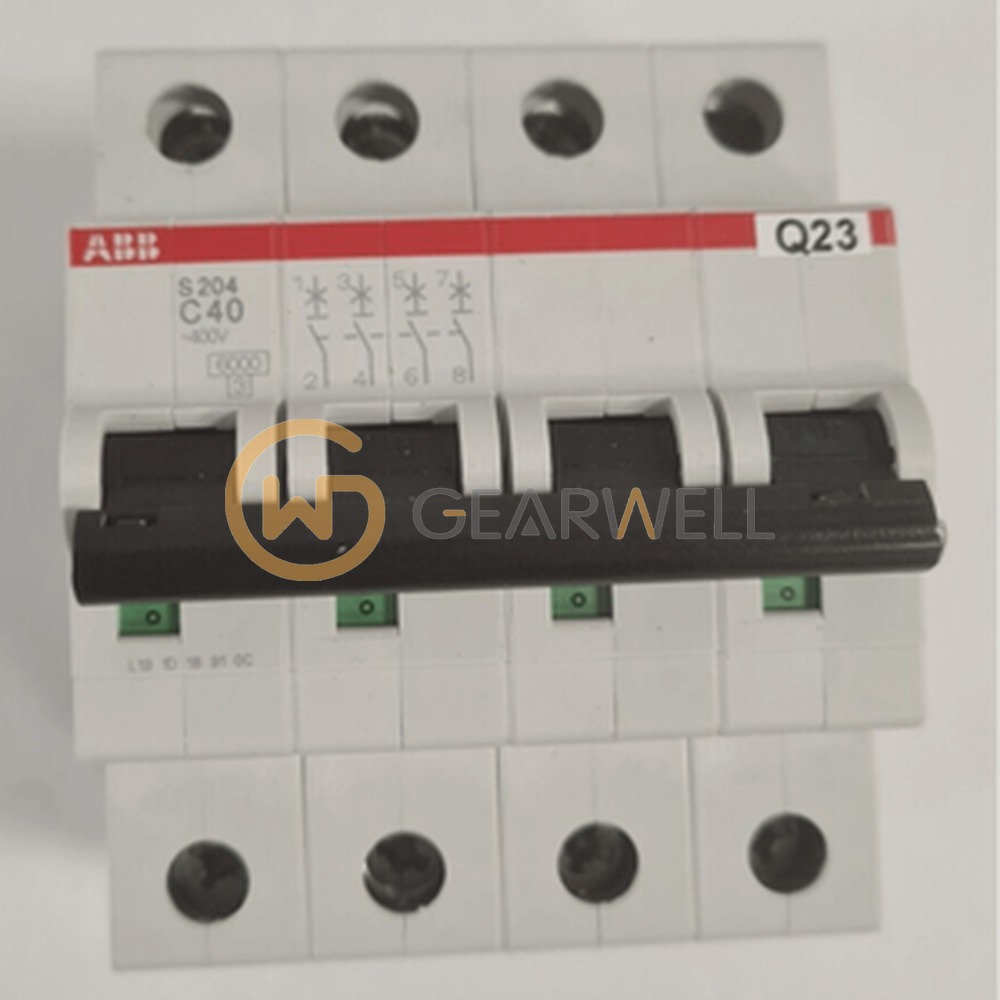

ABB S204 C40 2CDS254001R0404 Miniature circuit breaker

Product overview

The ABB S204-C40 is a 4-pole System pro M compact S200 miniature circuit breaker with C tripping characteristic and 40 A rated current, ABB order code 2CDS254001R0404. It has a rated short-circuit capacity Icn of 6 kA to IEC/EN 60898-1 and is also listed to IEC/EN 60947-2. ABB specifies the C characteristic for protecting circuits against overload and short circuit with resistive and inductive loads with low inrush current, in residential, commercial and industrial installations. The S200 range has a red/green contact position indicator and finger-proof (IP20) twin terminals for cables up to 35 mm².
