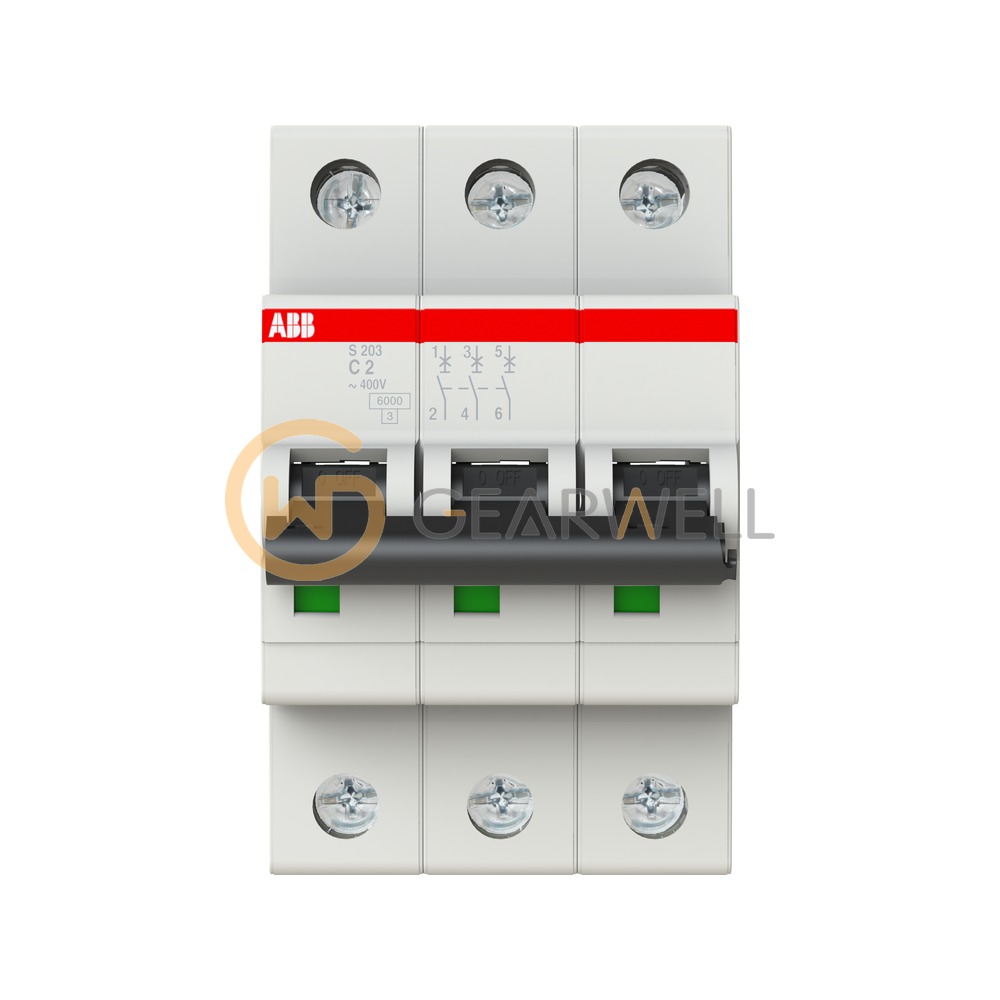

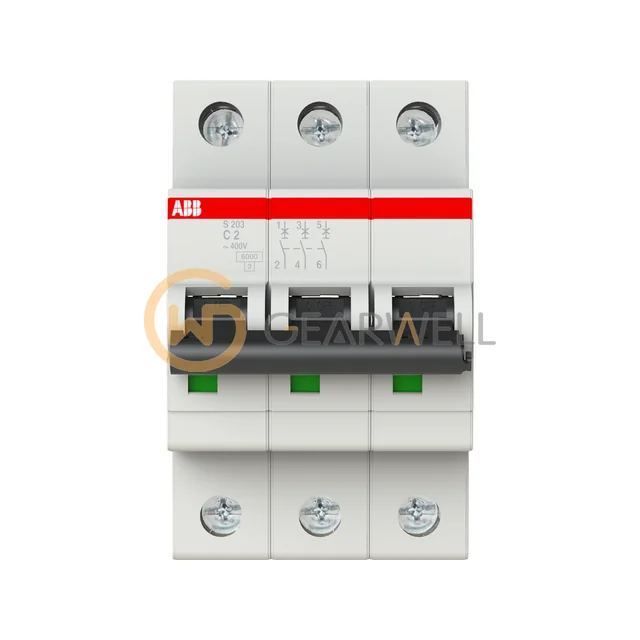

ABB S203-C2 S200 Miniature Circuit Breaker 3P C 2 A
- Brand
- ABB
- Model
- S203-C2
- GEARWELL SKU
- GWP-000011174
- Category
- Circuit Protection
Key specifications
- Width
- 3 modules
- Product ID
- 2CDS253001R0024
- Rated current
- 2 A
- Number of poles
- 3P
- Tripping characteristic
- C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB S203-C2 is a 3-pole System pro M compact S200 miniature circuit breaker with C tripping characteristic and 2 A rated current, ABB order code 2CDS253001R0024. It has a rated short-circuit capacity Icn of 6 kA to IEC/EN 60898-1 and is also listed to IEC/EN 60947-2. ABB specifies the C characteristic for protecting circuits against overload and short circuit with resistive and inductive loads with low inrush current, in residential, commercial and industrial installations. The S200 range has a red/green contact position indicator and finger-proof (IP20) twin terminals for cables up to 35 mm².
Technical reference
| Product name | ABB S203-C2 S200 Miniature Circuit Breaker 3P C 2 A |
|---|---|
| Brand | ABB |
| Model | S203-C2 |
| Category | Circuit Protection |
| Width | 3 modules |
| Product ID | 2CDS253001R0024 |
| Rated current | 2 A |
| Number of poles | 3P |
| Tripping characteristic | C |
| Rated operational voltage | 400 V AC (IEC 60898-1) |
| Rated short-circuit capacity | 6 kA |
