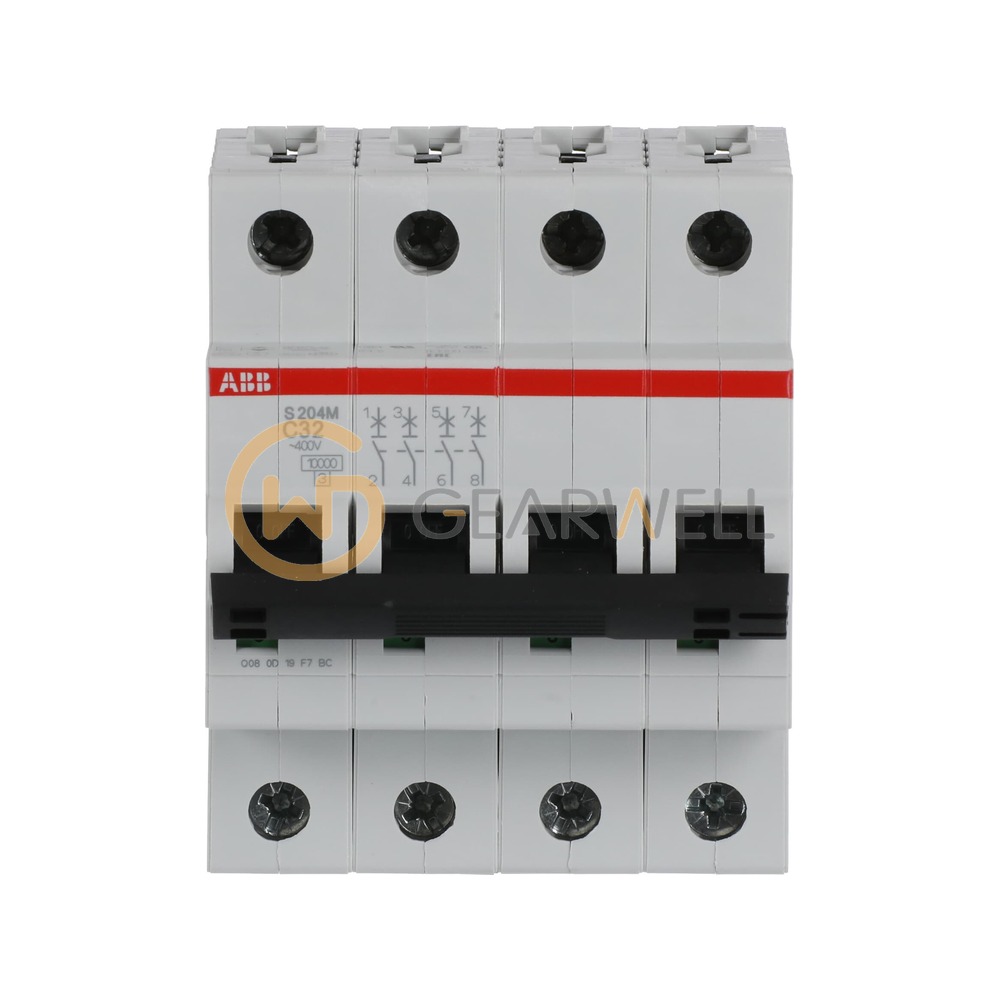

ABB S204M-C32 S200M Miniature Circuit Breaker 4P C 32 A
- Brand
- ABB
- Model
- S204M-C32
- GEARWELL SKU
- GWP-000011175
- Category
- Circuit Protection
Key specifications
- Width
- 4 modules
- Product ID
- 2CDS274001R0324
- Rated current
- 32 A
- Number of poles
- 4P
- Tripping characteristic
- C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB S204M-C32 is a 4-pole System pro M compact S200M miniature circuit breaker with C tripping characteristic and 32 A rated current, ABB order code 2CDS274001R0324. It has a rated short-circuit capacity Icn of 10 kA to IEC/EN 60898-1 and is also listed to IEC/EN 60947-2. ABB specifies the C characteristic for protecting circuits against overload and short circuit with resistive and inductive loads with low inrush current, in residential, commercial and industrial installations. The S200 range has a red/green contact position indicator and finger-proof (IP20) twin terminals for cables up to 35 mm².
Technical reference
| Product name | ABB S204M-C32 S200M Miniature Circuit Breaker 4P C 32 A |
|---|---|
| Brand | ABB |
| Model | S204M-C32 |
| Category | Circuit Protection |
| Width | 4 modules |
| Product ID | 2CDS274001R0324 |
| Rated current | 32 A |
| Number of poles | 4P |
| Tripping characteristic | C |
| Rated operational voltage | 400 V AC (IEC 60898-1) |
| Rated short-circuit capacity | 10 kA |
