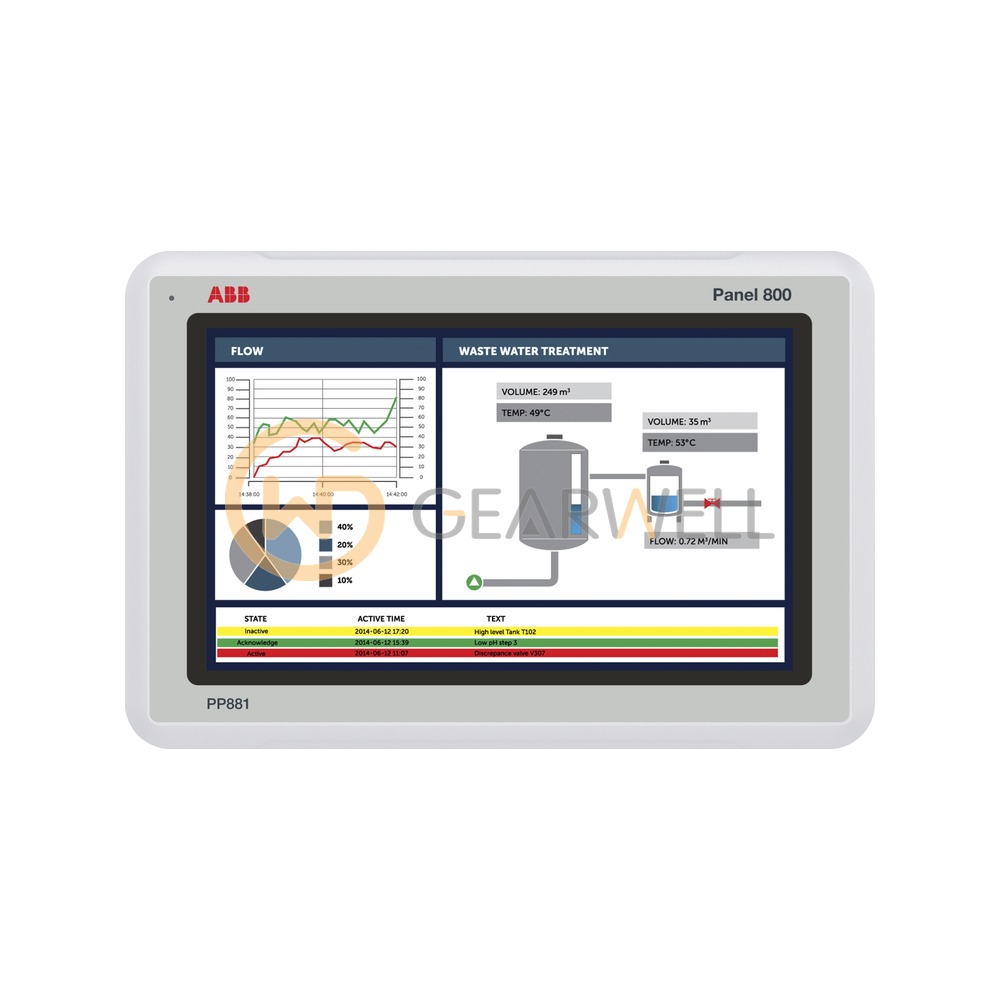

ABB PP881 Panel 800 Standard panel 10 in
- Brand
- ABB
- Model
- PP881
- GEARWELL SKU
- GWP-000014694
- Category
- HMIs & Industrial PCs
Key specifications
- Weight
- 1.65 kg
- Resolution
- 1024 x 600 (16:9)
- Screen size
- 10.1 in
- Configuration tool
- Panel Builder 800 v6.2
- Dimensions (W x H x D)
- 292 x 194 x 52 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PP881 is the PP881 standard panel of ABB Panel 800 Version 6.2 (article number 3BSE092978), with a 10.1" TFT-LCD of 1024 x 600 pixels (16:9), LED backlight at 500 cd/m2 with dimming, and resistive touch. It runs an ARM9 (1GHz) processor with 1.0 GB main memory, 1.5 GB (SSD) application memory and an SD card slot, and has 2 x 10/100 Base-T Ethernet, 2 x USB 2.0 and RS232, RS422/485 and RS485 serial ports. It measures 292 x 194 x 52 mm (cut-out 275 x 177 mm), weighs 1.65 kg, takes +24 VDC (18-32 VDC) at 21.6 W, is rated IP65 front / IP20 rear and operates from -10 °C to +60 °C.
Technical reference
| Product name | ABB PP881 Panel 800 Standard panel 10 in |
|---|---|
| Brand | ABB |
| Model | PP881 |
| Category | HMIs & Industrial PCs |
| Weight | 1.65 kg |
| Resolution | 1024 x 600 (16:9) |
| Screen size | 10.1 in |
| Configuration tool | Panel Builder 800 v6.2 |
| Dimensions (W x H x D) | 292 x 194 x 52 mm |
