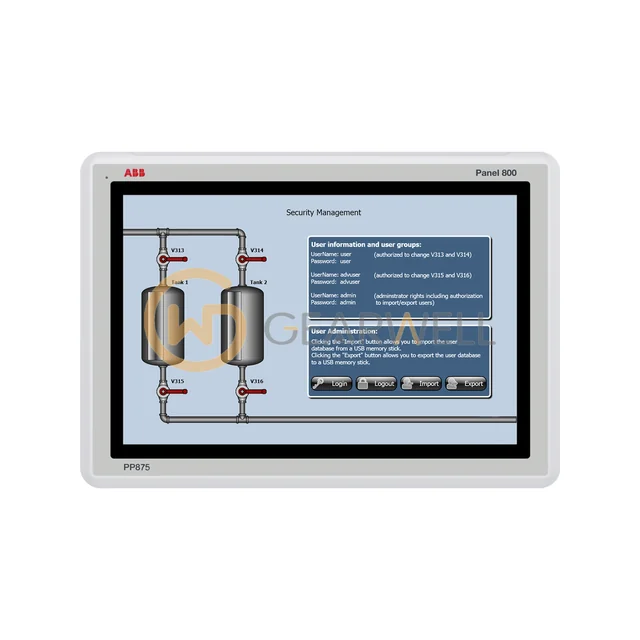

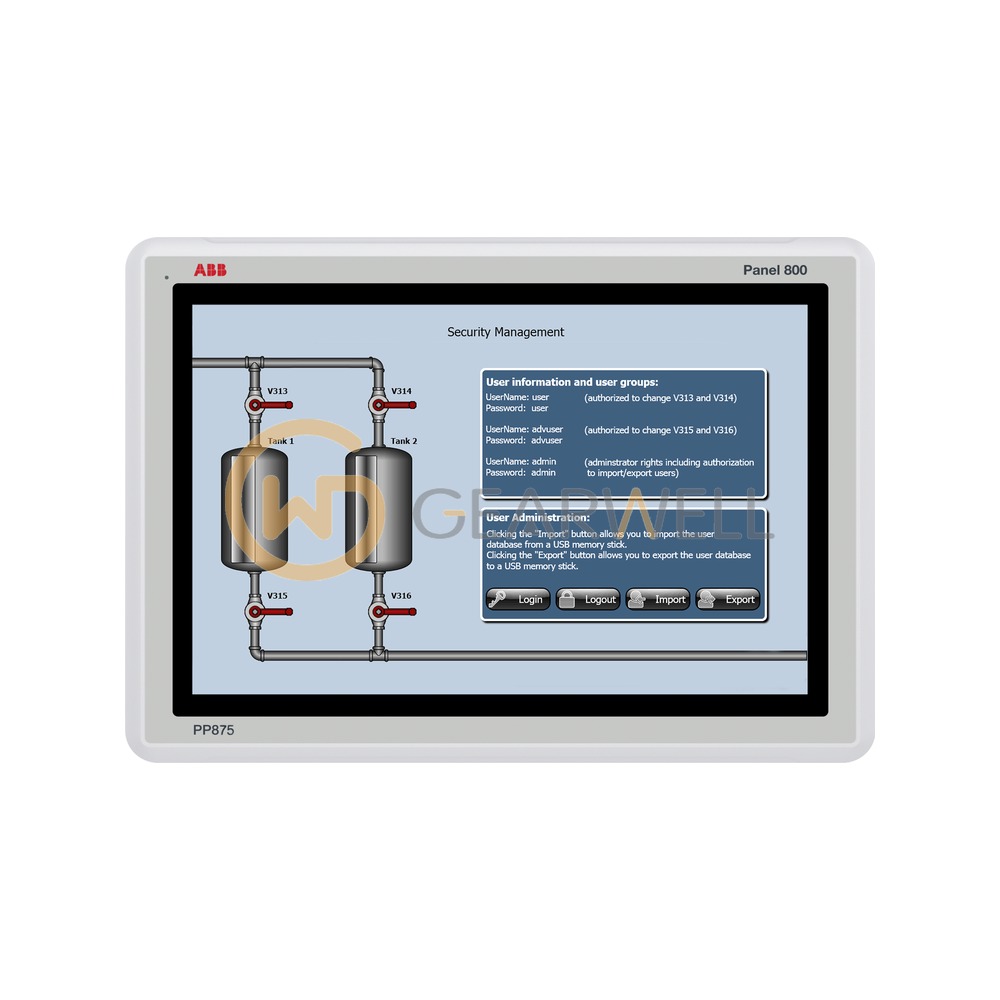

ABB PP875 Panel 800 Standard panel 7 in
- Brand
- ABB
- Model
- PP875
- GEARWELL SKU
- GWP-000014693
- Category
- HMIs & Industrial PCs
Key specifications
- Weight
- 0.8 kg
- Resolution
- 800 x 480 (16:9)
- Screen size
- 7 in
- Configuration tool
- Panel Builder 800 v6.2
- Dimensions (W x H x D)
- 204 x 143 x 50 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PP875 is the PP875 standard panel of ABB Panel 800 Version 6.2 (article number 3BSE092977), with a 7" TFT-LCD of 800 x 480 pixels (16:9), LED backlight at 350 cd/m2 with dimming, and resistive touch. It runs an ARM9 (1GHz) processor with 512 MB main memory, 1.5 GB (SSD) application memory and an SD card slot, and has 1 x 10/100 Base-T Ethernet, 1 x USB 2.0 and RS232, RS422/485 and RS485 serial ports. It measures 204 x 243 x 50 mm (cut-out 187 x 126 mm), weighs 0.8 kg, takes +24 VDC (18-32 VDC) at 14.4 W, is rated IP65 front / IP20 rear and operates from -10 °C to +60 °C.
Technical reference
| Product name | ABB PP875 Panel 800 Standard panel 7 in |
|---|---|
| Brand | ABB |
| Model | PP875 |
| Category | HMIs & Industrial PCs |
| Weight | 0.8 kg |
| Resolution | 800 x 480 (16:9) |
| Screen size | 7 in |
| Configuration tool | Panel Builder 800 v6.2 |
| Dimensions (W x H x D) | 204 x 143 x 50 mm |
