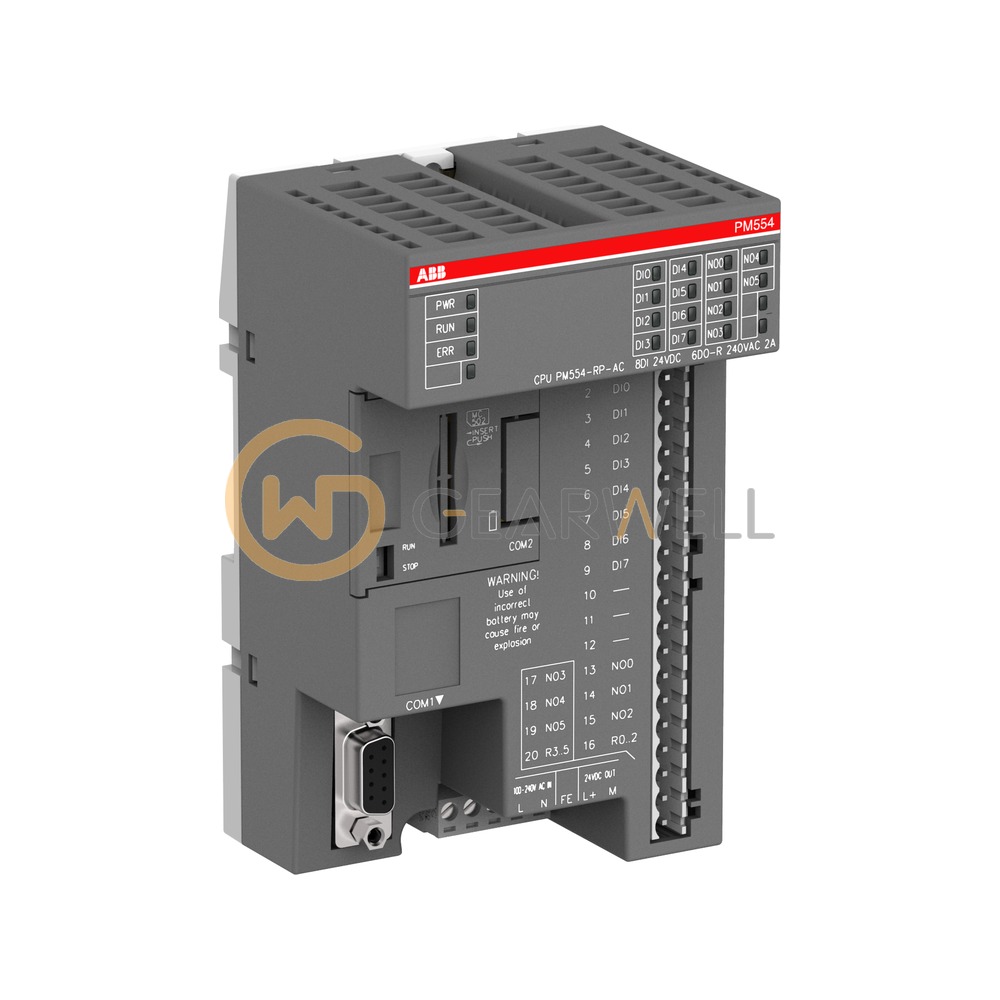

ABB PM554-RP-AC AC500-eCo Programmable logic controller (CPU)
- Brand
- ABB
- Model
- PM554-RP-AC
- GEARWELL SKU
- GWP-000014687
- Category
- PLCs & I/O
Key specifications
- Interfaces
- 1 x RS485
- Net weight
- 0.339 kg
- Option slots
- 2
- Digital inputs
- 8
- Program memory
- 128 kB
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PM554-RP-AC is an AC500-eCo CPU (order code 1SAP120800R0001) with 128 kB program memory, onboard 8 digital inputs and 6 relay outputs, no integrated communication, and a 100-240 V AC supply; weight is 0.400 kg. The AC500-eCo CPUs have 1 RS485 serial interface (2nd is optional), are centrally expandable with up to 10 I/O modules and take an optional SD card adapter.
Technical reference
| Product name | ABB PM554-RP-AC AC500-eCo Programmable logic controller (CPU) |
|---|---|
| Brand | ABB |
| Model | PM554-RP-AC |
| Category | PLCs & I/O |
| Interfaces | 1 x RS485 |
| Net weight | 0.339 kg |
| Option slots | 2 |
| Digital inputs | 8 |
| Program memory | 128 kB |
| Supply voltage | 100...240 V AC |
| Digital outputs | 6 relay |
| Dimensions (W x H x D) | 82 x 135 x 74 mm |
