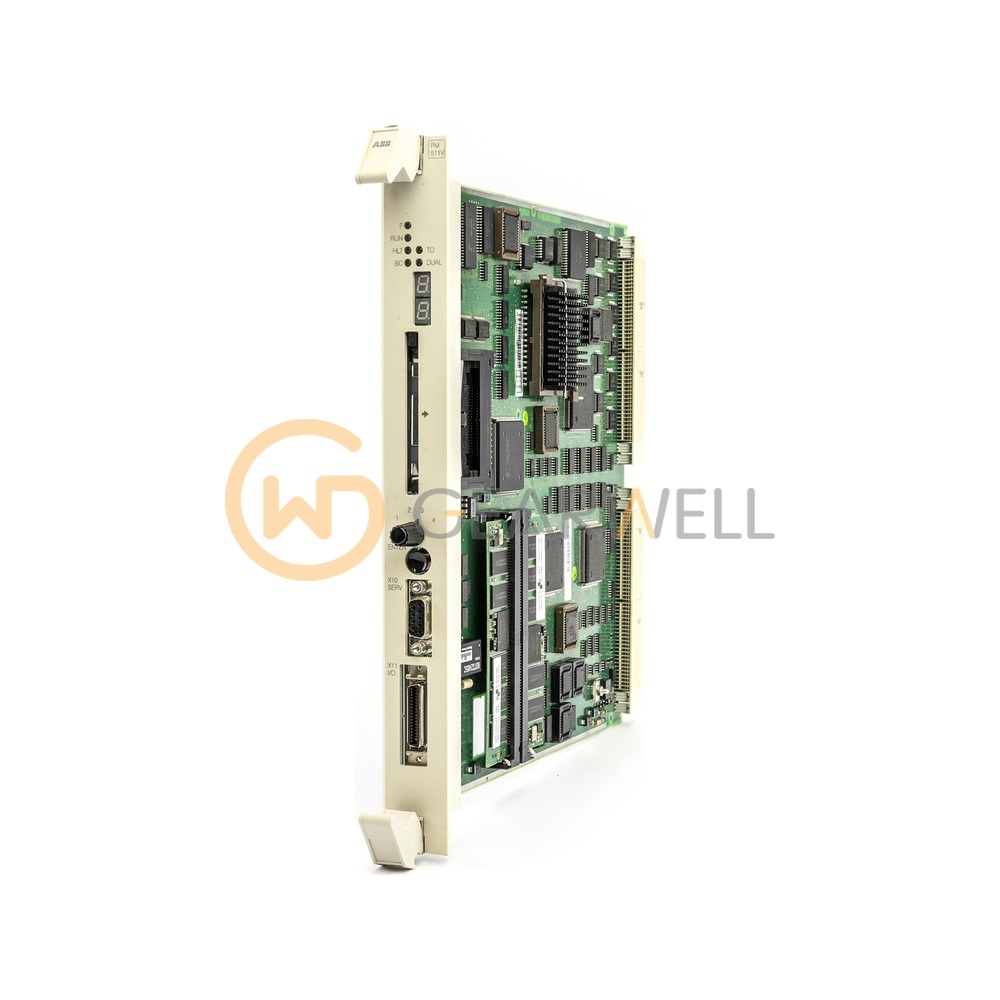

ABB PM511V16 Processor module
- Brand
- ABB
- Model
- PM511V16
- GEARWELL SKU
- GWP-000014424
- Category
- PLCs & I/O
Key specifications
- Description
- PM511V16 Processor Module
- Type designation
- PM511V16
- Product net width
- 270 mm
- Product net height
- 27 mm
- Product net weight
- 0.8 kg
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PM511V16 is a PM511 processor module. It is the CPU board of the Advant Controller 450, a high-end process controller of Advant OCS with Master software that is programmed graphically in AMPL. Up to two PM511 boards can be fitted for hot standby CPU redundancy with bumpless changeover in less than 25 ms. The AC 450 data sheet gives 8 or 16 MB primary memory (approx. 5,4 or 13,4 MB available for the application); confirm the memory of this variant on the board label.
Technical reference
| Product name | ABB PM511V16 Processor module |
|---|---|
| Brand | ABB |
| Model | PM511V16 |
| Category | PLCs & I/O |
| Description | PM511V16 Processor Module |
| Type designation | PM511V16 |
| Product net width | 270 mm |
| Product net height | 27 mm |
| Product net weight | 0.8 kg |
| Product net depth/length | 274.5 mm |
