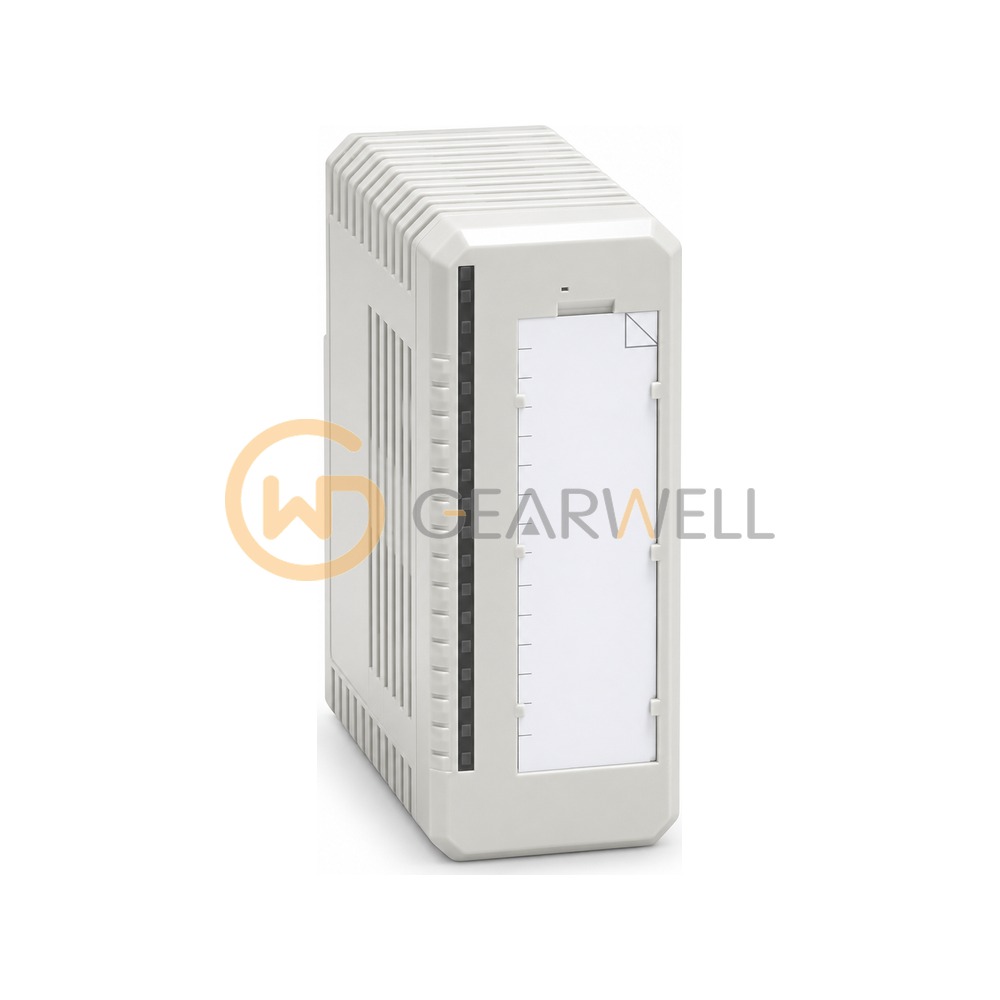

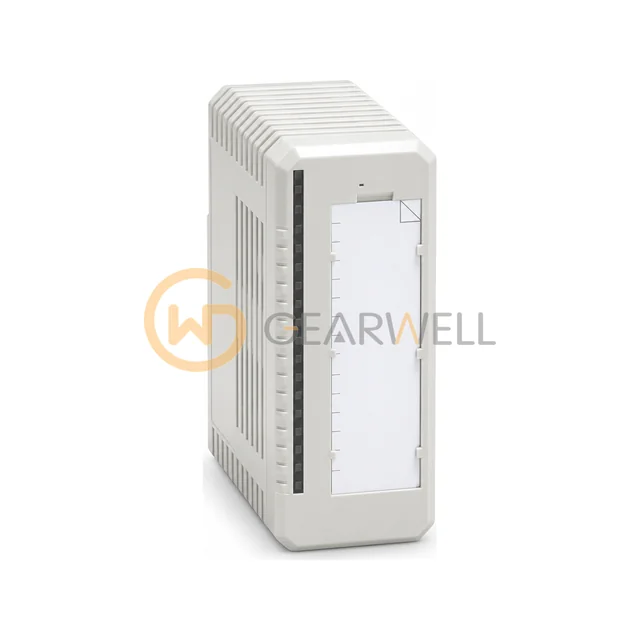

ABB DO815 S800 Digital Output Module
- Brand
- ABB
- Model
- DO815
- GEARWELL SKU
- GWP-000006742
- Category
- PLCs & I/O
Key specifications
- Signal
- 24 V DC (10-32 V DC)
- Channels
- 8
- Grouping
- Two isolated groups of 4 channels
- Signal type
- High-side driver, current limiting
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB DO815 is an S800 I/O digital output module with wire-fault detection: 8 transistor outputs in 2 groups of 4, 24 V d.c., max 2 A, current source and short-circuit-proof. S800 I/O runs on 24 V d.c. (19.2 - 30 V), is rated IP20 and +5 to +55 °C operating, and takes up to 24 I/O modules per I/O station.
Technical reference
| Product name | ABB DO815 S800 Digital Output Module |
|---|---|
| Brand | ABB |
| Model | DO815 |
| Category | PLCs & I/O |
| Signal | 24 V DC (10-32 V DC) |
| Channels | 8 |
| Grouping | Two isolated groups of 4 channels |
| Signal type | High-side driver, current limiting |
