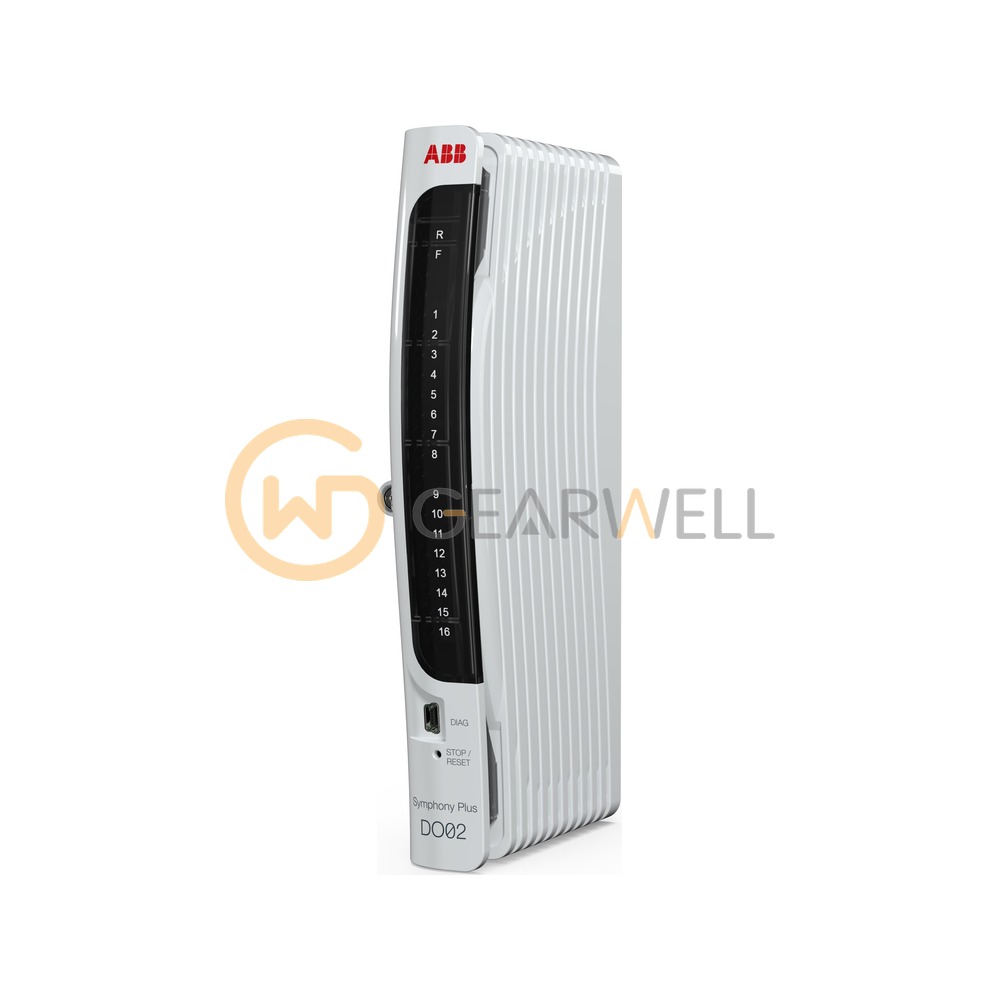

ABB DO02 Symphony Plus SD Series I/O Digital output module
- Brand
- ABB
- Model
- DO02
- GEARWELL SKU
- GWP-000014545
- Category
- PLCs & I/O
Key specifications
- Channels
- 16
- Isolation
- 1500 V, 1 min, channel-to-channel
- Protection
- Short-circuit detection, overcurrent protection
- Module power
- 24 VDC ±10%, 65 mA typ / 73 mA max
- Output rating
- 250 mA @ 24 V DC / 125 mA @ 48 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB DO02 is the Symphony Plus SD Series DO02 digital output module with up to 16 digital open-collector control outputs. It has all features of the DO01 plus output overcurrent protection, overcurrent status monitoring and indication, and output read back status monitoring. It is used with HBS01-FPH, HBS01-FPN, HBS01-EPD, VBS01-FPH or VBS01-EPD bases.
Technical reference
| Product name | ABB DO02 Symphony Plus SD Series I/O Digital output module |
|---|---|
| Brand | ABB |
| Model | DO02 |
| Category | PLCs & I/O |
| Channels | 16 |
| Isolation | 1500 V, 1 min, channel-to-channel |
| Protection | Short-circuit detection, overcurrent protection |
| Module power | 24 VDC ±10%, 65 mA typ / 73 mA max |
| Output rating | 250 mA @ 24 V DC / 125 mA @ 48 V DC |
| Dimensions (W x H x D) | 34 x 118 x 190 mm |
