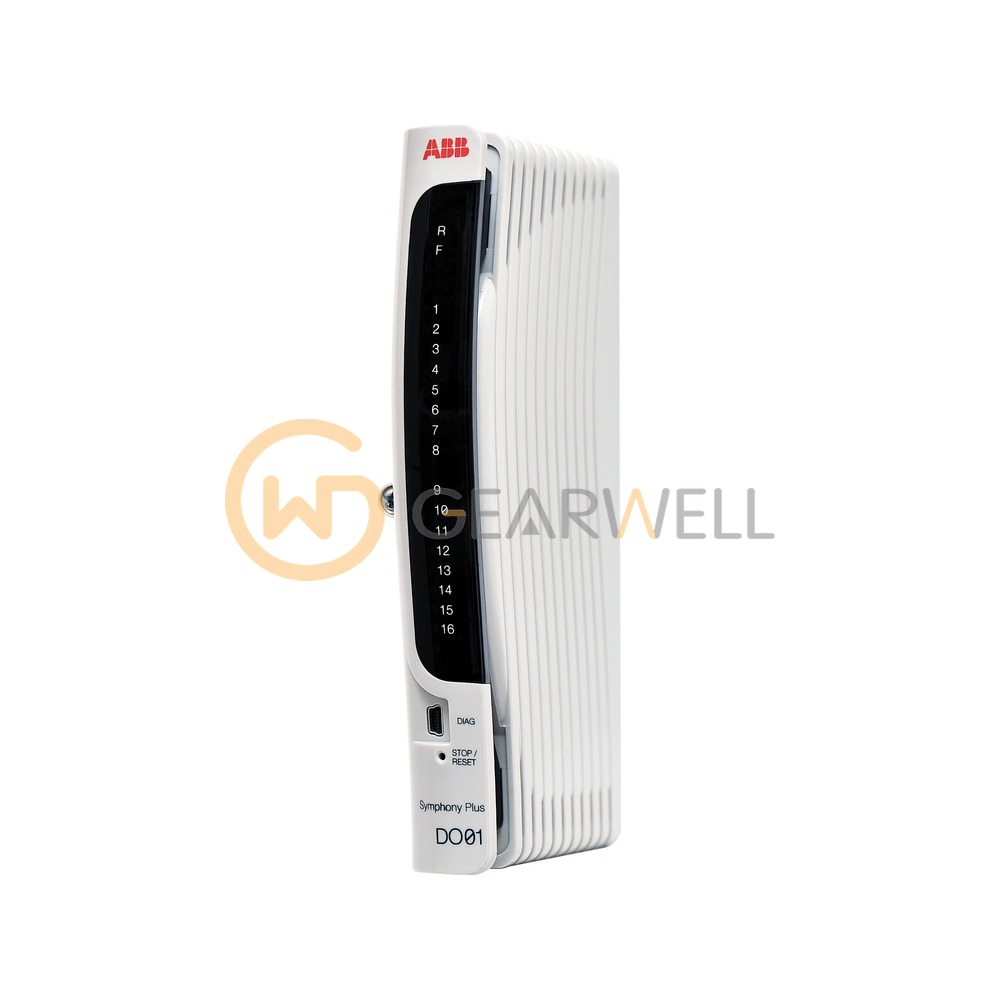

ABB DO01 Symphony Plus SD Series I/O Digital output module
- Brand
- ABB
- Model
- DO01
- GEARWELL SKU
- GWP-000014544
- Category
- PLCs & I/O
Key specifications
- Channels
- 16
- Isolation
- 1500 V, 1 min, channel-to-channel
- Output type
- Open-collector transistor, sink or source
- Module power
- 24 VDC ±10%, 65 mA typ / 73 mA max
- Output rating
- max 250 mA @ 24-48 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB DO01 is the Symphony Plus SD Series DO01 digital output module with 16 digital open-collector outputs. Each channel is optically isolated and can switch 24 VDC at 250 mA or 48 VDC at 250 mA, and it can drive electromechanical relays through a relay assembly. It is used with HBS01-FPH, HBS01-FPN, HBS01-EPD, VBS01-FPH or VBS01-EPD bases.
Technical reference
| Product name | ABB DO01 Symphony Plus SD Series I/O Digital output module |
|---|---|
| Brand | ABB |
| Model | DO01 |
| Category | PLCs & I/O |
| Channels | 16 |
| Isolation | 1500 V, 1 min, channel-to-channel |
| Output type | Open-collector transistor, sink or source |
| Module power | 24 VDC ±10%, 65 mA typ / 73 mA max |
| Output rating | max 250 mA @ 24-48 V DC |
| Dimensions (W x H x D) | 34 x 118 x 190 mm |
