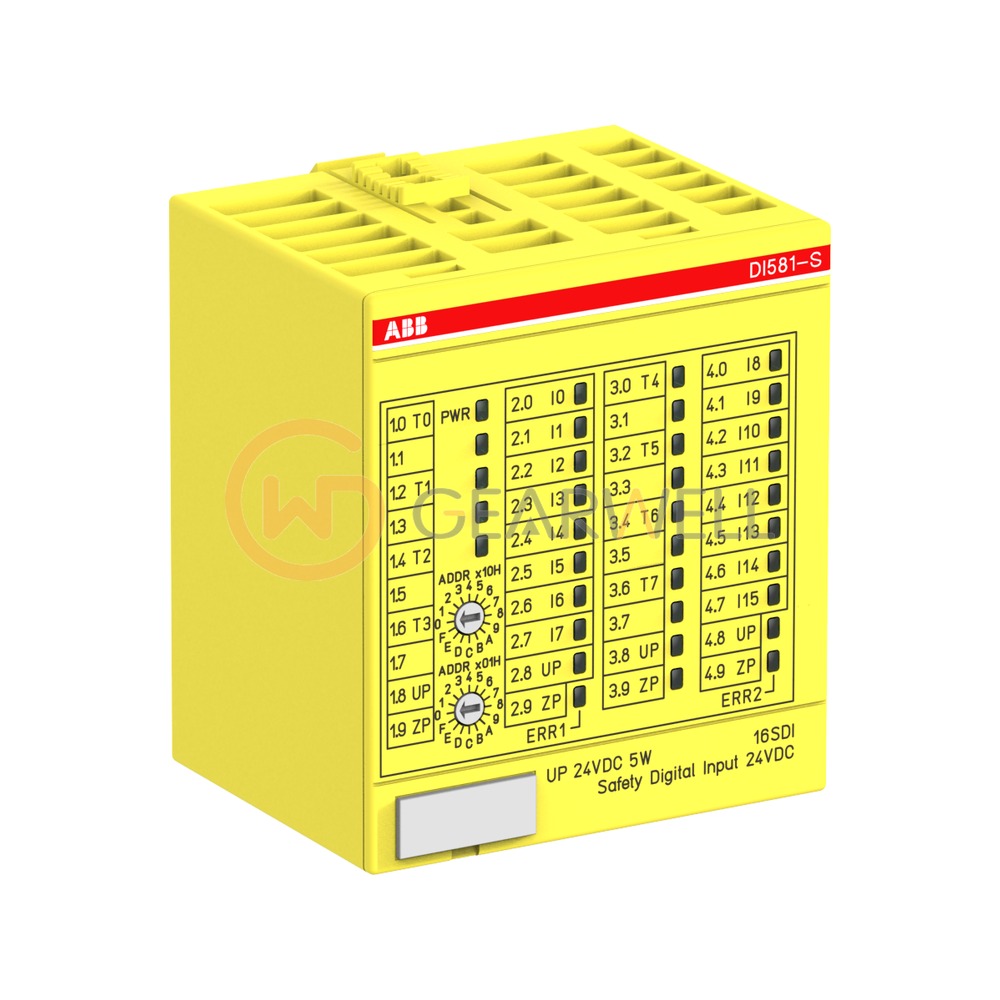

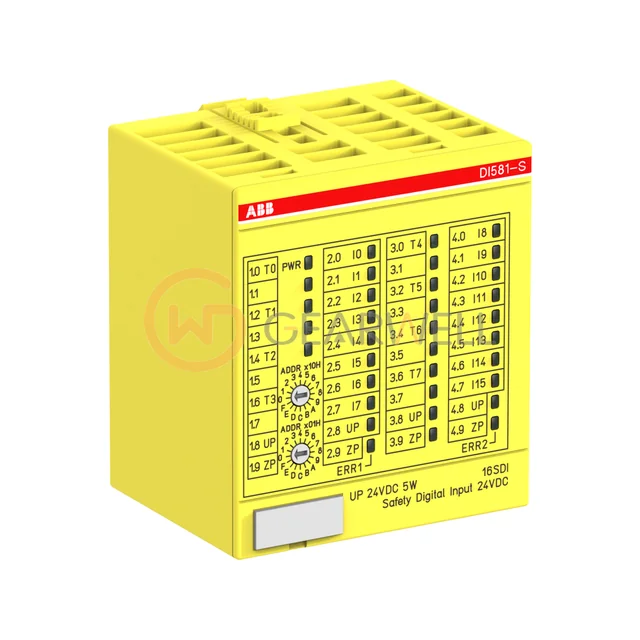

ABB DI581-S AC500-S safety I/O (S500-S) Safety digital input module
- Brand
- ABB
- Model
- DI581-S
- GEARWELL SKU
- GWP-000014874
- Category
- PLCs & I/O
Key specifications
- Delay time
- 1 ... 500 ms
- Net weight
- 0.122 kg
- Input current
- 7 mA
- Input voltage
- 24 V DC (0 ... 30 V max.)
- Pulse outputs
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB DI581-S is the S500 safety digital input module for the AC500-S safety PLC (order code 1SAP284000R0001), with 16 inputs for SIL2 or 8 inputs for SIL3. It mounts on the TU582-S spring terminal unit for safety I/O modules and weighs 0.130 kg.
Technical reference
| Product name | ABB DI581-S AC500-S safety I/O (S500-S) Safety digital input module |
|---|---|
| Brand | ABB |
| Model | DI581-S |
| Category | PLCs & I/O |
| Delay time | 1 ... 500 ms |
| Net weight | 0.122 kg |
| Input current | 7 mA |
| Input voltage | 24 V DC (0 ... 30 V max.) |
| Pulse outputs | 8 |
| Power consumption | 4.368 W |
| Degree of protection | IP20 |
| Safety digital inputs | 16 (SIL2) / 8 (SIL3) |
