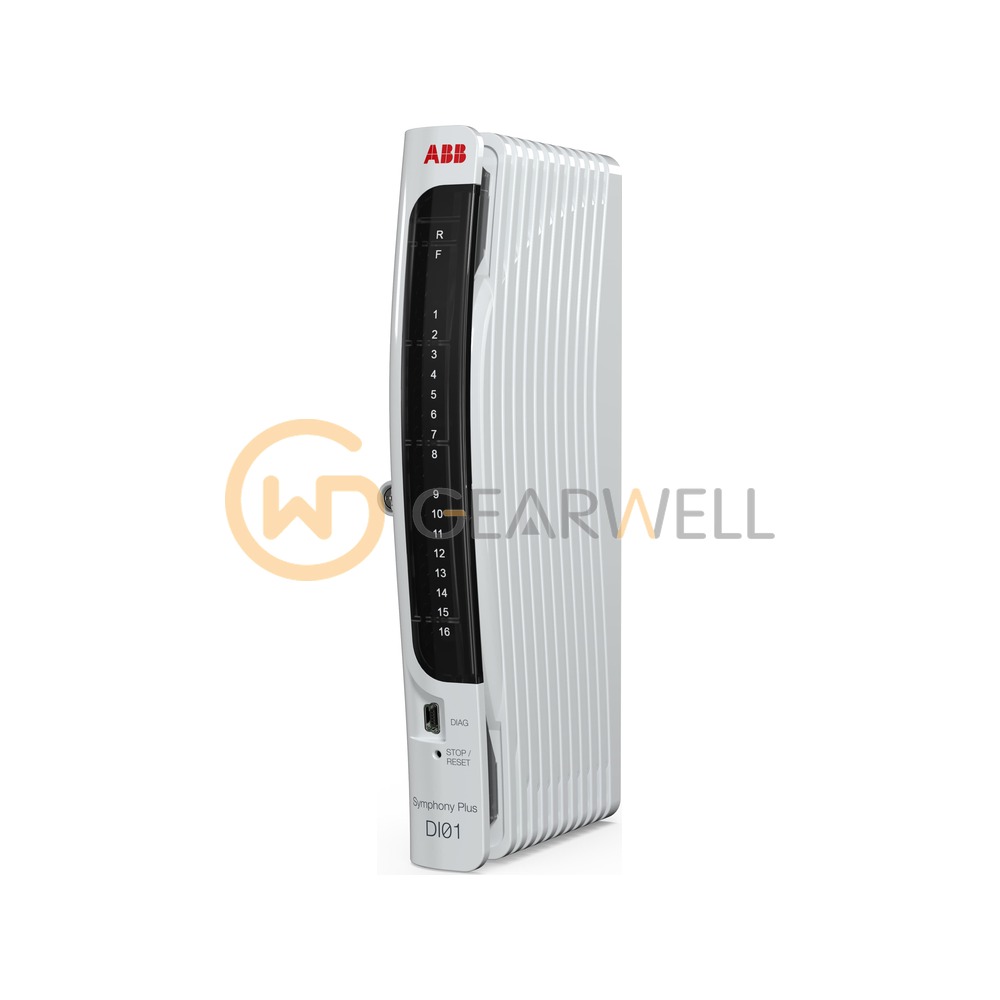

ABB DI01 Symphony Plus SD Series I/O Digital input module
- Brand
- ABB
- Model
- DI01
- GEARWELL SKU
- GWP-000014539
- Category
- PLCs & I/O
Key specifications
- Channels
- 16
- Isolation
- 1500 V, 1 min, channel-to-channel
- Module power
- 24 VDC ±10%, 67 mA typ / 85 mA max
- Input voltage
- 24 or 48 (per channel) V DC
- SOE resolution
- 1 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB DI01 is the Symphony Plus SD Series DI01 digital input module, which processes up to 16 low-voltage digital field inputs. Each channel is optically isolated, accepts 24 VDC or 48 VDC and can be programmed as an SOE point with 1 ms time stamping. The controller configures it with function code 221 (I/O Device Definition) and 224 (Digital In/Channel). It is used with HBS01-FPH, HBS01-FPN, HBS01-EPD, VBS01-FPH or VBS01-EPD bases.
Technical reference
| Product name | ABB DI01 Symphony Plus SD Series I/O Digital input module |
|---|---|
| Brand | ABB |
| Model | DI01 |
| Category | PLCs & I/O |
| Channels | 16 |
| Isolation | 1500 V, 1 min, channel-to-channel |
| Module power | 24 VDC ±10%, 67 mA typ / 85 mA max |
| Input voltage | 24 or 48 (per channel) V DC |
| SOE resolution | 1 ms |
| Dimensions (W x H x D) | 34 x 118 x 190 mm |
| Max field cable length | 600 m |
