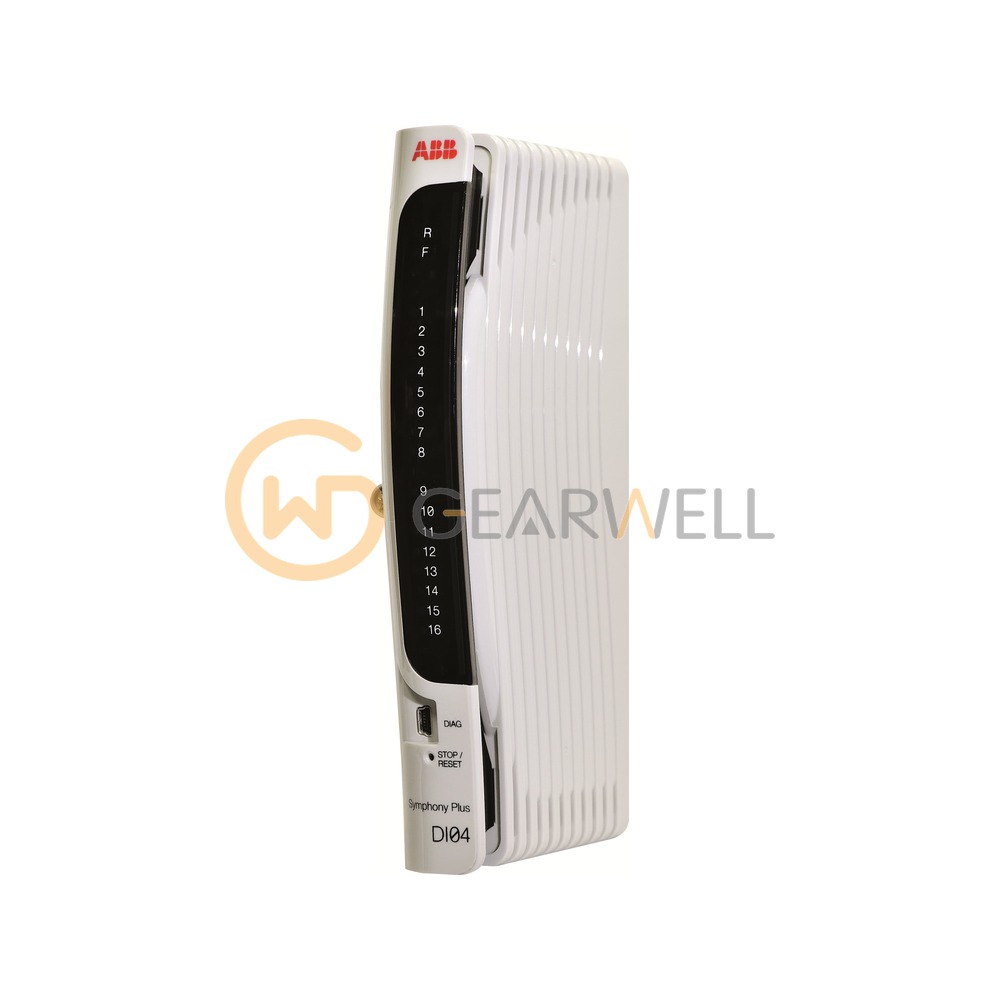

ABB DI04 Symphony Plus SD Series I/O Digital input module
- Brand
- ABB
- Model
- DI04
- GEARWELL SKU
- GWP-000014541
- Category
- PLCs & I/O
Key specifications
- SOE
- No
- Weight
- 0.23 kg
- Channels
- 16
- Module power
- 24 VDC ±10%, 66 mA typ / 85 mA max
- Input voltage
- 48 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB DI04 is the Symphony Plus SD Series DI04 digital input module, which processes up to 16 low voltage digital field inputs. Each channel is optically isolated and accepts 48 VDC only; the DI04 does not support SOE. It is used with HBS01-FPH, HBS01-FPN, HBS01-EPD, VBS01-FPH or VBS01-EPD bases.
Technical reference
| Product name | ABB DI04 Symphony Plus SD Series I/O Digital input module |
|---|---|
| Brand | ABB |
| Model | DI04 |
| Category | PLCs & I/O |
| SOE | No |
| Weight | 0.23 kg |
| Channels | 16 |
| Module power | 24 VDC ±10%, 66 mA typ / 85 mA max |
| Input voltage | 48 V DC |
| Turn ON / OFF voltage | 33.5 / 33.0 V |
| Dimensions (W x H x D) | 34 x 118 x 190 mm |
