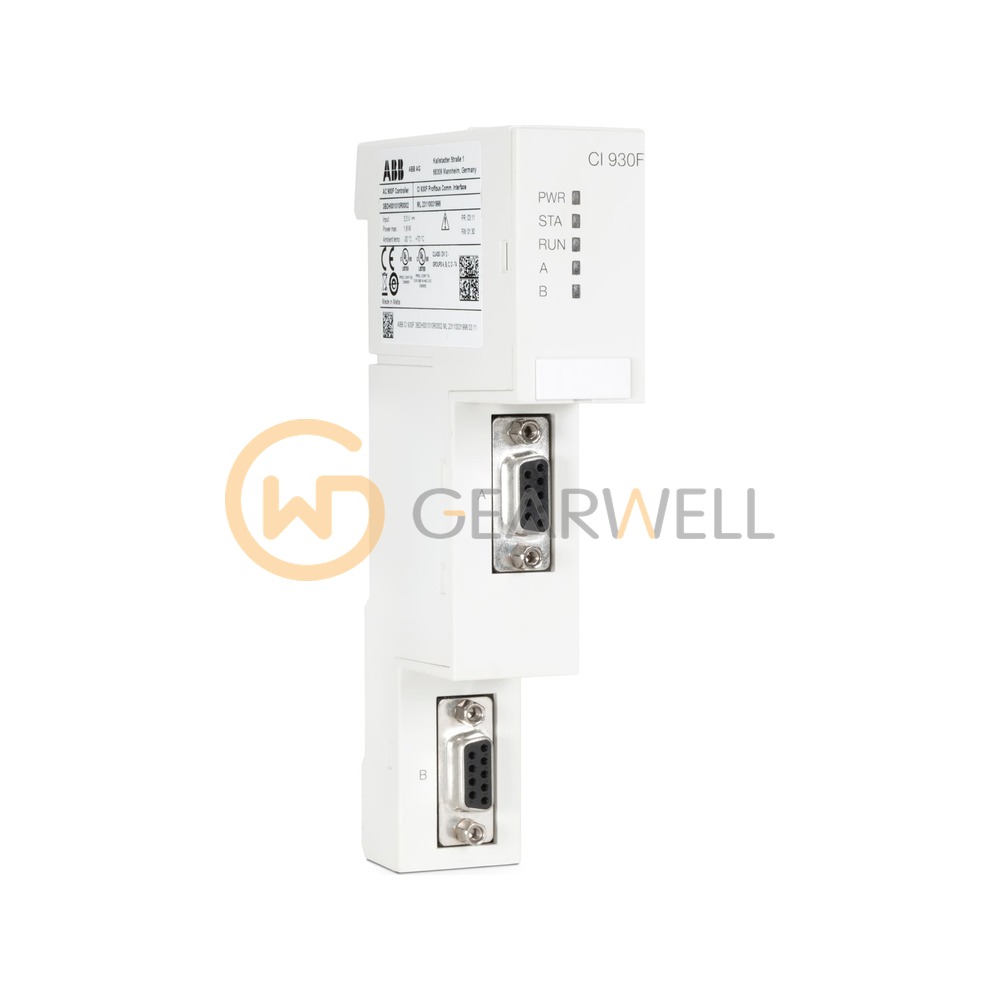

ABB CI 930F AC 900F (Freelance) PROFIBUS DP master module
- Brand
- ABB
- Model
- CI 930F
- GEARWELL SKU
- GWP-000014535
- Category
- Industrial Communication
Key specifications
- Protocol
- PROFIBUS DP-V0/V1 master
- Connectors
- 2 x D-Sub 9-pole
- Line redundancy
- Supported, lines A/B
- Product net width
- 28 mm
- Transmission rate
- 12 Mbit/s
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CI 930F is the Freelance CI 930F PROFIBUS DP master communication interface (article no. 3BDH001010R0002), DP-V0/V1 at 9.6 kBit/s to 12 MBit/s, with built-in PROFIBUS line redundancy on two 9-pole D-Sub connectors (line A/B) and up to 126 slaves. It is used with the PM 904F, PM 902F or PM 901F CPU, supports controller redundancy and hot configuration in run, and draws 80 mA (1.8 W) from the CPU's 24 V terminal. Software version 2013 or higher is mandatory.
Technical reference
| Product name | ABB CI 930F AC 900F (Freelance) PROFIBUS DP master module |
|---|---|
| Brand | ABB |
| Model | CI 930F |
| Category | Industrial Communication |
| Protocol | PROFIBUS DP-V0/V1 master |
| Connectors | 2 x D-Sub 9-pole |
| Line redundancy | Supported, lines A/B |
| Product net width | 28 mm |
| Transmission rate | 12 Mbit/s |
| Product net height | 152 mm |
| Product net weight | 0.15 kg |
| Product net depth/length | 75 mm |
