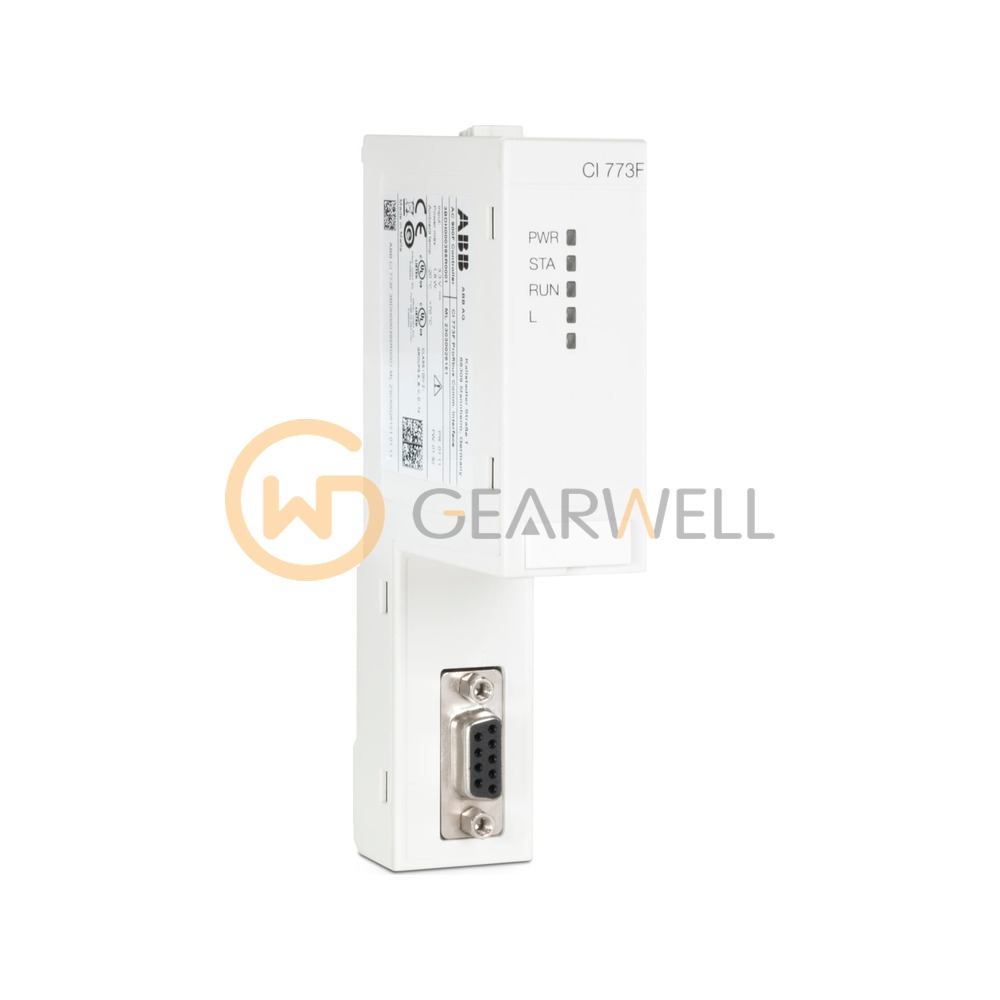

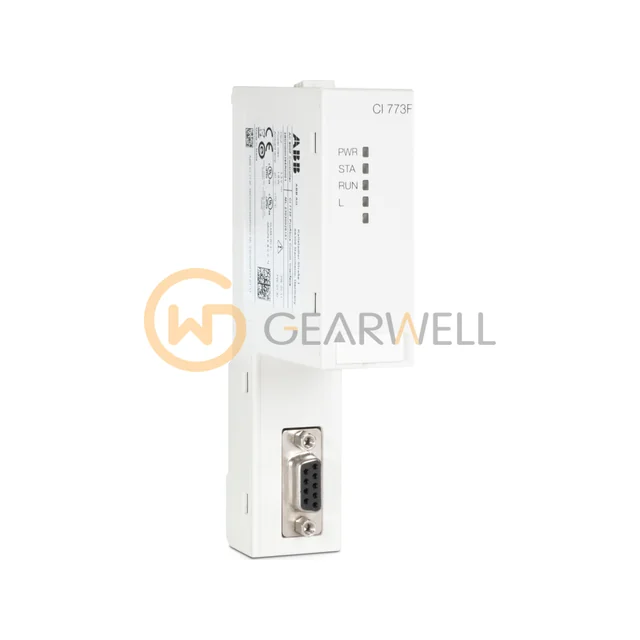

ABB CI 773F AC 700F / AC 900F (Freelance) PROFIBUS DP master module
- Brand
- ABB
- Model
- CI 773F
- GEARWELL SKU
- GWP-000014532
- Category
- Industrial Communication
Key specifications
- Protocol
- PROFIBUS DP-V0/V1 master
- Connector
- 1 x D-Sub 9-pole
- Line redundancy
- Via external RLM02
- Product net width
- 28 mm
- Transmission rate
- 12 Mbit/s
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CI 773F is the Freelance CI 773F PROFIBUS DP master communication interface (article no. 3BDH000395R0001), DP-V0/V1 at 9.6 kBit/s to 12 MBit/s, with one 9-pole D-Sub connector and up to 126 slaves. It fits one coupler bus slot of a PM 904F, PM 902F or PM 901F CPU or the TB 711F terminal base, supports controller redundancy but not line redundancy, draws 80 mA from the CPU's 24 V terminal and weighs 96 g.
Technical reference
| Product name | ABB CI 773F AC 700F / AC 900F (Freelance) PROFIBUS DP master module |
|---|---|
| Brand | ABB |
| Model | CI 773F |
| Category | Industrial Communication |
| Protocol | PROFIBUS DP-V0/V1 master |
| Connector | 1 x D-Sub 9-pole |
| Line redundancy | Via external RLM02 |
| Product net width | 28 mm |
| Transmission rate | 12 Mbit/s |
| Product net height | 135 mm |
| Product net weight | 0.1 kg |
| Product net depth/length | 75 mm |
