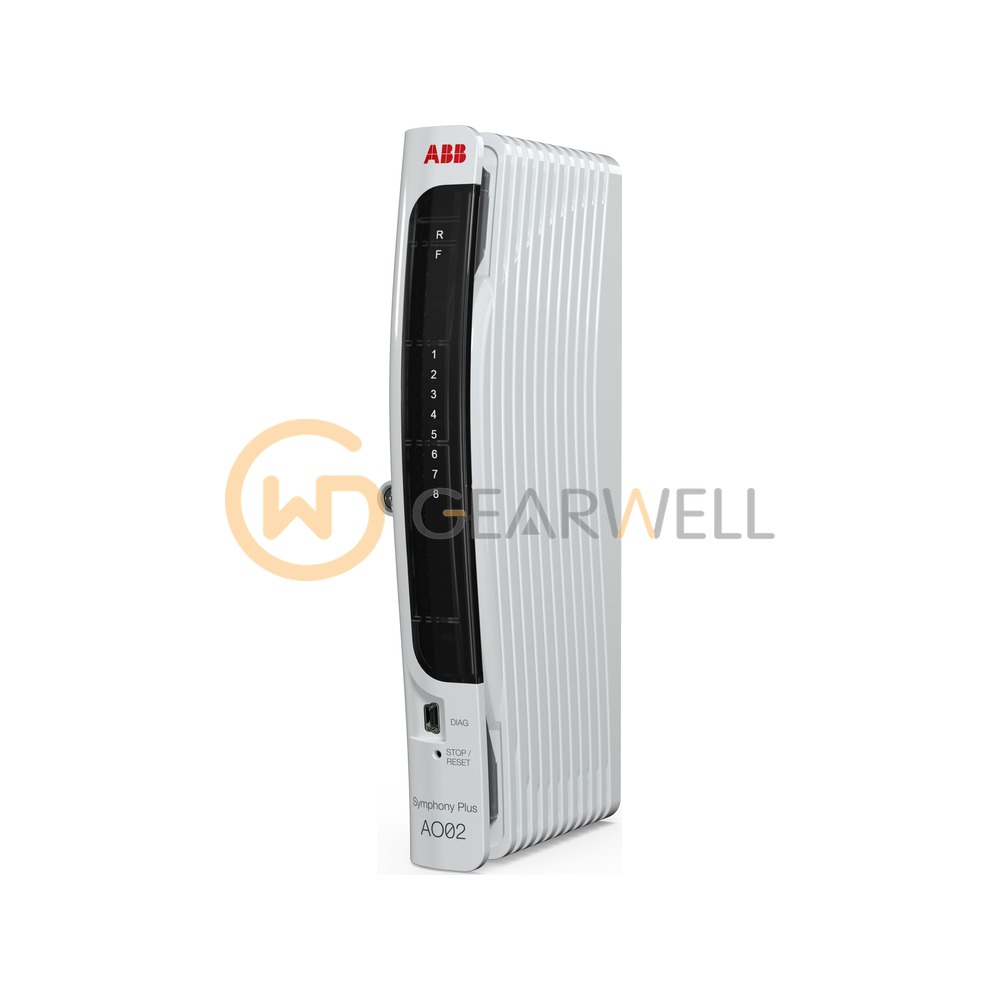

ABB AO02 Symphony Plus SD Series I/O Analog output module with HART
- Brand
- ABB
- Model
- AO02
- GEARWELL SKU
- GWP-000014528
- Category
- PLCs & I/O
Key specifications
- HART
- 1 HART modem for both groups
- Isolation
- 2 x 8 channels group isolated
- Channel type
- AO
- Output signals
- 4-20 mA, 1-5 V DC
- Product net width
- 34 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB AO02 is the Symphony Plus SD Series AO02 HART analog output module, which processes up to 16 high level analog control outputs, each individually programmable for current or voltage, with output read back to the field. The controller configures it with function code 221 (I/O Device Definition) and function code 223 (Analog Out/Channel). It is used with the HBS01-EPD or VBS01-EPD base.
Technical reference
| Product name | ABB AO02 Symphony Plus SD Series I/O Analog output module with HART |
|---|---|
| Brand | ABB |
| Model | AO02 |
| Category | PLCs & I/O |
| HART | 1 HART modem for both groups |
| Isolation | 2 x 8 channels group isolated |
| Channel type | AO |
| Output signals | 4-20 mA, 1-5 V DC |
| Product net width | 34 mm |
| Product net height | 118 mm |
| Product net depth/length | 190 mm |
| Number of output channels | 16 |
