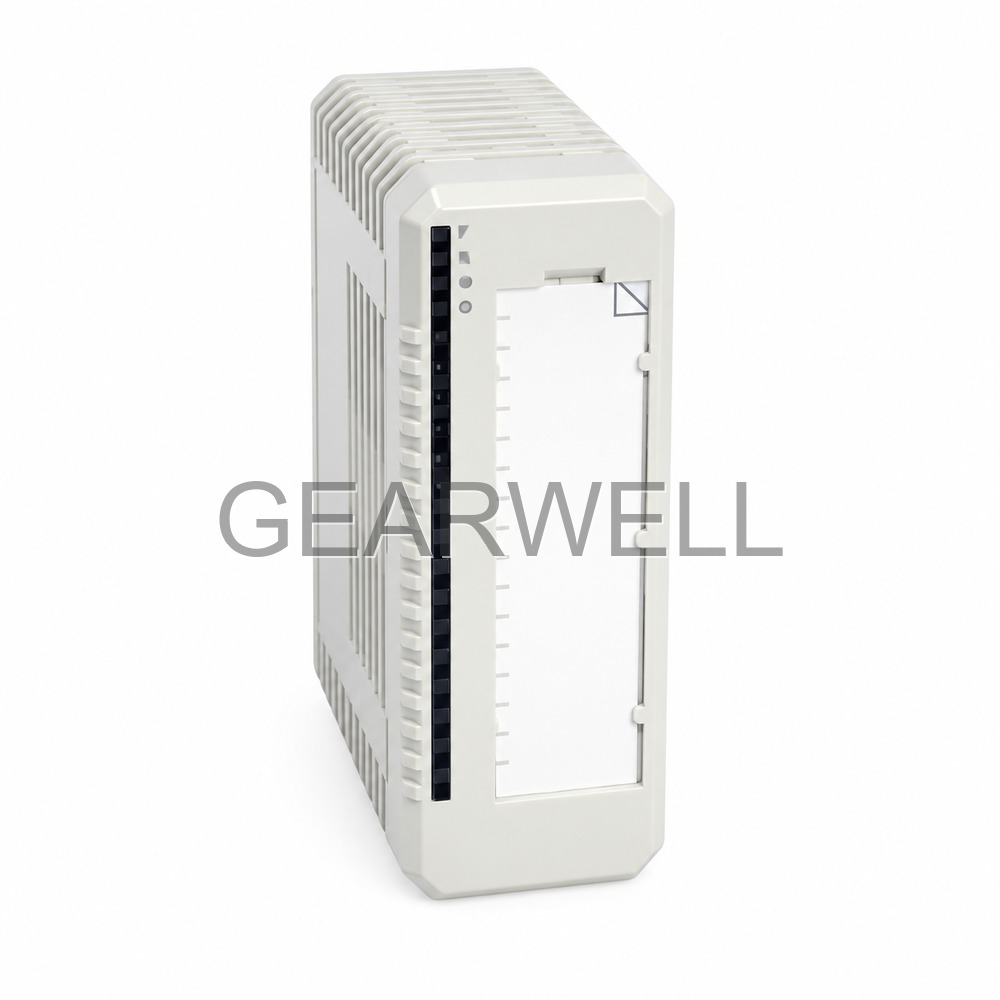

ABB AO820 S800 Analog Output Module
- Brand
- ABB
- Model
- AO820
- GEARWELL SKU
- GWP-000006619
- Category
- PLCs & I/O
Key specifications
- Channels
- 4
- Mechanics
- S800
- Output type
- Bipolar analog output
- Current ranges
- -20 mA...+20 mA; 0...20 mA; 4...20 mA
- Voltage ranges
- -10 V...+10 V; 0...10 V; 2...10 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB AO820 is an S800 I/O analog output module with individually galvanic isolated channels and open circuit detection: 4 bipolar channels with separate returns, ±0(2)-10 V or ±0(4)-20 mA, 12 bits + sign, load max 550 Ω (current) or ≥2 kΩ (voltage), short-circuit-proof. S800 I/O runs on 24 V d.c. (19.2 - 30 V), is rated IP20 and +5 to +55 °C operating, and takes up to 24 I/O modules per I/O station.
Technical reference
| Product name | ABB AO820 S800 Analog Output Module |
|---|---|
| Brand | ABB |
| Model | AO820 |
| Category | PLCs & I/O |
| Channels | 4 |
| Mechanics | S800 |
| Output type | Bipolar analog output |
| Current ranges | -20 mA...+20 mA; 0...20 mA; 4...20 mA |
| Voltage ranges | -10 V...+10 V; 0...10 V; 2...10 V |
