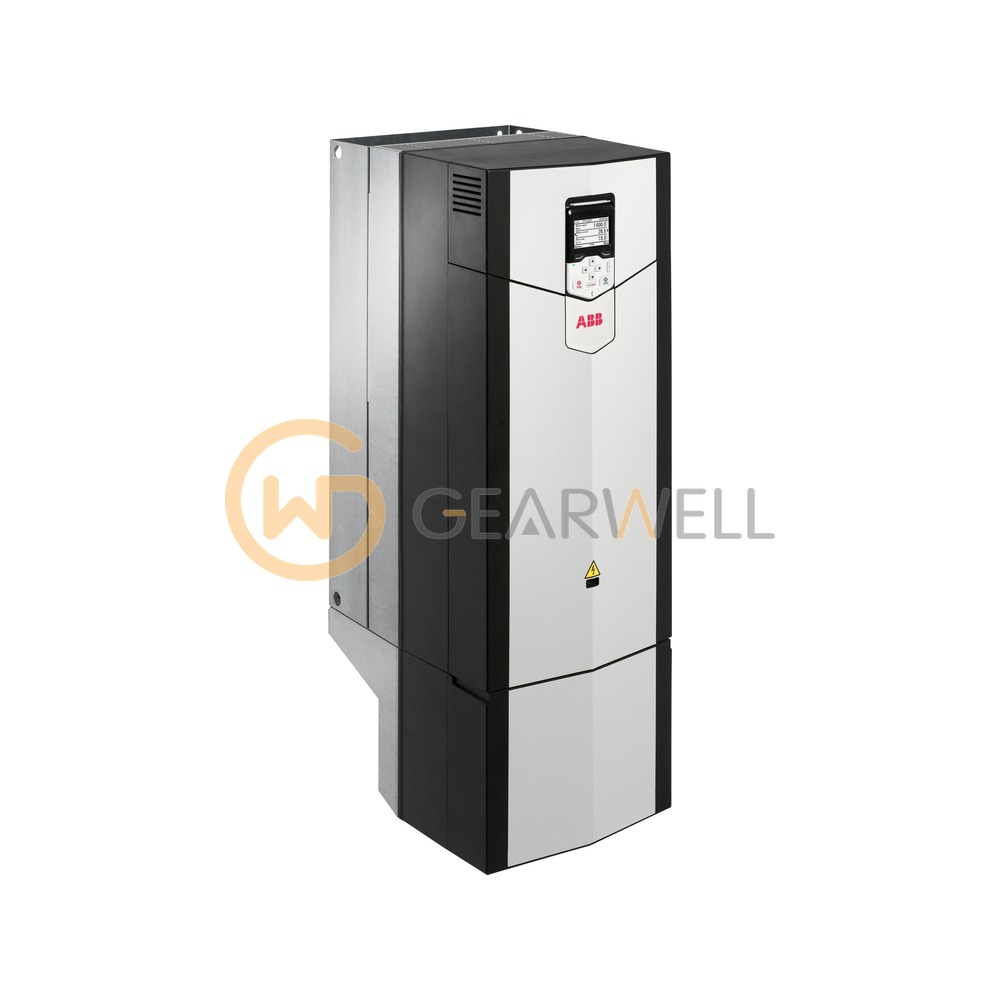

ABB ACS880-01-240A-5+D150+N5050+N8015 Wall-mounted single drive
- Brand
- ABB
- Model
- ACS880-01-240A-5+D150+N5050+N8015
- GEARWELL SKU
- GWP-000014779
- Category
- Variable Frequency Drives
Key specifications
- Net weight
- 68 kg
- Input voltage
- 380 ... 500 V
- Degree of protection
- IP21
- Dimensions (H x W x D)
- 965 x 300 x 386 mm
- Output power, normal use (Pn)
- 132 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS880-01-240A-5+D150+N5050+N8015 is an ACS880-01-240A-5 wall-mounted drive, frame R8, for UN = 500 V (range 380 to 500 V): IN 240 A, I MAX 350 A, PN 132 kW; light overload 228 A / 132 kW and heavy-duty 180 A / 110 kW, heat dissipation 2912 W and airflow 550 m3/h. Option +D150 adds the brake chopper (resistor SAFUR200F500 in ABB's table) and +N5050 the application control program for crane; the last option code in the type designation is not explained in the ACS880 catalog, so confirm it on the nameplate.
Technical reference
| Product name | ABB ACS880-01-240A-5+D150+N5050+N8015 Wall-mounted single drive |
|---|---|
| Brand | ABB |
| Model | ACS880-01-240A-5+D150+N5050+N8015 |
| Category | Variable Frequency Drives |
| Net weight | 68 kg |
| Input voltage | 380 ... 500 V |
| Degree of protection | IP21 |
| Dimensions (H x W x D) | 965 x 300 x 386 mm |
| Output power, normal use (Pn) | 132 kW |
| Output current, normal use (In) | 240 A |
| Output current, heavy duty (IHD) | 180 A |
