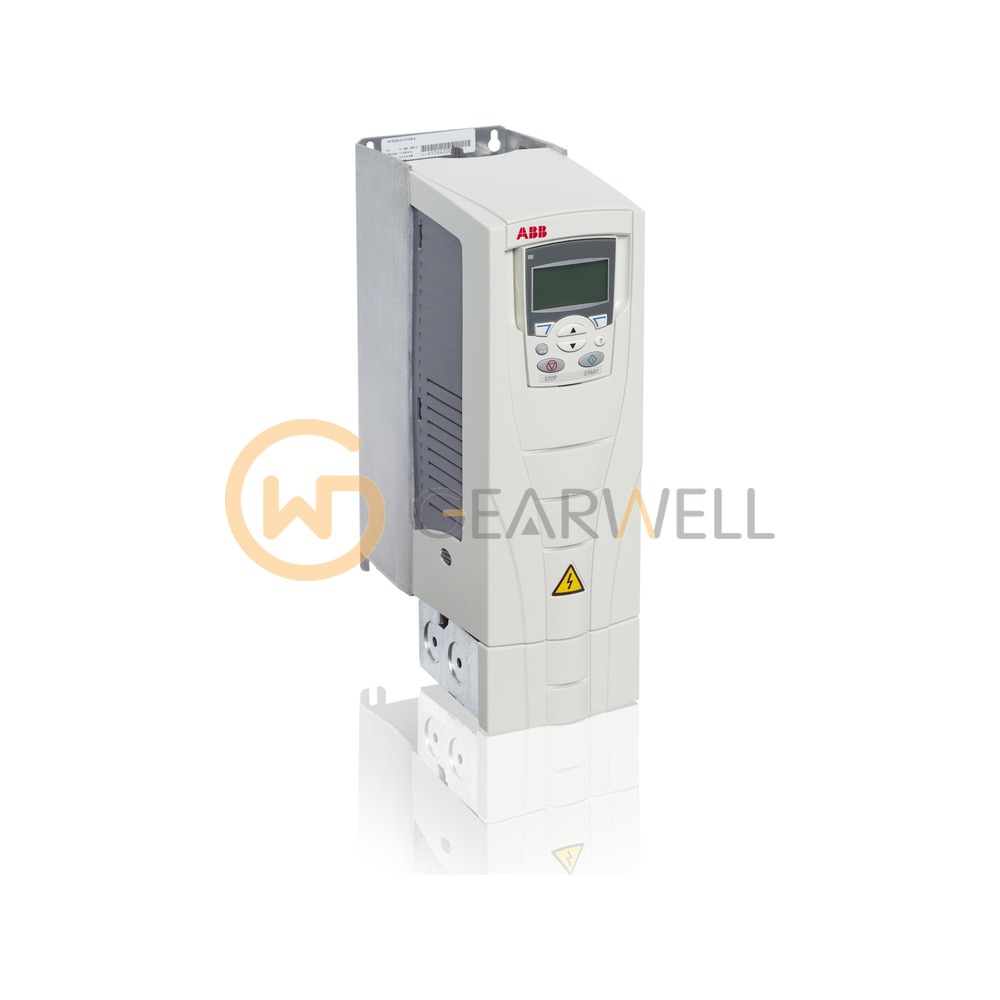

ABB ACS550-01-03A3-4 ACS550 Wall-mounted AC Drive
- Brand
- ABB
- Model
- ACS550-01-03A3-4
- GEARWELL SKU
- GWP-000007729
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R1
- Net weight
- 6.17 kg
- Product ID
- 3AUA0000003385-D
- Degree of protection
- IP21
- Output power (normal use)
- 1.1 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS550-01-03A3-4 is an ACS550 AC drive for 380–480 V three-phase supplies, rated 1.1 kW in normal use and 0.75 kW in heavy-duty use, with 3.3 A continuous output current in normal use and 2.4 A in heavy-duty use, in frame R1. The 01 in the type code means setup and parts for IEC installation and compliance. The standard enclosure is IP21 / UL Type 1, with IP54 / UL Type 12 available as option +B055, and control panels and fieldbus adapters are added as plus codes. A brake chopper is built in as standard in frames R1 and R2, which includes this drive.
Technical reference
| Product name | ABB ACS550-01-03A3-4 ACS550 Wall-mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS550-01-03A3-4 |
| Category | Variable Frequency Drives |
| Frame size | R1 |
| Net weight | 6.17 kg |
| Product ID | 3AUA0000003385-D |
| Degree of protection | IP21 |
| Output power (normal use) | 1.1 kW |
| Output current (normal use) | 3.3 A |
