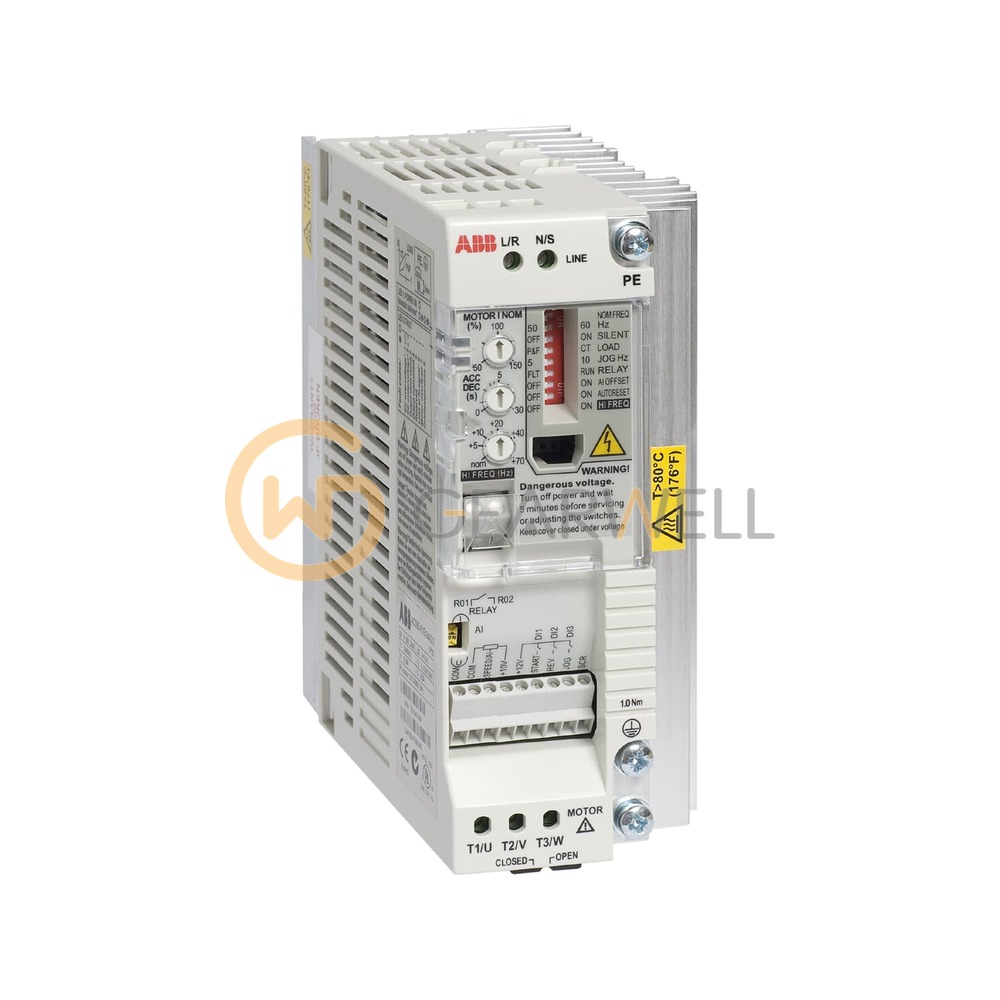

ABB ACS55-01E-09A8-2 Micro AC Drive
- Brand
- ABB
- Model
- ACS55-01E-09A8-2
- GEARWELL SKU
- GWP-000011202
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- B1
- Input phases
- 1-phase
- Mounting type
- Module for cabinet building
- ABB product ID
- 68878373
- Input frequency
- 50 /60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS55-01E-09A8-2 is an ACS55 micro drive with built-in EMC filter for a 1-phase AC supply of 200/240 V, +10/-15% and 3-phase output 200/240 V: 2.2 kW (3 hp), nominal output current 9.8 A, maximum 14.7 A, input current 22 A with a 32 A gG fuse. It is frame D with a cooling requirement of 26 m3/h, 226 x 70 x 159 mm (H1 x W x D) and weighs 1.7 kg.
Technical reference
| Product name | ABB ACS55-01E-09A8-2 Micro AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS55-01E-09A8-2 |
| Category | Variable Frequency Drives |
| Frame size | B1 |
| Input phases | 1-phase |
| Mounting type | Module for cabinet building |
| ABB product ID | 68878373 |
| Input frequency | 50 /60 Hz |
| Input voltage Uin | 200 ... 240 V |
| Degree of protection | IP20 |
| Dimensions (H x W x D) | 226 x 70 x 159 mm |
| Rated output power Pn | 2.2 kW |
| Rated output current In | 9.8 A |
