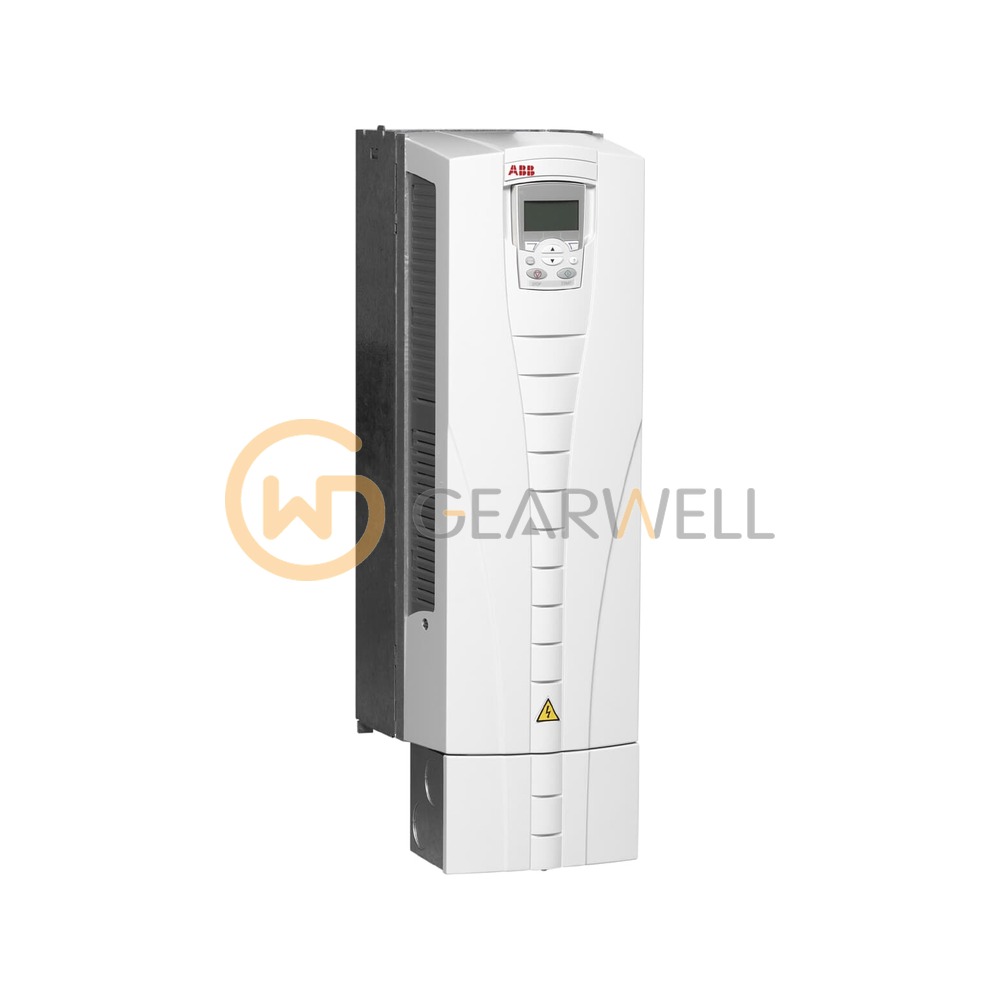

ABB ACS550-01-072A-4 ACS550 Wall-mounted AC Drive
- Brand
- ABB
- Model
- ACS550-01-072A-4
- GEARWELL SKU
- GWP-000007730
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R4
- Net weight
- 26 kg
- Product ID
- 3AUA0000002547-D
- Degree of protection
- IP21
- Output power (normal use)
- 37 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS550-01-072A-4 is an ACS550 AC drive for 380–480 V three-phase supplies, rated 37 kW in normal use and 30 kW in heavy-duty use, with 72 A continuous output current in normal use and 59 A in heavy-duty use, in frame R4. The 01 in the type code means setup and parts for IEC installation and compliance. The standard enclosure is IP21 / UL Type 1, with IP54 / UL Type 12 available as option +B055, and control panels and fieldbus adapters are added as plus codes.
Technical reference
| Product name | ABB ACS550-01-072A-4 ACS550 Wall-mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS550-01-072A-4 |
| Category | Variable Frequency Drives |
| Frame size | R4 |
| Net weight | 26 kg |
| Product ID | 3AUA0000002547-D |
| Degree of protection | IP21 |
| Output power (normal use) | 37 kW |
| Output current (normal use) | 72 A |
